CALT 15-17m³/min Flow, 14-18bar Pressure, All-terrain Move, 24h Stable Running Diesel Portable Compressor
Built to dominate the most challenging environments, the AIRERA diesel portable air compressor delivers elite performance where precision and power meet. Matching a massive 15-17m³/min flow with a commanding 14-18bar high-pressure range, this heavy-duty system is the ultimate power source for deep-hole water well drilling, geothermal exploration, and high-efficiency sandblasting.
Equipped with a rugged all-terrain mobile chassis, it effortlessly traverses deep mining pits, muddy oilfields, and remote mountain sites. Thanks to AIRERA’s advanced thermal management and heavy-duty engineering, it guarantees 24/7 continuous, stable running under maximum load without power drop. Choose AIRERA to accelerate your project timeline and secure unmatched field efficiency.
Key Features:

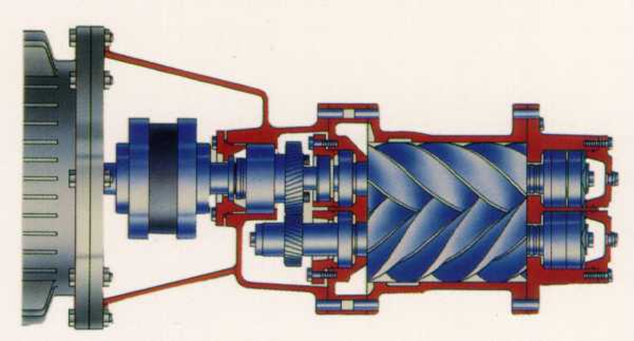

- Transmission mechanism
The combination of gear transmission and coupling transmission has high efficiency, safety and reliability, and long service life.The helical gear transmission compensates the axial thrust by 30%, which further prolongs the life of the screw.The diesel engine (motor) is connected with the flange of the main screw machine to ensure the permanent alignment of the drive system.
- Air filtration system
Three-stage air filtration, including cyclone, coarse filtration and safe filtration, is especially suitable for harsh environments such as dusty fields.99.99% of the particles above 3μ were removed.The filter element has large surface area, imported filter paper, long service life and small pressure drop. Located in the cold room area, optimize the performance of the unit.Enlarged 20% air filtering system for better performance.
- Shock absorption system
Vibration reduction of main engine: shock absorber.Axle damping: damping rod.Double vibration reduction makes the machine run more smoothly.
| ITEM | UNIT | MODEL CALT 15/18-17/14K |
|---|---|---|
| Air capacity | m³/min | 15/17 |
| Working pressure | MPa | 1.8/1.4 |
| Weight | kg | 2500 |
| L×W×H | mm |
3300×1520×2314 |
| Type No.× Qty | 6.50-16×4 | |
| Diesel engine | ||
| Model | QSB5.9-C210-30 | |
| Type | Vertical, in-line, water-cooled | |
| Sunction | Turbo charger | |
| Dia. of cylinder×Journey×amount | 102×120×6 | |
| Displacement L | 5.9 | |
| Rated speed | r/min | 2200 |
| Idle speed | r/min | 1400 |
| Rated Power | kW(HP) | 154(210) |
| Engine lubricant capacity | L | 17.8 |
| Diesel capacity | L | 190 |
| Battery | V | 24 |
| Compressor | ||
| Pressure stage | 2 | |
| Compressor oil capacity | L | 48 |
| Amount size×Qty |
G11/2×1,G3/4×1 |
|
| Notice | CA: Screw compressor, LT:Portable ,All the models could be customized into skid-mounted type. |
It is engineered specifically for off-road survival. The chassis features a heavily reinforced steel towbar and oversized, high-ply-rating off-road tires. With its high ground clearance, the AIRERA unit easily clears boulders, ruts, and steep inclines common in remote mining pits and mountainous terrains without scraping the underbody.
