CALT 18-19m³/min Flow, 17-20bar Pressure, All-terrain Move, 24h Stable Running Diesel Portable Compressor
Discover the ultimate power in mobile air tech with the AIRERA Diesel Portable Compressor. Engineered for relentless performance, it delivers a massive 18-19m³/min flow rate at 17-20bar high pressure, effortlessly handling deep-hole drilling, sandblasting, and pipeline testing.
Built with an ultra-rugged chassis and high-clearance wheels, its all-terrain move design ensures easy maneuvering across mud, rocks, and steep mountain worksites. At its core lies a world-class heavy-duty diesel engine, optimized for 24h stable continuous running without overheating or power drops.
Choose AIRERA to slash your downtime and dominate the toughest industrial landscapes.
Key Features:

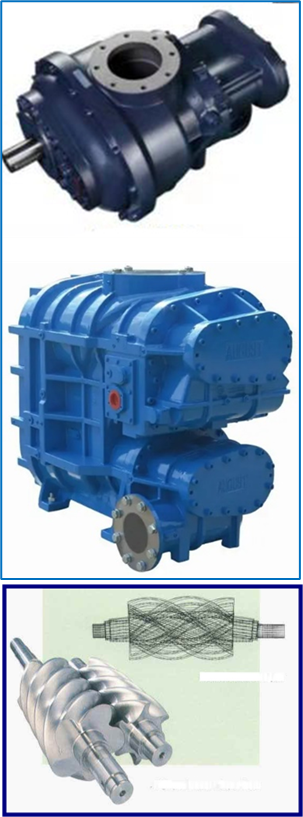

- Air end
The rotor is made of German processing equipment-to ensure the dimensional accuracy of parts.The bearing adopts the world brand SKF--- prolong the service life.High-load-resistant design-working pressure can reach 1.6Mpa.
- Air filtration system
Three-stage air filtration, including cyclone, coarse filtration and safe filtration, is especially suitable for harsh environments such as dusty fields.99.99% of the particles above 3μ were removed.The filter element has large surface area, imported filter paper, long service life and small pressure drop. Located in the cold room area, optimize the performance of the unit.Enlarged 20% air filtering system for better performance.
- Shock absorption system
Vibration reduction of main engine: shock absorber.Axle damping: damping rod.Double vibration reduction makes the machine run more smoothly.
| ITEM | UNIT | MODEL CALT18/20K-19/17K |
|---|---|---|
| Air capacity | m³/min | 18/19 |
| Working pressure | MPa | 2.0/1.7 |
| Weight | kg | 4000 |
| L×W×H | mm |
3764×1800×2213 |
| Type No.× Qty | 7.50-16×4 | |
| Diesel engine | ||
| Model | QSC8.3-C260-30 | |
| Type | Vertical, in-line, water-cooled | |
| Sunction | Turbo charger | |
| Dia. of cylinder×Journey×amount | 114×135×6 | |
| Displacement L | 8.3 | |
| Rated speed | r/min | 1800 |
| Idle speed | r/min | 1400 |
| Rated Power | kW(HP) | 194(260) |
| Engine lubricant capacity | L | 21.9 |
| Diesel capacity | L | 360 |
| Battery | V | 24 |
| Compressor | ||
| Pressure stage | 2 | |
| Compressor oil capacity | L | 78 |
| Amount size×Qty |
G2×1,G3/4×1 |
|
| Notice | CA: Screw compressor, LT:Portable ,All the models could be customized into skid-mounted type. |
The compressor features an advanced electronic fuel injection engine and an intelligent step-less capacity control system. This system automatically adjusts the engine speed and air intake valve based on actual air demand, significantly reducing fuel consumption during idling and partial-load operations to maximize ROI for fleet managers.
