CALT 30/35m³/min Flow, 35/25bar Pressure, All-terrain Move, 24h Stable Running Diesel Portable Compressor
Dominate your toughest drilling and mining sites with the AIRERA CALT series. This all-terrain powerhouse delivers a massive 30-35 m³/min flow and up to 35bar high pressure, ensuring peak performance in extreme environments. Engineered with a rugged mobile chassis and an advanced cooling system, it guarantees 24-hour stable, non-stop running. Choose AIRERA to eliminate downtime and unlock maximum productivity.
- Cooling system
The cooler with large heat dissipation area is designed, which is suitable for harsh environments such as high temperature and high humidity in the field.Enlarged 30% cooling system to keep 25% cooling performance than old models for long-term working in the high-temp ambient. Environment. Unique fin and channel design, good heat dissipation, low pressure and easy cleaning.Low speed and low noise axial fan, low running noise; High temperature resistance and long service life.Horizontal exhaust to avoid hot air backflow and optimize cooling effect.
- Shock absorption system
Vibration reduction of main engine: shock absorber.Axle damping: damping rod.Double vibration reduction makes the machine run more smoothly.
- Air end
The rotor is made of German processing equipment-to ensure the dimensional accuracy of parts.The bearing adopts the world brand SKF--- prolong the service life.High-load-resistant design-working pressure can reach 1.6Mpa.
| ITEM | UNIT | MODEL CALT 30/35K-35/25K |
|---|---|---|
| Air capacity | m³/min | 30/35 |
| Working pressure | MPa | 3.5/2.5 |
| Weight | kg | 7200 |
| L×W×H | mm |
4573×2160×2661 |
| Type No.× Qty | 8.25-16×4 | |

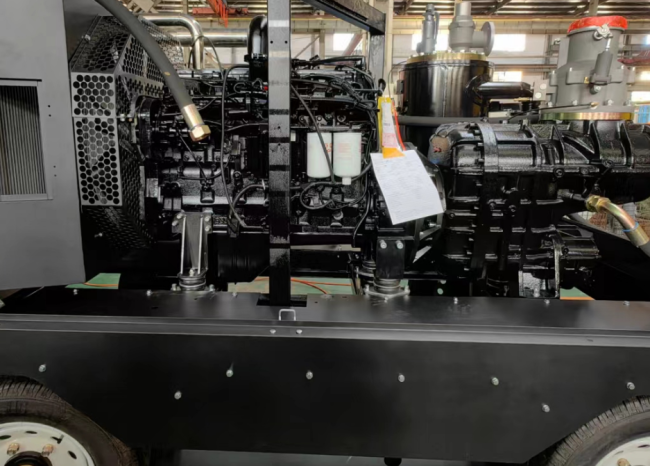

| Diesel engine | ||
| Model | QSZ13-C550-30 | |
| Type | Vertical, in-line, water-cooled | |
| Sunction | Turbo charger | |
| Dia. of cylinder×Journey×amount | 130×163×6 | |
| Displacement L | 13 | |
| Rated speed | r/min | 1800 |
| Idle speed | r/min | 1300 |
| Rated Power | kW(HP) | 410(550) |
| Engine lubricant capacity | L | 35 |
| Diesel capacity | L | 755 |
| Battery | V | 24 |
| Compressor | ||
| Pressure stage | 2 | |
| Compressor oil capacity | L | 120 |
| Amount size×Qty |
G2×1,G3/4×1 |
|
| Notice | CA: Screw compressor, LT:Portable ,All the models could be customized into skid-mounted type. |
The CALT chassis features a reinforced dual-axle design equipped with heavy-duty off-road tires and an independent torsion bar suspension system. This industrial-grade setups dramatically dampens shocks and prevents frame deformation during transit. The integrated high-reliability braking system and adjustable tow-hitch also allow the compressor to be towed safely by heavy trucks across rugged, unpaved mining tracks and steep gradients.
