VSD Air-Cooled 15kW Two-Stage Oil-Injected Air Compressor | Wide-Pressure Range (0.7–1.3 MPa) with Inverter Control, Low Noise, and Stable Operation
The AIRERA 15kW two-stage oil-injected screw air compressor is engineered for modern industries demanding peak energy efficiency and maximum reliability. Featuring advanced two-stage compression technology, it significantly reduces internal leakage and maximizes volumetric efficiency. Equipped with a high-performance Variable Speed Drive (VSD) inverter control system, it delivers precise pressure regulation across a wide range of 0.7–1.3 MPa, perfectly matching fluctuating demands to achieve profound energy savings. Designed with an ultra-low noise enclosure and smart monitoring, this unit ensures stable, continuous 24/7 operation while maintaining a quiet workshop environment—making it the ideal choice to lower your Total Cost of Ownership (TCO).
-
Industry-leading air host
The air compression chamber is completely separated from the oil chamber. The air side adopts a non-abrasive sealing system with a spring-loaded metal ring, and the lubricating oil side adopts a non-abrasive sealing system with a copper labyrinth seal. The two do not contact;
-

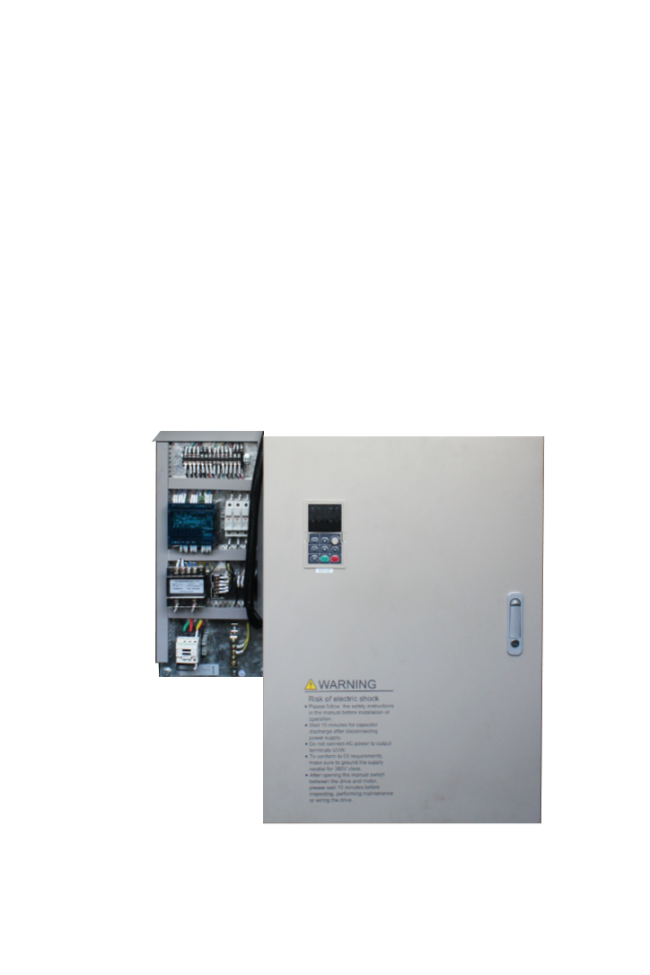

Advanced and reliable electronic control system
Large-size color LCD touch screen, with a good human-machine communication interface, the touch screen has anti-mistouch and sleep functions;Completely monitor various parameters of the machine, including voltage detection, three-phase unbalance detection, overvoltage, overtemperature, etc., without special supervision;configure the Internet of Things, you can check the operating status of the unit on the mobile phone.Independent air duct design, suitable for various working conditions.
- Independent air intake system
Independent air intake ensures that the intake air temperature is equal to the ambient temperature. Large-capacity air filter is used to achieve better filtering effect, lower intake pressure loss, and energy saving and high efficiency. Maintenance and replacement are more convenient.
| ITEM | UNIT | MODEL LGCD-15II VP |
|---|---|---|
| Air capacity | m³/min | 1.10`2.77|1.08-2.76 |
| Working pressure | MPa | 0.7~1.3 |
| Compressor type | Oil inject dual stage screw compressor | |
| Cooling type |
Air cooling |
|
| Driven type | Direct driven | |
| Inlet status Temperature | ℃ | ≤45 |
| Inlet status Pressure | MPa | Atmospheric pressure |
| Inlet status Relative humidity | ≤90% | |
| Noise Level | dB(A) | ≤70 |
| Residual oil content | ppm | ≤2 |
| Drive rotor speed | rpm | 1500 |
| Compressed air outlet temperature | ℃ | Ambient temperature＋10 |
| Cooling air flow | m3/hr | 6300 |
| Control mode | Intelligent controller | |
| Safety valve set pressure | MPa | 0.77-1.43 |
| Lubricating oil volume | L | 10 |
| Lubricating oil brand | ROTORCOMP | |
| Compressed air outlet connection | G1 | |
| Dimension L | mm | 1260 |
| Dimension W | mm | 700 |
| Dimension H | mm | 1200 |
| Net Weight | kg | 370 |
| Motor Model | YPM-132M2-6 | |
| Motor Speed | rpm | 1500 |
| Motor Rated Power | KW | 15 |
| Motor Service factor | 1.2 | |
| Motor Protection type | IP55 | |
| Motor Efficiency | IE3 | |
| Motor Startup mode | Frequency conversion starting | |
| Motor Voltage | V | 380(Special on request) |
| Motor Frequency | Hz | 60-150 |
| Motor Rated current | A | 29.4 |
| Motor Weight of motor | kg | 125 |
When a single-stage compressor pushes for high pressure (e.g., above 1.0 MPa), an excessive pressure ratio leads to severe internal backflow leakage and overheating. AIRERA’s two-stage compression distributes the total pressure ratio across two pairs of rotors working in series, with inter-cooling in between. This significantly minimizes internal leakage and maximizes volumetric efficiency, delivering 10%–15% more air output than a single-stage model at the same power input. This drastically lowers the specific power consumption, saving you a massive amount on electricity bills in the long run.
Oil-injected screw technology is currently the most mature and cost-effective solution in the industry, as the oil provides exceptional sealing, lubrication, and cooling, which greatly extends the equipment lifespan. To ensure air quality, AIRERA is equipped with a high-efficiency 3-stage oil-gas separation system, keeping the residual oil mist content to an absolute minimum (typically $le 3text{ppm}$). If your applications require high-purity air (such as precision instruments or spray painting), simply adding our line filters and a refrigerated air dryer downstream will easily deliver ISO-certified, top-quality clean air.
