VSD Air-Cooled 18.5kW Two-Stage Oil-Injected Air Compressor | Wide-Pressure Range (0.7–1.3 MPa) with Inverter Control, Low Noise, and Stable Operation
The AIRERA 18.5kW two-stage oil-injected screw air compressor is meticulously engineered for modern industrial production lines demanding high duty cycles and premium energy efficiency. By integrating industry-leading two-stage compression technology, the unit optimizes pressure ratios to significantly minimize internal backflow leakage, dramatically boosting volumetric efficiency. Equipped with a cutting-edge Variable Speed Drive (VSD) inverter control system, it delivers precise, digital pressure regulation across a wide range of 0.7–1.3 MPa, perfectly matching fluctuating factory air demands and eliminating idling energy waste to achieve overall power savings of over 30%. Featuring a fully enclosed, heavy-duty sound-dampening cabinet and an intelligent monitoring system, this compressor ensures stable, continuous 24/7 air supply while maintaining an ultra-low noise, eco-friendly workspace—making it the ultimate core power solution for lowering operational costs and increasing reliability.
-

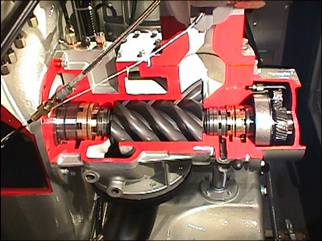

Industry-leading air host
The air compression chamber is completely separated from the oil chamber. The air side adopts a non-abrasive sealing system with a spring-loaded metal ring, and the lubricating oil side adopts a non-abrasive sealing system with a copper labyrinth seal. The two do not contact;
-
Expanded filtering system design
Multiple air filter designs, more durable and stop much more particles outside, protect inlet system of compressor for long time working outdoor & indoor environment.
- Independent air intake system
Independent air intake ensures that the intake air temperature is equal to the ambient temperature. Large-capacity air filter is used to achieve better filtering effect, lower intake pressure loss, and energy saving and high efficiency. Maintenance and replacement are more convenient.
| ITEM | UNIT | MODEL AGCD-18.5II VP |
|---|---|---|
| Air capacity | m³/min | 1.39`3.47|1.38-3.45|1.09`2.72|1.04`2.6 |
| Working pressure | MPa | 0.7~1.3 |
| Compressor type | Oil inject dual stage screw compressor | |
| Cooling type |
Air cooling |
|
| Driven type | Direct driven | |
| Inlet status Temperature | ℃ | ≤45 |
| Inlet status Pressure | MPa | Atmospheric pressure |
| Inlet status Relative humidity | ≤90% | |
| Noise Level | dB(A) | ≤70 |
| Residual oil content | ppm | ≤2 |
| Drive rotor speed | rpm | 1500 |
| Compressed air outlet temperature | ℃ | Ambient temperature＋10 |
| Cooling air flow | m3/hr | 7200 |
| Control mode | Intelligent controller | |
| Safety valve set pressure | MPa | 0.77-1.43 |
| Lubricating oil volume | L | 15 |
| Lubricating oil brand | ROTORCOMP | |
| Compressed air outlet connection | G1 | |
| Dimension L | mm | 1400 |
| Dimension W | mm | 850 |
| Dimension H | mm | 1200 |
| Net Weight | kg | 405 |
| Motor Model | YPM-160L-6 | |
| Motor Speed | rpm | 1500 |
| Motor Rated Power | KW | 18.5 |
| Motor Service factor | 1.2 | |
| Motor Protection type | IP55 | |
| Motor Efficiency | IE3 | |
| Motor Startup mode | Frequency conversion starting | |
| Motor Voltage | V | 380(Special on request) |
| Motor Frequency | Hz | 60-150 |
| Motor Rated current | A | 35.5 |
| Motor Weight of motor | kg | 145 |
The 18.5kW range is the core power workhorse for small to medium factories. Traditional single-stage compression suffers from severe gas backflow leakage at higher discharge pressures due to an excessive pressure ratio. AIRERA's two-stage compression divides the total pressure ratio across two stages with inter-cooling, drastically reducing internal leakage. At the same 18.5kW power input, its air output is 10%–15% higher than a standard single-stage compressor. This means you get more compressed air or complete the same work in less time, saving a massive amount on electricity bills over long-term operation.
First, two-stage compression features a lower pressure ratio per stage, leading to evenly balanced rotor loads and naturally fewer mechanical vibrations than single-stage units. Secondly, AIRERA utilizes a fully enclosed, heavy-duty sound-dampening cabinet design to block mechanical and airflow noise at the source. For stability, our optimized internal airflow and premium oil-injected cooling system ensure the equipment maintains ideal working temperatures, preventing high-temperature tripping even during 24/7 continuous high-intensity, heavy-duty operations in hot summer environments.
