132 kW Screw Air Compressor | Two-stage compression + IE3 energy efficiency—the top choice for industrial air applications
The AIRERA 132 kW two-stage screw air compressor is a powerhouse engineered exclusively for large-scale manufacturing hubs. Tailored to tackle the heavy-industry challenges of relentless 24/7 operations and massive high-pressure air demands, this model optimizes the compression path through its advanced two-stage air end, achieving stunning air delivery while drastically curbing energy losses under high-pressure conditions.
Paired with a core IE3 peak-efficiency motor, it demonstrates unparalleled power-saving advantages during prolonged full-load runs, sustaining the entire facility's air network at a lower cost per cubic meter. Its exceptional anti-overload capability and wear-resistant design ensure a non-stop, torrential airflow—making it a vital asset for heavy industry to achieve low-carbon, high-yield production.
-

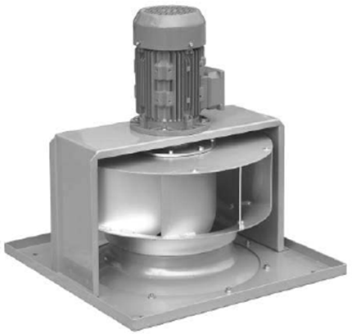

Silent centrifugal fan
Adopts the advanced centrifugal fan, which has large cooling air volume, low noise, stable and uniform air pressure, which makes full use of the heat dissipation area of the cooler, and greatly reduces the noise of the air compressor by 6-8dB.
-
Industry-leading air host
The air compression chamber is completely separated from the oil chamber. The air side adopts a non-abrasive sealing system with a spring-loaded metal ring, and the lubricating oil side adopts a non-abrasive sealing system with a copper labyrinth seal. The two do not contact.
- Independent air intake system
Independent air intake ensures that the intake air temperature is equal to the ambient temperature. Large-capacity air filter is used to achieve better filtering effect, lower intake pressure loss, and energy saving and high efficiency. Maintenance and replacement are more convenient.
| ITEM | UNIT | MODEL AGCD-132II VP |
|---|---|---|
| Air capacity | m³/min | 10.76-26.90|10.60-26.50|9.60-24.00|7.80-19.50 |
| Working pressure | MPa | 0.7~1.3 |
| Compressor type | Oil inject dual stage screw compressor | |
| Cooling type |
Air cooling |
|
| Driven type | Direct driven | |
| Inlet status Temperature | ℃ | ≤45 |
| Inlet status Pressure | MPa | Atmospheric pressure |
| Inlet status Relative humidity | ≤90% | |
| Noise Level | dB(A) | ≤79 |
| Residual oil content | ppm | ≤2 |
| Drive rotor speed | rpm | 1500 |
| Compressed air outlet temperature | ℃ | Ambient temperature＋10 |
| Cooling air flow | m3/hr | 14200 |
| Control mode | Intelligent controller | |
| Safety valve set pressure | MPa | 0.77-1.43 |
| Lubricating oil volume | L | 70 |
| Lubricating oil brand | ROTORCOMP | |
| Compressed air outlet connection | G2-1/2 | |
| Dimension L | mm | 2540 |
| Dimension W | mm | 1640 |
| Dimension H | mm | 1800 |
| Net Weight | kg | 2200 |
| Motor Model | YPM-280M2-8 | |
| Motor Speed | rpm | 1500 |
| Motor Rated Power | KW | 132 |
| Motor Service factor | 1.2 | |
| Motor Protection type | IP55 | |
| Motor Efficiency | IE3 | |
| Motor Startup mode | Frequency conversion starting | |
| Motor Voltage | V | 380(Special on request) |
| Motor Frequency | Hz | 80-200 |
| Motor Rated current | A | 242 |
| Motor Weight of motor | kg | 1010 |
The most direct manifestation is a drastic reduction in electricity bills and an incredibly short ROI period. The 132 kW model delivers a massive air volume. Under prolonged full-load operations, the combination of two-stage compression and an IE3 motor yields a comprehensive energy-saving efficiency of 15% or higher. This translates to saving hundreds of thousands of yuan in electricity annually, allowing businesses to fully recover the machine's purchase cost through energy savings in less than two years.
This model features a comprehensive heavy-duty hardware specification upgrade. First, two-stage compression reduces the axial and radial forces on the rotors of each stage, fundamentally eliminating bearing burnout caused by prolonged overloads. Second, the IE3 motor features a strict IP55 protection rating and Class F insulation, offering superior anti-overload capabilities. Furthermore, we have expanded the heat exchange surface area of the cooler, ensuring optimal oil and air temperatures even in extreme environments, delivering rock-solid 24/7 continuous operation.
