AGCD-200D II B VP Screw Air Compressor, Specifically Designed for Factory Energy-Saving Retrofits; Two-Stage Compression Saves 30%+ on Electricity Costs
The AIRERA AGCD-200D II B VP screw air compressor is specifically engineered for eco-friendly and energy-saving factory retrofits. Utilizing industry-leading two-stage compression technology paired with an advanced variable speed drive (VSD) system, this model delivers energy efficiency that far exceeds standard metrics, slashing electricity costs by over 30% compared to conventional single-stage compressors. Built for heavy-duty industrial environments, its robust and reliable design ensures a continuous, stable supply of premium compressed air, making it the ultimate tool for upgrading legacy, high-consumption equipment and driving down operational costs.
-

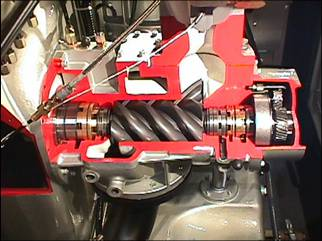

Industry-leading air host
The air compression chamber is completely separated from the oil chamber. The air side adopts a non-abrasive sealing system with a spring-loaded metal ring, and the lubricating oil side adopts a non-abrasive sealing system with a copper labyrinth seal. The two do not contact.
-
Efficient after cooler
The cooler adopts a new type of threaded finned tube shell-and-tube heat exchanger, and the compressed air goes inside the tube. The advantages are as follows: a. The compressed air goes through the tube, which improves the pressure bearing capacity compared with the outer finned tube.
- Independent air intake system
Independent air intake ensures that the intake air temperature is equal to the ambient temperature. Large-capacity air filter is used to achieve better filtering effect, lower intake pressure loss, and energy saving and high efficiency. Maintenance and replacement are more convenient.
| ITEM | UNIT | MODEL AGCD-200II VP |
|---|---|---|
| Air capacity | m³/min | 18.36-45. 90|18.12-45.30|15.76-39.40|13.96-34.90 |
| Working pressure | MPa | 0.7~1.3 |
| Compressor type | Oil inject dual stage screw compressor | |
| Cooling type |
Air cooling |
|
| Driven type | Direct driven | |
| Inlet status Temperature | ℃ | ≤45 |
| Inlet status Pressure | MPa | Atmospheric pressure |
| Inlet status Relative humidity | ≤90% | |
| Noise Level | dB(A) | ≤79 |
| Residual oil content | ppm | ≤2 |
| Drive rotor speed | rpm | 1500 |
| Compressed air outlet temperature | ℃ | Ambient temperature＋10 |
| Cooling air flow | m3/hr | 19200 |
| Control mode | Intelligent controller | |
| Safety valve set pressure | MPa | 0.77-1.43 |
| Lubricating oil volume | L | 110 |
| Lubricating oil brand | ROTORCOMP | |
| Compressed air outlet connection | DN80 | |
| Dimension L | mm | 3150 |
| Dimension W | mm | 1800 |
| Dimension H | mm | 2100 |
| Net Weight | kg | 3300 |
| Motor Model | YPM-315L1-8 | |
| Motor Speed | rpm | 1500 |
| Motor Rated Power | KW | 200 |
| Motor Service factor | 1.2 | |
| Motor Protection type | IP55 | |
| Motor Efficiency | IE3 | |
| Motor Startup mode | Frequency conversion starting | |
| Motor Voltage | V | 380(Special on request) |
| Motor Frequency | Hz | 80-200 |
| Motor Rated current | A | 405 |
| Motor Weight of motor | kg | 1610 |
The VSD controller features millisecond-level responsiveness, capturing micro-fluctuations in pipeline pressure and adjusting motor output to match actual consumption precisely. This highly dynamic balance ensures a constant supply pressure, eliminating the wasted power that conventional compressors generate through frequent loading and unloading during low-demand periods, which successfully maintains the 30%+ energy savings even under highly fluctuating operational conditions.
The R&D team utilized intensive integration and spatial optimization for internal components, reducing the overall footprint to an exceptional level without sacrificing cooling performance or maintenance access. This highly compact modular chassis allows factories to execute in-place equipment replacements within existing tight spaces without major civil engineering or equipment room expansions, drastically lowering front-end on-site construction costs and deployment difficulties for retrofit projects.
