16.5KW Integrated Soundproof Enclosed Scroll Air Compressor: The noise-reducing design ensures production operations are not disrupted
The AIRERA 16.5KW stands as a premier, fully enclosed, quiet scroll air compressor custom-engineered for high-load and large-demand clean workshops. Utilizing an advanced multi-scroll modular joint design, this flagship system perfectly marries its robust 16.5KW power with frictionless scroll technology to deliver a steady, uninterrupted supply of medical-grade high-purity clean air. Thanks to its fully enclosed, high-density acoustic canopy, it shatters the stereotype that high power entails high noise, running barely audibly. While effortlessly satisfying centralized, multi-workstation air demands for mid-to-large biotech manufacturing and core laboratories, it ensures the surrounding production environment remains completely quiet, fully empowering enterprises to achieve highly efficient, green, and noise-free digital production.
-

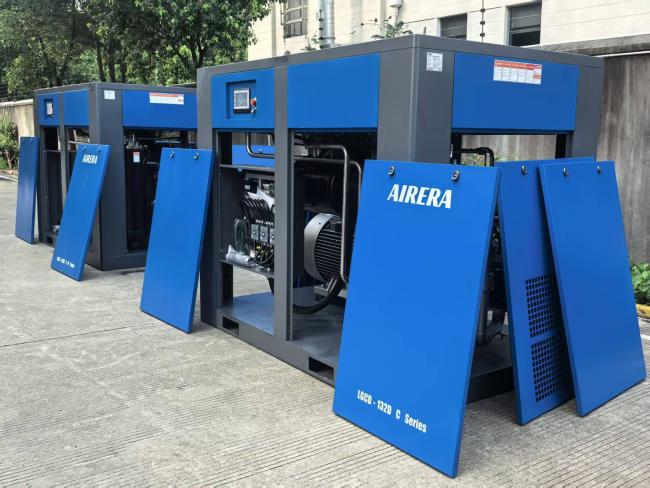

Easy to move out the elements
Good substitute of small oil free screw compressor with lower cost of maintenance, and more simple structure with energy-saving performance in food&beverage,pharmaceutical,automobile,medical&chemical,prescion and electronic industry.Advanced design for air cooling system better performance than other compressor 15-20%
-
Space saving and environmental protection
The products has compact structure, smaller size, with less occupation of the land, lower noise and vibration, it can be installed in any place where you need it, even in the production area can be used.
-
A Well-Designed Refrigeration System
Easy to adjust the belt tension,Scientific ventilation design,Clear assembly,Independent ,cooling fan,Separated cooling duct for each airend.,Heat exchanger with enlarged heat exchange area,Optional integrated air tank,Intelligent controller,IP55 high efficiency motor,Drawer type design is easy to do maintenance
| ITEM | UNIT | MODEL RC-D18/08-S1 |
|---|---|---|
| Air capacity | m³/min | 1.8 |
| Working pressure | MPa | 0.8 |
| Motor | Power(kw) | 16.5 |
| In/outlet | 3/4 | |
| Noise | dB(A) |
68 |
| Dimension | L×W×H in mm | 1250×760×1560 |
| Net Weight | kg | 630 |
As a high-power scroll compressor, how does the 16.5KW model achieve high-reliability air supply through "modular joint operation"?
The AIRERA 16.5KW integrates multiple high-efficiency oil-free scroll independent modules internally. The control system dynamically and intelligently decides how many modules to activate based on the actual air consumption at the terminal. The greatest benefit of this design is its built-in "fully automatic redundancy" feature; even if one module requires routine maintenance, the remaining modules seamlessly take over the air supply, guaranteeing zero downtime for mid-to-large biotech manufacturing workshops.
Facing heavy-duty, high-displacement air demands at 16.5KW, how does it shatter the conventional rule that "higher power means harsher noise"?
Traditional 16.5KW piston or screw compressors generate severe mechanical impacts and whines during operation, whereas AIRERA utilizes completely frictionless scroll technology, which inherently features extremely low individual noise. On top of that, the entire unit is jacketed in a heavy-duty, fully enclosed, high-density acoustic canopy that thoroughly seals and absorbs high-displacement aerodynamic micro-vibrations, making its operational sound barely audible and truly combining powerful air supply with extreme silence.
It achieves centralized digital management of "one machine supplying the entire line." Instead of placing small individual compressors next to every workstation or precision instrument, the 16.5KW high-displacement system provides stable, centralized air supply to dozens of workstations via clean piping. This not only eliminates scattered noise and heat sources inside laboratories but also drastically simplifies equipment inspections and consumables maintenance for operation and maintenance personnel.
