AGCD Economy Series—100Hp Oil-Injected Air-Cooled Screw Compressor
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
5-15 days
Brand:
AIRERA
Product Description
Product Advantages——AIRERA 75KW Oil-Injected Screw Air Compressor:
 |
 |
 |
| High‑efficiency Motor | Oil‑gas Separation System | German‑Designed Air End |
| Low noise, save much energy. | Easy‑replace separator, reliable separation efficiency. | Stable performance, long service life. |
Technical Specifications——AIRERA 75KW Oil-Injected Screw Air Compressor:
| ITEM | UNIT | MODEL AGCD-75 |
|---|---|---|
| Free air delivery | m³/min | 13.6~9.8 |
| Max. working pressure | MPa | 0.7~1.3 |
| Compressor type | Oil inject screw compressor | |
| Cooling type | Air cooling | |
| Driven type | Direct driven | |
| Inlet status - Temperature | ℃ | ≤45 |
| Inlet status - Pressure | MPa | Atmospheric pressure |
| Inlet status - Relative humidity | ≤90% | |
| Noise Level | dB(A) | ≤76 |
| Residual oil content | ppm | ≤2 |
| Drive rotor speed | rpm | 2970 |
| Compressed air outlet temperature | ℃ | Ambient temperature＋10 |
| Cooling air flow | m³/hr | 10200 |
| Control mode | Intelligent controller | |
| Safety valve set pressure | MPa | 0.77 ~ 1.43 |
| Lubricating oil volume | L | 50 |
| Compressed air outlet connection | G2 | |
| Dimension - L | mm | 1900 |
| Dimension - W | mm | 1250 |
| Dimension - H | mm | 1560 |
| Net Weight | kg | 1200 |
| Motor - Model | Y2250M2-2 | |
| Motor - Speed | rpm | 2970 |
| Motor - Rated Power | KW | 75 |
| Motor - Service factor | 1.2 | |
| Motor - Efficiency | IP55 | |
| Motor - Startup mode | Y-Δ starting | |
| Motor - Voltage | V | 380 (Special on request) |
| Motor - Frequency | Hz | 50 (Special on request) |
| Motor - Rated current | A | 139 |
| Motor - Weight of motor | kg | 515 |
Typical Use Cases——AIRERA 75KW Oil-Injected Screw Air Compressor:
 |
 |
 |

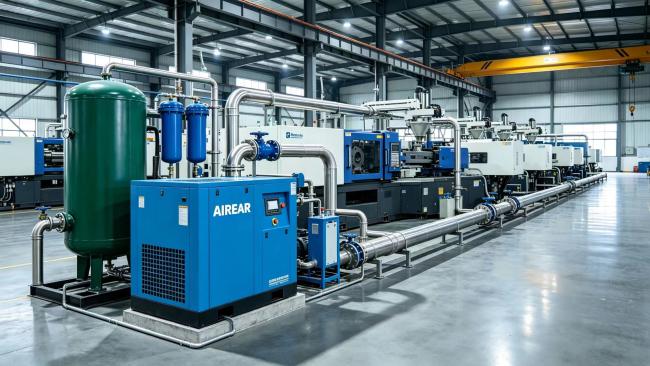

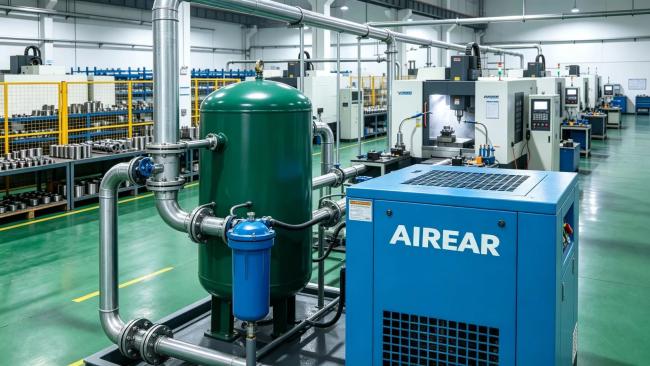

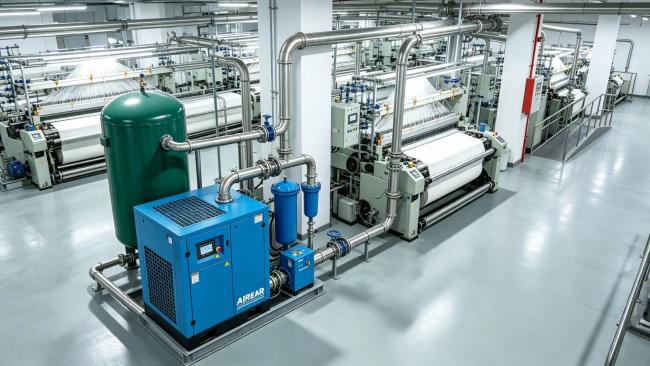

| Injection Molding Production | Metal Fabrication Workshop | Textile Manufacturing Plant |
| Stable compressed‑air supply for molds & robotic clamps | Reliable air power for CNC, clamping & part blowing‑off | Consistent clean air for loom pneumatic control systems |
