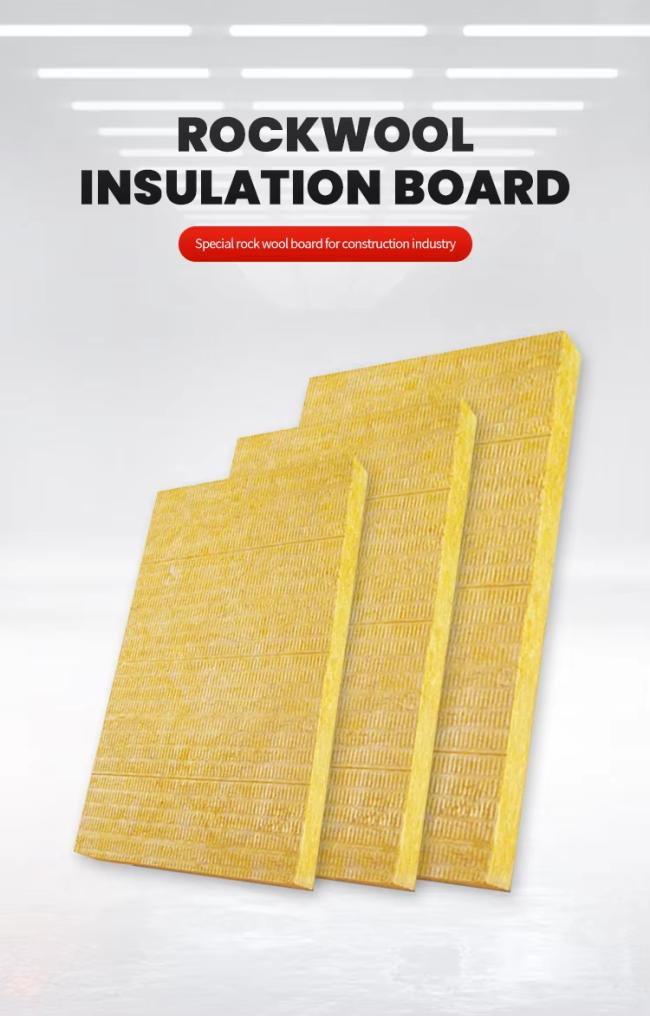

Fireproof Soundproof Rock Mineral Wool Board Thermal Insulation With Aluminum Foil

Price Negotiable
Price: 1.0-5.0 usd/pcs
MOQ: 10pcs
Delivery Time: 7 days
Brand: SUNWOOL
Product Description

Rock Mineral Wool High Quality Thermal Insulation Fireproof Soundproof  With Aluminum Foil For Wall Roof Ceiling Building Construction


External thermal insulation rock wool board is specially designed for external thermal insulation composite system.It has the quality of high tensile strength, good dimensional stability, water repellent, low water absorption etc. We have three different products to meet customer's needs i.e. LR140, LR160, LR180.


Rock wool products is base on superior melted basalt as the main raw material, through centrifuge system of four-roller cotton process which pulls melted basaltic rockwool into a 4 ~ 7μm non continuous fibers followed by adding a certain amount of binder,dust laying oil, water repellent before settlement folding, curing, cutting and other processes, and then made into the productsof different density depending on purpose of usage like blanket or board or pipe etc shapes .meanwhile it can be non-faced or faced with wire mesh. This material using in construction.Petroleum, electric power, chemical industry equipment’s thermal insulation and Building partition wall, curtain wall, roof and building envelope thermal insulation


Product performance

Unit

LDS 60-200

Standard

Apparent Density

kg/m3

140

160

180

GB/T5480

Compression strength(10%defomation)

kPa

≥40

≥50

≥60

GB/T13480

Tensile strength (perpendicular to surface)

kPa

≥7.5

≥10

≥15

JG149-2003

Thermal conductivity(25℃)

w/(m•K)

≤0.040

≤0.040

≤0.040

GB/T10295

Fire resistant

--

Non-combustible grade A

GB/T8624

Water repellence

%

≥98

≥98

≥98

GB/T10299

Acid index

--

≥1.8

≥1.8

≥1.8

GB/T5480

Moisture absorption

%

≤1.0

≤1.0

≤1.0

GB/T5480

water Absorption(partial immersion 24h)

kg/m2

≤0.5

≤0.5

≤0.5

GB/T25975-2010

water Absorption(partial immersion 28d)

kg/m2

≤2.0

≤2.0

≤2.0

GB/T25975-2010

Noise Reduction Coefficient(NRC)

---

≥0.6

≥0.6

≥0.6

GB/T18696

Dimension Stability

%

≤1.0

≤1.0

≤1.0

GB/T8811

Thickness Tolerance

mm

±3

±3

±3

GB/T5480

Squareness

mm/m

≤5

≤5

≤5

GB/T5480

Flatness

mm

≤6

≤6

≤6

GB/T25975-2010

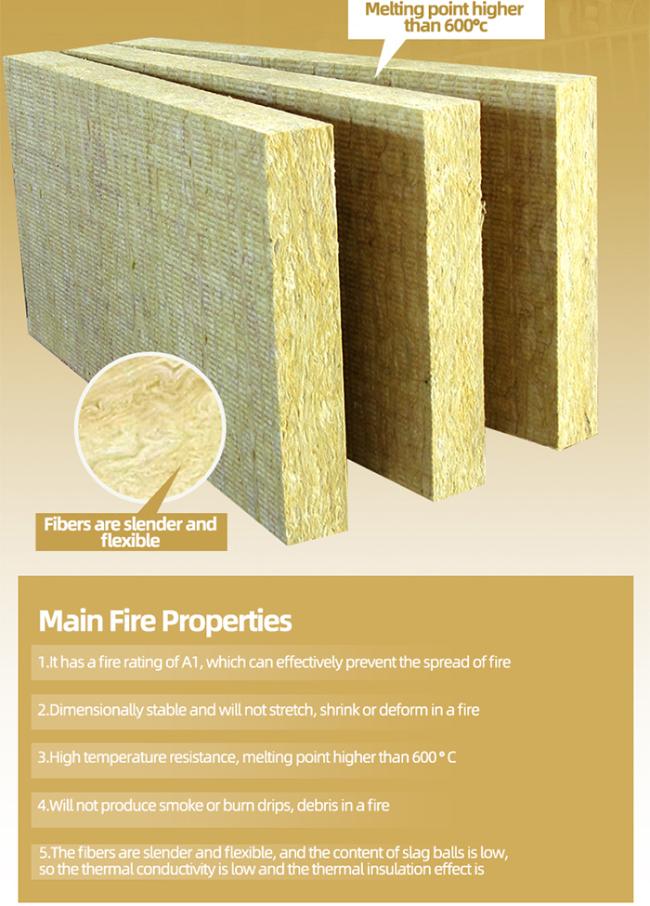

Melting Point

1000



Application:


1.Other places that has high requirement for fire-proof, thermal insulation, water-proof etc.


2,Suitable for dry hanging stone curtain wall, aluminum-plastic composite plate curtain wall, aluminum panel curtain wall insulation system etc.


3.This product is specially designed for external thermal insulation composite system.


4.Used as fire barrier for external thermal insulation composite system of non-class A fire classification insulation.

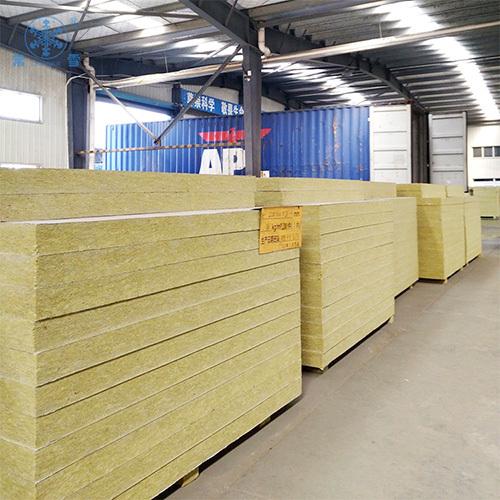

Packing and storage:


For the convenience of working and storage our product is packed with polyethylene heat shrinkable film.


And should be stored in dry and ventilated room or in an open area covered with water-proof cover.
