1260°C 1430°C High Temperature Ceramic Fiber Modules For Industrial Furnaces

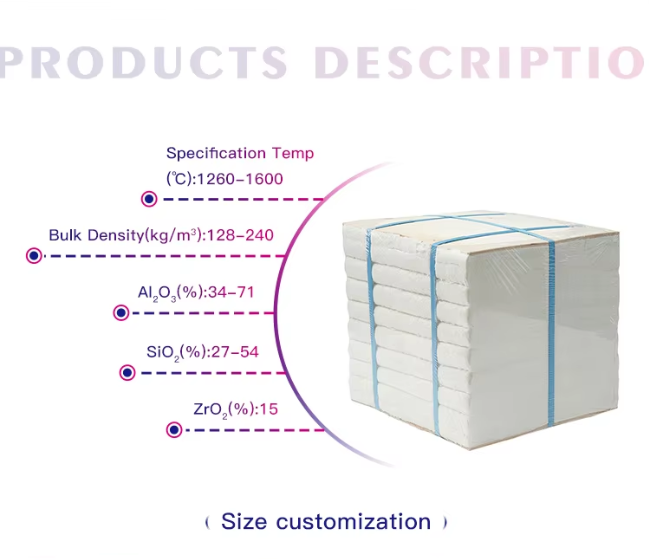

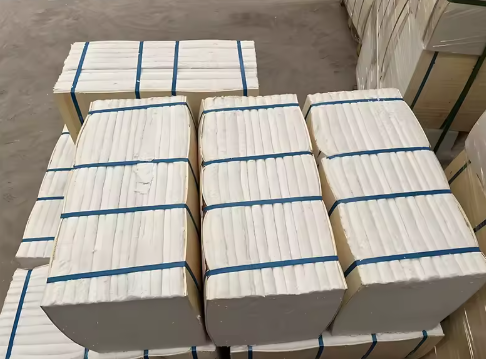

Leadsun ceramic fiber modules deliver the highest thermal insulation efficiency available in ceramic fiber products. Each module is manufactured from a continuous folded ceramic fiber blanket, compressed to form a dense and resilient insulation unit.
The layered blanket structure ensures excellent thermal performance and uniform insulation. Ceramic fiber module linings effectively minimize heat loss, resulting in higher furnace productivity, improved energy efficiency, and reduced maintenance costs.
| Ceramic fiber module physical and chemical performance index | |||||
| SUNWOOL Ceramic Fiber Module | |||||
| Items | Common | Standard | High Pour | High Alumina | Zirconium |
| AL2O3(%) | 44 | 46 | 47-49 | 52-55 | 39-40 |
| Al2O3+SiO2(%) | 96 | 97 | 99 | 99 | - |
| ZrO2(%) | - | - | - | - | 15-17 |
| Fe2O3(%) | ＜1 | ＜1 | ＜1 | 0.2 | 0.2 |
| Na2O+K2O(%) | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 |
| Classification Temperature(℃) | 1050 | 1260 | 1260 | 1360 | 1430 |
| Working Temperature (℃) | <1000 | 1000 | 1100 | 1200 | 1350 |
| Density(kg/m3) | 200±15 | 220±15 | 220±15 | 220±15 | 300±15 |
| Size | 300*300*200mm, 300*300*250mm, 300*300*300mm,with the anchoring piece Other sizes and shapes on request | ||||
-
Fast and easy installation, reducing labor time and downtime
-
Low heat storage, helping to lower fuel consumption and operating costs
-
Lightweight lining design, requiring less steel support structure
-
Multiple anchoring systems available, suitable for different furnace designs
-

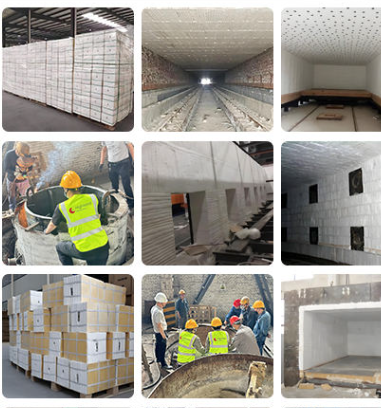

Low-mass kiln car insulation systems
-
Thermal insulation for continuous and batch kilns
-
Kiln and furnace door linings
-
Glazing and porcelain furnace linings
-
Duct lining insulation
-
Heat recovery steam systems (HRSG) insulation
-
Boiler insulation
-
Stack and chimney linings
