High Temperature Refractory Ceramic Fiber Paper 2mm - 6mm For Furnace Sealing

Price Negotiable
Price: Negotiable
MOQ: 1 Roll
Delivery Time: 10-15 days
Brand: SUNWOOL
Product Description

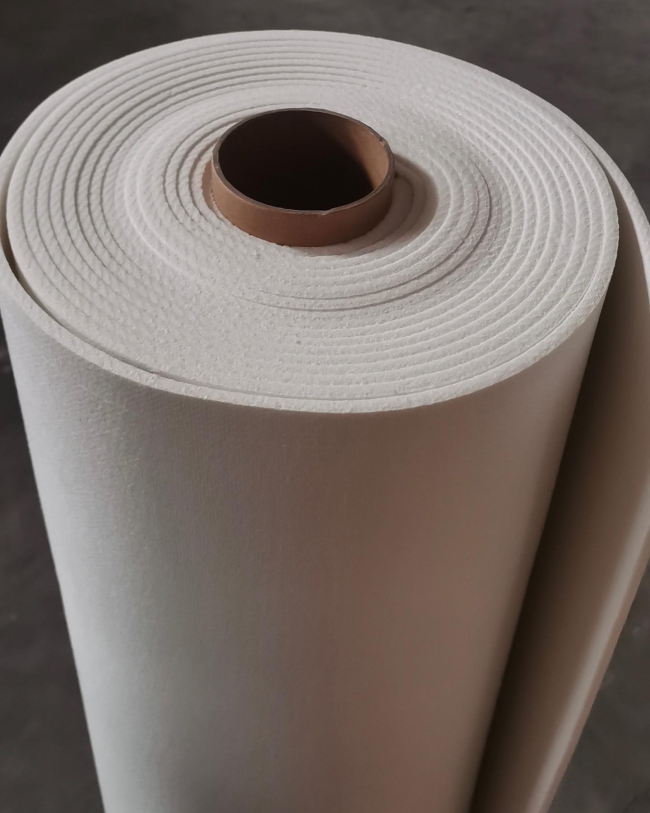

High Temperature Ceramic Fiber Paper 2–6mm For Furnace Sealing

Leadsun ceramic fiber paper is produced from high-purity alumina-silica fibers and processed into a flexible, lightweight refractory sheet. The material exhibits low thermal conductivity, low shrinkage, and excellent workability. A controlled amount of organic binder improves flexibility while reducing off-gassing and odor during operation. Uniform thickness and density ensure homogeneous thermal performance and a smooth surface, making it ideal for sealing and gasket applications.

Technical data
Type Standard ceramic fiber paper High pure ceramic fiber paper High Aluminium ceramic fiber paper Zirconium ceramic fiber paper
Chemical analysis (%) AL2O3 43 47 55 38
SiO2 53 51 44 44
Fe2O3+Ti2O3 ≤1.2 ≤0.3 ≤0.3 ≤0.2
CaO+MgO ≤0.3 ≤0.3 ≤0.3 ≤0.2
NaO+K2O ≤0.5 ≤0.3 ≤0.3 ≤0.2
Crganic Content (%) 5% ≤5% ≤5% ≤5%
Density(kg/m3) 180-220 180-220 180-220 180-220
Work Temperature 1050 1150 1250 1350
Thickness 0.5-12mm
size (mm) can custom
Features
  • Easy to wrap, shape, or cut, allowing flexible fabrication and installation
  • Lightweight insulation material, easy to handle and install
  • Low thermal conductivity and low heat storage, reducing heat loss and improving energy efficiency
  • Uniform structure with a smooth surface appearance, ensuring consistent performance
  • Excellent flexibility, toughness, and resistance to tearing or delamination
  • Good dielectric strength and sound insulation properties
  • Outstanding thermal shock resistance, maintaining integrity under rapid temperature changes
  • Excellent chemical stability and machinability, suitable for precision processing
  • High resistance to corrosion, ensuring long service life in harsh environments
Applications
  • Die-cut gasket materials used between castings in:
    • Coke oven doors
    • Blast furnace hot air piping
    • Aluminum heat treatment furnaces
    • Tuyeres and heat treatment furnaces
  • Backup insulation for brick and monolithic refractory linings in:
    • Blast furnace stoves
    • Industrial piping systems
    • Tundishes and ladles
    • Hot metal cars and troughs
