Thermal Insulation GlassWool Pipe Fireproof With Wire Mesh Alumina Foil

Price Negotiable
Price: Negotiable
MOQ: 10 meter
Delivery Time: 7days
Brand: SUNWOOL
Product Description

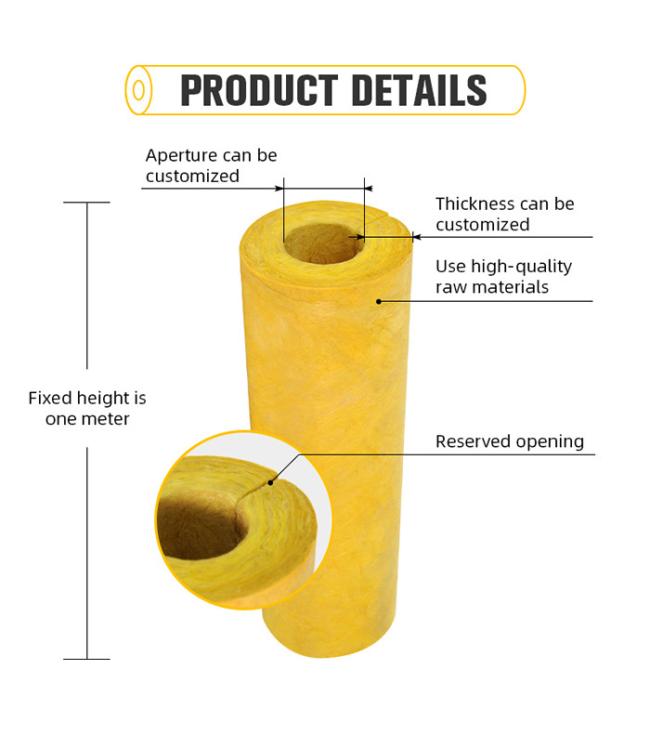

Thermal Insulation Glass Wool Tube Glass Wool Pipe High Quality Fireproof With Wire Mesh Alumina Foil


Leadsun Glass Wool Pipe is a widely used industrial and commercial insulation material, made from fine glass fibers bonded together. It is specifically manufactured in pre-formed cylindrical sections or slabs to fit snugly around pipes of various diameters.



Its primary function is to provide excellent thermal insulation, significantly reducing heat loss or gain in hot and cold piping systems, which improves energy efficiency. It also offers effective acoustic insulation and fire resistance, as glass wool is non-combustible and can withstand high temperatures, typically up to 450-550°C.



Key advantages include lightweight construction, easy installation due to its pre-formed shape, resistance to moisture and corrosion (especially when faced with foil or fabric), and cost-effectiveness. Common applications include insulating heating, ventilation, and air conditioning (HVAC) ducts, hot and cold water pipes, and industrial process pipelines in buildings, power plants, and refineries.



Description
Data
Unit
Standard
Thermal conductivity ID at average temperature
10℃
50℃
100℃
150℃
200℃
250℃
300℃
0.032
0.035
0.042
0.050
0.062
0.076
0.093
W/(m`k)
EN ISO 8497
40℃
0.034
W/(m`k)
EnEv
Reaction to fire
Not flammable
Not flammable
Not flammable
A1LM06q.3
-
-
-
EN13501
-1NF
VKF
Application temperature
-
300*
EN ISO
8497
Top application temperature limit
-
500
EN 14707
Specific heat capacity
Cp
0.84
KJ/(kg`k)
-
Special properties hydrophobic
Water absorption
≤ 1
kg/m2
EN 13472
AGI Q 132
Chloride ion content
Produced in AS quality
≤ 10
mg/kg
EN 13468
AGI Q 132
Impedance (length-related)
-
≥30
kPa`s/m2
EN 29053
Insulating material reference number
-
10.04.02.50.99
-
AGI Q 132


Unit
Specification
Average diameter of fiber
um
≤ 8
Weight
kg/m3
64-100
Thermal Conductivity
W/(m`k)
0.030-0.044
Inflammable  property

Inflammable
Hydrophobic Coefficient
%
%
Service Temperature
-120~400
Slag Ball
%
≤ 0.3
Organism
%
≤ 4
Water
%
≤ 1.0
Water Absorption Coefficient
%
≤ 1.5



Advantages:


1.Antisepsis, ageing resistance, and anticorrosion, ensuring a healthy environment. Low moisture absorption, stable physical properties.


2.Sound absorption and noise reduction, it can effectively prevent sound from spreading.


3Excellent Sound Absorption: Noise Reduction Coefficient (NRC): Up to 0.90, effectively dampens airborne and impact noise for quieter workspaces.


4.Unique technology, rebound degree after compressive packing is up to 99.2%.


Application:


Glass wool pipe is widely used in HVAC systems, industrial pipelines, plumbing, and renewable energy installations
