Lightweight 240kg/m3 Calcium Silicate Board Sound Insulation Water Resistant Fireproof
Fireproof Lightweight 240 Kg / M³ Calcium Silicate Board Sound Insulation Water Resistant Fireproof
Calcium silicate board is an asbestos-free thermal insulation product that can withstand continuous operating temperature from 650C up to 1100C. It is light weight, low thermal conductivity, high strength, easy to install, reliable and durable. There are 3 grades available namely 650 &1000 & 1100 which are commonly used as furnace backup insulation in steel, petrochemical, ceramic, cement & glass industry or fire protection in building construction. It not only provides energy saving, also increases production efficiency and gives personnel protection in industrial safety aspect. And in the housing construction Calcium Silicate Board is also used as the ceiling, fireproof and heat insulation materials of wall and sound absorption materials of decoration.
|
Item |
Unit |
High Temperature(1000℃) |
|
Bulk Density |
Kg/m3 |
240(±10%) |
|
Flexural Strength |
Mpa |
≥0.50 |
|
Thermal Conductivity |
W/m.k |
≤0.056 |
|
Temp. Limit |
℃ |
1000 |
|
Linear Shrinkage |
% |
2(1000 C,16hrs) |
High Temperature Calcium Silicate Board, Fireproof Insulation Board For Boiler, Industrial Furnace Insulation Board
|
Physical index |
Unit |
L-200 |
L-230 |
L-250 |
L-270 |
|
Density |
kg/m3 |
200±10% |
230±10% |
250±10% |
270±10% |
|
Cold Crushing Strength |
Mpa |
≥0.60 |
≥0.80 |
≥0.90 |
≥1.00 |
|
Flexural Strength |
Mpa |
≥0.35 |
≥0.45 |
≥0.50 |
≥0.55 |
|
Maximum Service Temp. |
℃ |
1000℃ |
1000℃ |
1000℃ |
1000℃ |
|
Linear Shrinkage(1000℃x16hrs) |
% |
≤2 |
≤2 |
≤2 |
≤2 |
|
Thermal Conductive |
w/(m.k) |
200℃ 0.075 400℃ 0.098 600℃ 0.150 800℃ 0.210 |
200℃ 0.085 400℃ 0.100 600℃ 0.152 800℃ 0.214 |
200℃ 0.095 400℃ 0.108 600℃ 0.156 800℃ 0.216 |
200℃ 0.098 400℃ 0.110 600℃ 0.158 800℃ 0.218 |
|
Compression Strength at 10% Deformation after 16hrs*1000℃ |
Mpa |
0.32 |
0.40 |
0.45 |
0.50 |
|
Porosity |
% |
90.80 |
90.60 |
90.40 |
90.00 |
|
Moisture Content |
% |
3-5% |
|||
|
PH Value |
% |
8-9% |
|||
|
Color |
/ |
white |
|||
|
Surface Condition |
/ |
1.Original dimple pattern. 2.Double sanded, smooth and good flatness. |
|||

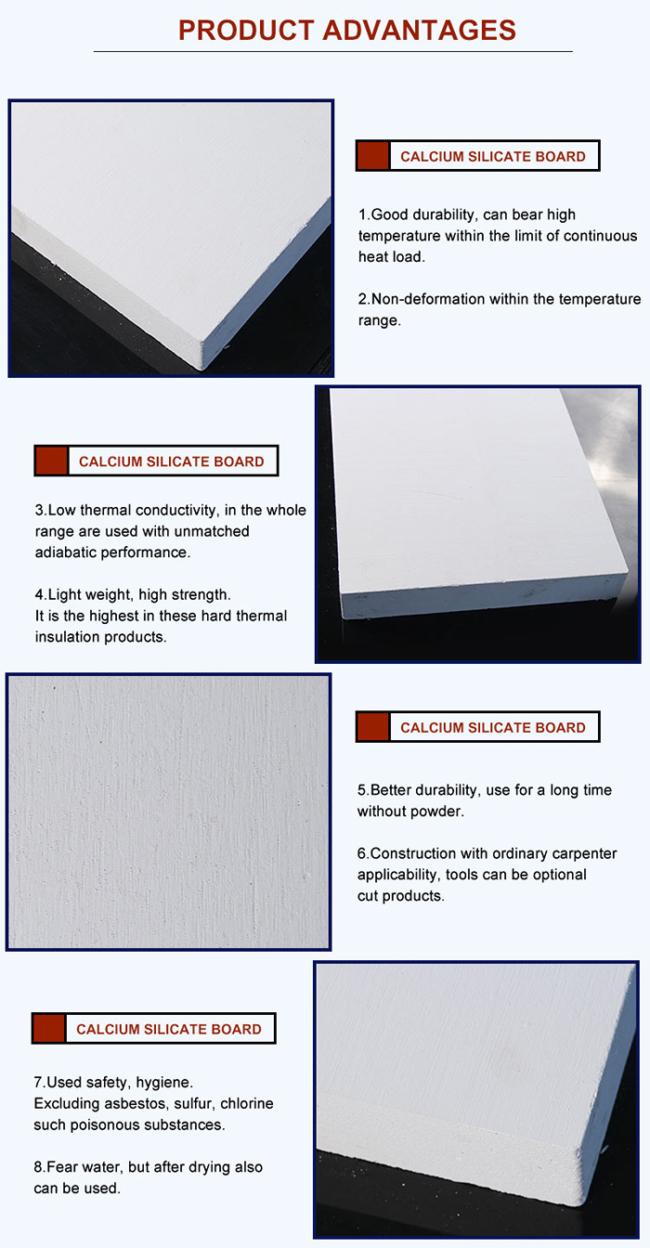

Advantages:
1.Low thermal conductivity, in the whole range are used with unmatched adiabatic performance.
2.Better durability, use for a long time without powder.
3.Used safety, hygiene. Excluding asbestos, sulfur, chlorine such poisonous substances.
4.Good durability, can bear high temperature within the limit of continuous heat load.
5.Construction with ordinary carpenter applicability, tools can be optional cut products
6.Light weight, high strength. It is the highest in these hard thermal insulation products.
Applications:
1.Power, Chemical, Metallurgy, Petrochemical, Textile, and Light Industries.
2.Furnaces & Kilns: Reheating furnaces,Annealing furnaces,Shuttle kilns,Tunnel kilns,Rotary kilns,Other high-temperature ovens/heat processing equipment
