Customizable Rockwool Insulation Sheets Fireproof Acoustic Insulation For Thermal Building
Price:
1.0usd - 5.0usd
MOQ:
100 psc
Delivery Time:
7 days
Brand:
LEADSUN
Product Description

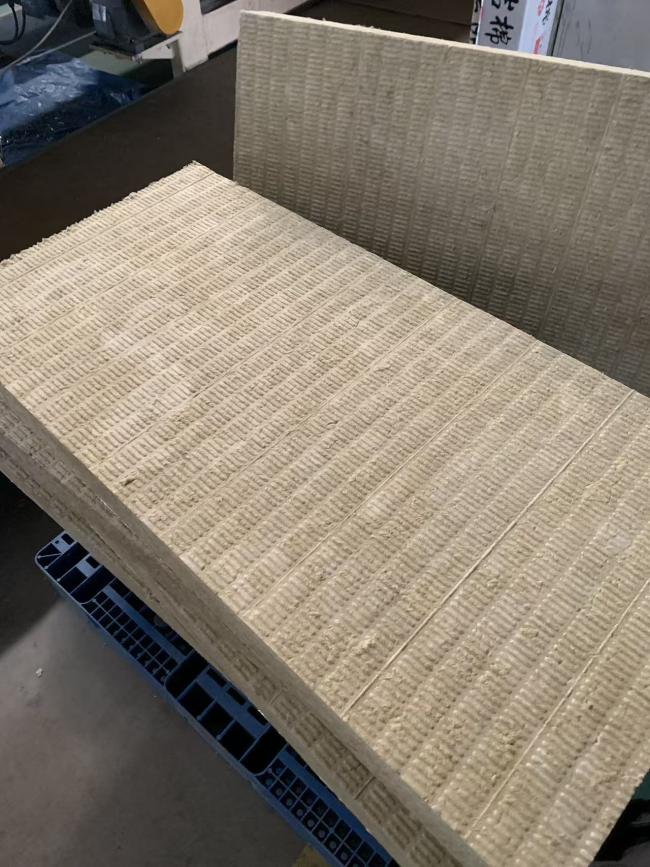

Rockwool Insulation For Thermal Building And Acoustic Insulation
Rock wool products are made from high-quality melted basalt using an advanced four-roller centrifugal process, forming non-continuous fibers with a diameter of 4–7 μm. During production, binders, dust-suppression oil, and water-repellent agents are added, followed by curing and cutting. The products are available in different densities and forms, including blankets, boards, and pipe sections, with optional wire mesh facing. Rock wool is widely used for thermal insulation in construction, petroleum, electric power, and chemical industries, as well as for building partition walls, curtain walls, roofs, and building envelope insulation.
Technic parameter
| Product performance | Unit | LDS 60-200 | Standard | ||
|---|---|---|---|---|---|
| Apparent Density | kg/m3 | 140 | 160 | 180 | GB/T5480 |
| Compression strength(10%defomation) | kPa | ≥40 | ≥50 | ≥60 | GB/T13480 |
| Tensile strength (perpendicular to surface) | kPa | ≥7.5 | ≥10 | ≥15 | JG149-2003 |
| Thermal conductivity(25℃) | w/(m•K) | ≤0.040 | ≤0.040 | ≤0.040 | GB/T10295 |
| Fire resistant | -- | Non-combustible grade A | GB/T8624 | ||
| Water repellence | % | ≥98 | ≥98 | ≥98 | GB/T10299 |
| Acid index | -- | ≥1.8 | ≥1.8 | ≥1.8 | GB/T5480 |
| Moisture absorption | % | ≤1.0 | ≤1.0 | ≤1.0 | GB/T5480 |
| water Absorption(partial immersion 24h) | kg/m2 | ≤0.5 | ≤0.5 | ≤0.5 | GB/T25975-2010 |
| water Absorption(partial immersion 28d) | kg/m2 | ≤2.0 | ≤2.0 | ≤2.0 | GB/T25975-2010 |
| Noise Reduction Coefficient(NRC) | --- | ≥0.6 | ≥0.6 | ≥0.6 | GB/T18696 |
| Dimension Stability | % | ≤1.0 | ≤1.0 | ≤1.0 | GB/T8811 |
| Thickness Tolerance | mm | ±3 | ±3 | ±3 | GB/T5480 |
| Squareness | mm/m | ≤5 | ≤5 | ≤5 | GB/T5480 |
| Flatness | mm | ≤6 | ≤6 | ≤6 | GB/T25975-2010 |
| Melting Point | ℃ | ＞1000 | |||
Typical Applications
- Specially designed for external thermal insulation composite systems (ETICS).
- Suitable for insulation systems of dry-hung stone curtain walls, aluminum-plastic composite panel curtain walls, and aluminum panel curtain walls.
- Used as a fire barrier in external thermal insulation systems with non-Class A fire-rated insulation materials.
- Applicable to areas with high requirements for fire resistance, thermal insulation, and water resistance.
