1260°C 1430°C Ceramic Fiber Blanket 64/96/128/160 Kg/m³ for Furnace Boiler Kiln Insulation
Price:
5.5-9.9usd/roll
MOQ:
10roll
Delivery Time:
10days
Brand:
SUNWOOL
Product Description
Product Overview

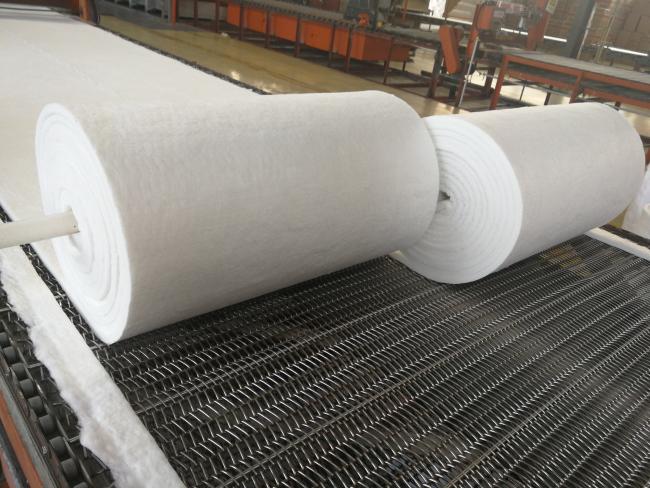

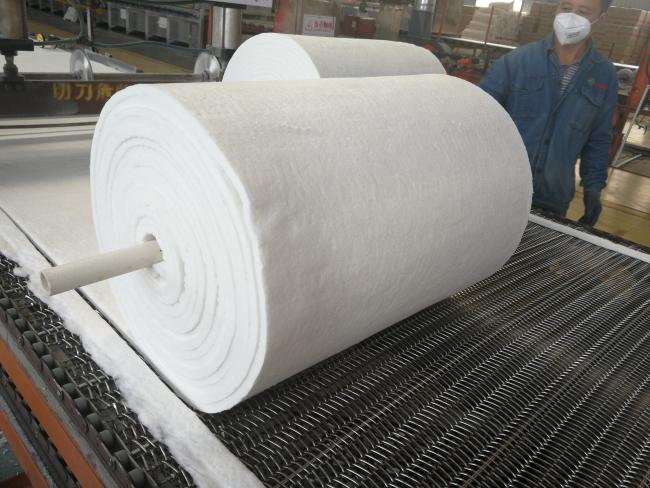

Our Ceramic Fiber Blanket is composed of long, flexible, interwoven fibers manufactured by the "blown" and "spun" process. It yields a strong, lightweight, and durable blanket designed for continuous service in a temperature range from 1100°C to 1430°C, depending on the grade. It combines the heat resistance of a hard refractory with a thermal insulation value five times better, making it an ideal solution for energy saving and thermal management.
Technical Index
| Description | STD Blanket | High Pure Blanket | High zirconium Blanket | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AL2O3(％) | ≥44 | ≥45 | ≥34 | |||||||||
| AL2O3+SiO2 (%) | ≥96 | ≥99 | ≥84 | |||||||||
| Fe2O3+TiO2(%) | ≤1.0 | ≤0.5 | ≤0.5 | |||||||||
| ZrO2 (%) | - | - | ≥15 | |||||||||
| K2O+Na2O(％) | ≤1.0 | ≤0.2 | ≤0.2 | |||||||||
| Density (kg/m3) | 64 | 96 | 128 | 96 | 128 | 128 | 160 | |||||
| Classification Temperature (℃) |
1260 | 1260 | 1430 | |||||||||
| Fiber Diameter(um) | 3.5 | 3.5 | 3.5 | |||||||||
| Shot Content(%) | ≤15 | ≤15 | ≤15 | |||||||||
| Shrinkage after Heating (%) | 1000C *24h≤2.5 | 1100C *24h≤2.5 | 1350C *24h≤3.5 | |||||||||
| Thermal Conductivity(W/m·k) | ||||||||||||
| 400℃ | 0.090 | 0.095 | 0.124 | 0.114 | 0.101 | 0.138 | 0.122 | 0.118 | ||||
| 500℃ | 0.119 | 0.123 | 0.145 | 0.135 | 0.120 | 0.179 | 0.153 | 0.149 | ||||
| 600℃ | 0.152 | 0.158 | 0.202 | 0.191 | 0.175 | 0.233 | 0.184 | 0.172 | ||||
| Tensile Strength(Mpa) | 0.040 | 0.05 | 0.05 | 0.060 | 0.075 | 0.050 | 0.060 | 0.075 | ||||
Key Features
- Low Thermal Conductivity – Excellent insulation properties reduce heat loss.
- Very Low Heat Storage – Enables rapid heating and cooling cycles.
- High Tensile Strength – Durable and resistant to tearing during handling and installation.
- Excellent Thermal Shock Resistance – Performs reliably under rapid temperature changes.
- No Binder, Safe – Contains no binders, producing no fumes or furnace atmosphere contamination. It is asbestos-free.
- Quick Installation & Repair – Requires no curing or dry-out time; can be fired to operating temperature immediately. Damaged linings can be cooled and repaired quickly.
Applications
- Ceramic Industry – Kiln car insulation and seals, continuous and batch kilns.
- Steel Industry – Heat treating/annealing furnaces, furnace door linings, soaking pit covers, ladle covers, hot face repairs.
- Refining & Petrochemical – Reformer and pyrolysis lining, tube seals/gaskets, high-temperature pipe/duct insulation.
- General – Back-up insulation, expansion joints, and areas requiring sound absorption.
