Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
Price:
USD1860.00/Ton ~ USD2388.00/Ton
MOQ:
2 Tons (Mixed roll widths accepted)
Delivery Time:
15 - 25 working days
Brand:
AFP
Product Description
Premium Thermal Lamination Film For Heat / Dry Lamination 12 - 350 Micron
Heat / Hot / Dry Lamination Use Premium Laminating Roll Thermal Lamination Film
BOPP Thermal Lamination Film Technical Specifications
| Parameter | Specification |
|---|---|
| Material | BOPP (Biaxially Oriented Polypropylene) Film |
| Thickness | 15micron to 30micron |
| Adhesion | EVA (Ethyl Vinyl Acetate) |
| Roll Width | 180mm to 1880mm |
| Corona Treatment | Single or Double |
| Roll Length | 300m to 4000m |
| Surface Tension | Over 38 dynes |
| Joint | ≤1 |
| Shelf Life | 9 months |
| Core Size | 1inch (25.4mm), 3inch (76.2mm) |
| MOQ | 2 tons (mixed width available 500mm,600mm,700mm etc.) |
| Applications | Textbook Cover, Brochures, Leaflets, Sweet Boxes, Cosmetics, Shopping Bag, Diaries |
BOPP Operation Guidance
| Parameter | Range |
|---|---|
| Compound Temperature | 85℃ - 105℃ (185℉ - 221℉) |
| Compound Pressure | 10-18 mpa |
| Compound Speed | 10-60m/min |
PET Thermal Lamination Film Technical Specifications
| Parameter | Specification |
|---|---|
| Material | PET (Polyester) Film |
| Thickness | 12micron to 350micron |
| Adhesion | EVA (Ethyl Vinyl Acetate) |
| Roll Width | 180mm to 1400mm |
| Corona Treatment | Single or Double |
| Roll Length | 50m to 3000m |
| Surface Tension | Over 42 dynes |
| Joint | ≤1 |
| Shelf Life | 12 months |
| Core Size | 1inch (25.4mm), 2.3inch (58mm), 3inch (76.2mm) |
| MOQ | 2 tons (mixed width available 500mm,600mm,700mm etc.) |
| Applications | Textbook Cover, Menu, Album, Brochures, Leaflets, Sweet Boxes, Cosmetics, Diaries |
PET Operation Guidance
| Parameter | Range |
|---|---|
| Compound Temperature | 90℃ - 150℃ (194℉ - 302℉) |
| Compound Pressure | 10-18mpa |
| Compound Speed | 10-50m/min |

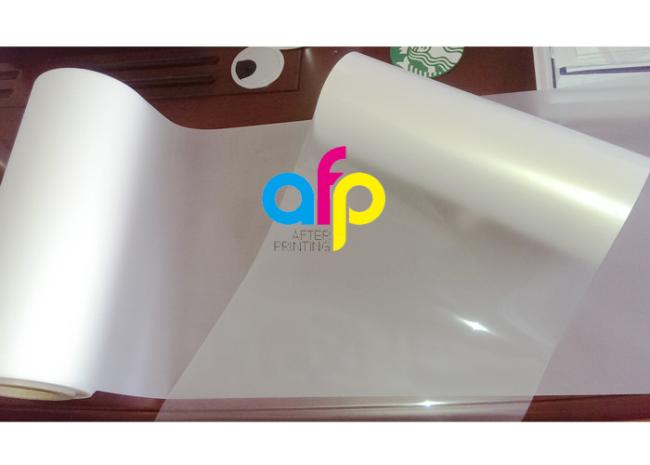

What is Thermal Lamination Film?

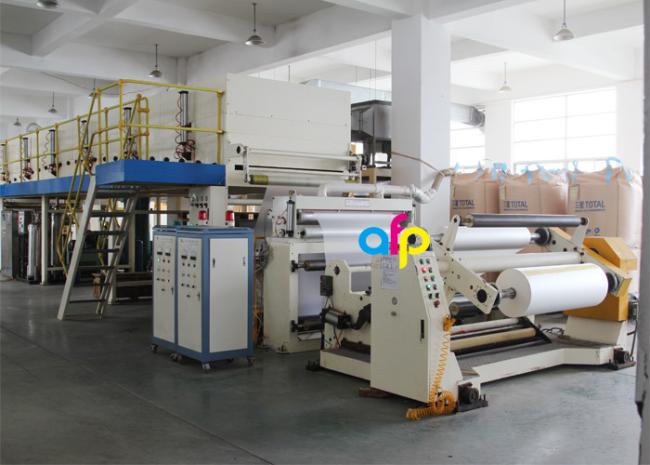

Thermal lamination film is produced by multi extrusion coating lines. It consists of two layers: one is plastic film (primarily BOPP or PET film), and another layer is adhesive glue of EVA. Thermal Lamination Film is also called dry, hot or heat lamination film.
Where is Thermal Lamination Film Used?
Generally, printing houses use BOPP Thermal Lamination Film rolls for commercial and school printings. It can also be used for graphic arts large format applications. The transparent film lamination, available in bright/shine/glossy or matte/dull finishes, is heated as protection on paper covers. Sometimes it is referred to as paper lamination film used by heating EVA adhesive glue onto paper substrates.

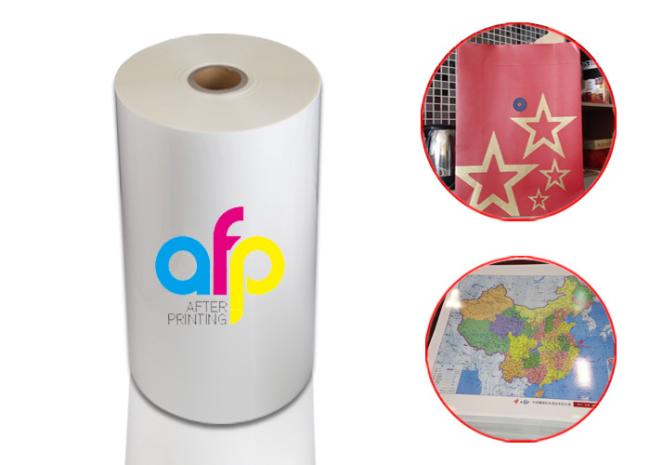

Specific applications of BOPP Thermal Laminating Film Roll include:
- Textbook covers
- Brochures
- Leaflets
- Sweet boxes and diaries
- Shopping bags
- Cosmetics boxes
How to Use Thermal Lamination Film?

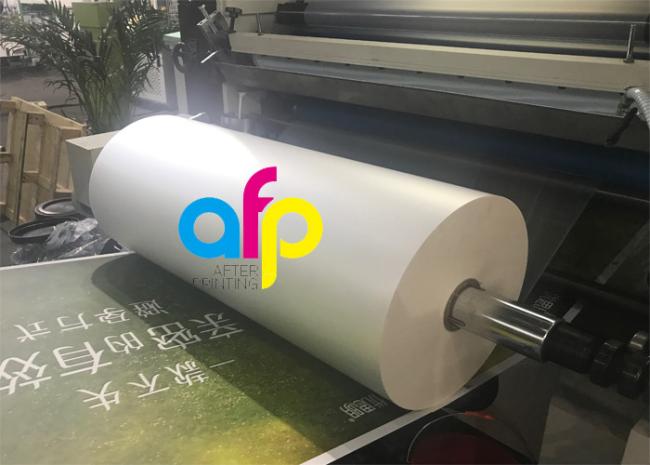

The lamination process involves joining two or more layers to protect prints. A hot laminator (thermal/heat/dry lamination roller machine) is required to use Thermal Lamination Film by melting its EVA adhesive onto paper surfaces. During the process, the film is passed on a heated roller and under reasonable pressure it sticks to the paper. This process is easy to use and can be done at home for small applications. Sometimes, it is also called heat lamination, dry lamination, or hot lamination.
Packaging & Shipping
- One roll thermal lamination film per carton
- Tens of rolls of thermal lamination film in a pallet
- 10 to 12 pallets loaded into 1*20FCL (approximately 13MTs)
- Or 20 to 22 pallets loaded into a 40 feet container (approximately 25MTs)
- Seaport: Xiamen, Shanghai, Ningbo
Frequently Asked Questions (FAQ)
About Samples
- Samples for testing are available and free
- The freight for sample delivery is at receiver's side
- Freight cost will be refunded by deducting from the next order automatically
- For cost savings, we recommend prepaid shipping instead of collect
About Capacity
- 5 coating lines
- 20 days delivery for a 40 feet container
- 850 tons per month production capacity
About Responsibility and After-sale Service
- 12 months warranty
- Equivalent compensation provided in case of any quality problems
Technical Documents
Certificates
- CERTIFICATE of REACH SVHC.pdf
- CERTIFICATE of FDA n CPSIA.pdf
- CERTIFICATE of EN 71-3.pdf
