Recyclable Single Wound POF Heat Shrink Film Wrap Roll For Book
Price:
USD2118.00/Ton ~ USD2380.00/Ton
MOQ:
1 Ton (1,000kgs)/Trial Order Negotiable
Delivery Time:
15 - 25 working days a 40GP
Brand:
AFP
Product Description

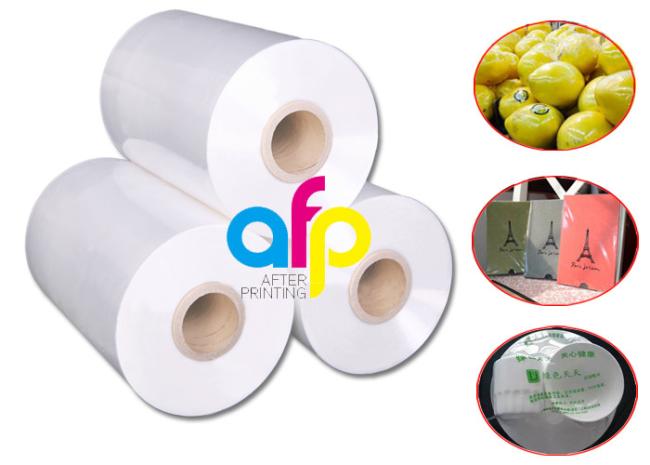

Recyclable Single Wound POF Heat Shrink Film Wrap Roll For Book
Product Overview
Polyolefin POF Heat Shrink Wrap Film is the most widely used shrink packaging material due to being cost-effective, strong, shape-conforming, and tamper-evident. This clear, elastic film with smooth texture is composed of non-toxic, non-smelly Polypropylene (PP) and Polyethylene (PE).
Product Specifications
- Product Name: Polyolefin POF Heat Shrink Wrap Film
- Material: PP + PE
- Shrinkage Ratio: Over 60%
- Thickness: 12.5micron (50gauge), 15micron (60gauge), 19micron (75gauge), 25micron (100gauge)
- Minimum Order Quantity: 2,000 kgs (multi roll width within an order available)
- Roll Width: 200mm (8") to 1600mm (80")
- Roll Length: 800m to 1600m for center-folded, 1600m to 3200m for single wound

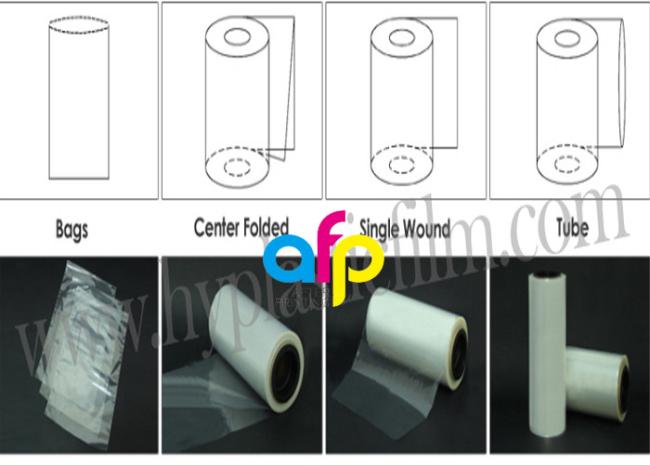

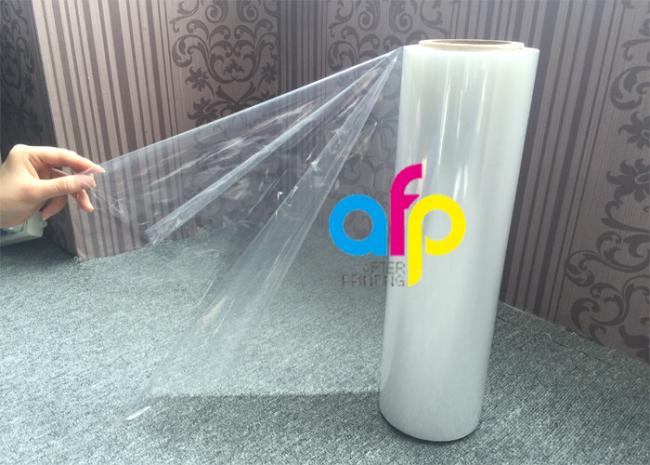

- Type: Single wound, corner folded (center-folded), tube
Key Benefits
- Environmentally friendly, FDA approved for direct food contact
- Efficient product protection without harmful gas emissions
- Strong, high clarity biaxial oriented heat shrinkable film
- Stable & balanced shrinkage with soft corner during packaging

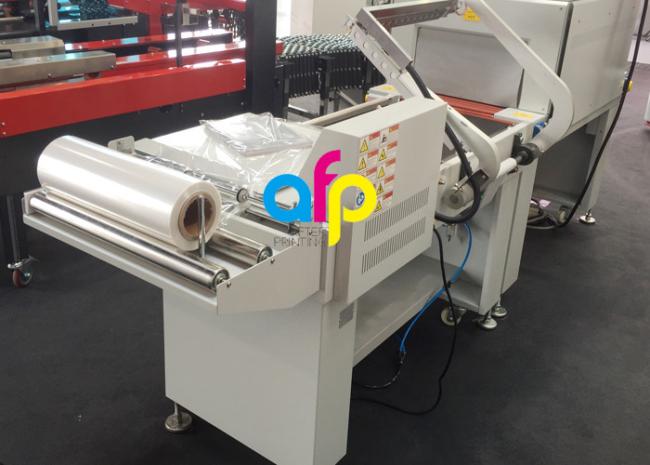

Compatible Packaging Machines
- Side sealer continuous motion
- Side sealer intermittent motion
- Automatic L-bar sealer
- Semi-automatic L-bar Sealer
- Vertical L-bar Sealer
- 2 in 1 shrink wrapper
Applications
- All types of food, chemical products, hardwares, soap, sport equipment, books and magazines
- Regular and irregular shape products like cups, stationery, toys, cosmetics, drinking tins, bottles
Product Features
- Excellent seal strength
- High shrinkage ratio over 60%
- High transparency and fine luster
- Moderate air barrier property
- Flexible tenacity and hermetic sealing property
- Cold resistance
- Soft and non-brittle
- Damp-proof and anti-static
- Fine heat sealing performance
Material Comparison
| Film Types | POF | PP | BOPP | PE | PVC |
|---|---|---|---|---|---|
| Price Ranking | 2nd | 1st | 3rd | 4th | 5th |
| Thickness | 10 - 30 | 15 - 40 | 12 - 32 | 30 - 150 | 20 - 60 |
| Density (kg/m³) | 0.92 | 0.91 | 0.91 | 0.91 | 1.34 |
Technical Specifications
| Property | Unit | Test Method | 12.5micron | 15micron | 19micron | 25micron |
|---|---|---|---|---|---|---|
| Physical Property | ||||||
| Thickness | Micron | 12.5micron | 15micron | 19micron | 25micron | |
| Gauge | 50gauge | 60gauge | 75gauge | 100gauge | ||
| Density | g/cm³ | 0.922 | 0.922 | 0.922 | 0.922 | |
| Tensile Property (MD/TD) | ||||||
| Elastic Modulus | N/mm² | ASTM-D882A | 330/450 | 340/450 | 350/450 | 360/450 |
| Tensile Strength | MPa | ASTM-882 | 110/110 | 110/110 | 110/110 | 105/105 |
| Elongation at Break | % | ASTM-882 | 105/110 | 105/110 | 110/110 | 110/115 |
| Seal Strength | g/cm³ | Internal Method | 610 | 870 | 1025 | 1250 |
| Seal Strength | N/mm² | 40 | 57 | 53 | 49 | |
| Tear Propagation | g/cm³ | ASTM-D1938 | 6 | 5.5 | 9.5 | 14.5 |
| COF film to film | Adim | ASTM-D1894 | 0.2 | 0.2 | 0.2 | 0.2 |
| Free Shrink at 130℃ | % | ASTM-D2732 | 70/70 | 70/70 | 70/70 | 70/70 |
| Optical Property | ||||||
| Haze | % | ASTM-D1003 | 1.1 | 1.3 | 1.8 | 2.3 |
| Gloss | % | ASTM-D2457 | 135 | 135 | 135 | 130 |
| Dimension Specification | ||||||
| Width | mm/inch | 200-1600mm (8" to 80") - multi roll widths available | ||||
| Length (S/W) | m/ft | 3200m/10500ft | 2665m/8750ft | 2135m/7000ft | 1600m/5250ft | |
| Length (C/F) | m/ft | 1600m/5250ft | 1332m/4370ft | 1067m/3500ft | 800m/2625ft | |
Order Example
Sample Order Configuration:
25micron (100gauge) Corner Folded
12" (305mm) x 2625' (800m) x 100 rolls (weight 1125.00 kgs)
20" (508mm) x 2625' (800m) x 50 rolls (weight 937.00 kgs)
Total: 150 rolls, 2,062.00 kgs

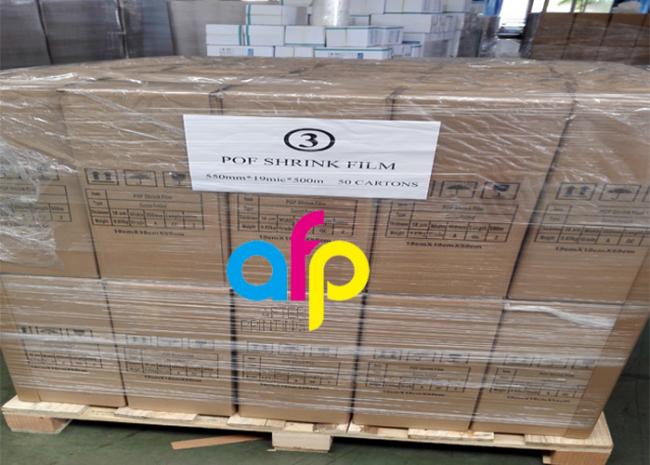

Packaging & Shipping
- One roll per carton
- Approximately 60 cartons per wooden pallet
- 10 pallets in 20FCL or 20 pallets in 40GP
- Seaports: Xiamen, Shanghai, Qingdao
Frequently Asked Questions
About Samples:
- Samples for testing are available and free
- Freight for sample delivery is at receiver's side
- Freight cost refunded by deducting from subsequent order
- Prepaid shipping recommended to save costs
About After-sale Service:
- 9 months warranty
- Equivalent compensation for any quality problems
