Thermal Matte Finish Laminating Film Roll For Hot Stamping / Spot UV
Price:
USD2355.00/Ton ~ USD2588.00/Ton
MOQ:
2 Tons (Mixed roll width accepted)
Delivery Time:
15 - 25 working days
Brand:
AFP
Product Description
Thermal Matte Finish Laminating Film Roll For Hot Stamping / Spot UV
Product Overview
Thermal Roll Matte Laminating Film
42 Dynes Double Corona Treatment Thermal Roll Matte Laminating Film for Hot Stamping and Spot UV
Product Specifications
| Specifications | Model No. | AFP-Y18 | AFP-Y20 | AFP-Y22 | AFP-Y21 | AFP-Y23 | AFP-Y25 | AFP-Y27 |
|---|---|---|---|---|---|---|---|---|
| Type | Matte | Matte | Matte | Matte | Matte | Matte | Matte | |
| Thickness | BOPP | 12 micron | 12 micron | 12 micron | 15 micron | 15 micron | 15 micron | 15 micron |
| EVA | 6 micron | 8 micron | 10 micron | 6 micron | 8 micron | 10 micron | 12 micron | |
| TOTAL | 18 micron | 20 micron | 22 micron | 21 micron | 23 micron | 25 micron | 27 micron | |
| Yield | m²/kg | 63.613 | 56.948 | 51.546 | 54.735 | 49.727 | 45.558 | 40.112 |
| kg/m² | 0.0157 | 0.0176 | 0.0194 | 0.0183 | 0.0201 | 0.0220 | 0.0249 |
Customized thickness combination available (18 micron to 30 micron, glossy and matte)
Price by weight or square meter available
Thickness Tolerance: ±1μm (micron)
Roll Width: from 180mm to 1880mm
Roll Length: from 300m to 4000m
Joint: ≤1
Core Size: 1inch (25.4mm), 3inch (76.2mm)
Corona Treatment: Single or Double, ≥ 38dyne
Shelf Life: 9 months
MOQ: 2 tons (mixed width available 500mm,600mm,700mm etc.)
Operation Guidance
Compound Temperature: 85℃ - 105℃ (185℉ - 221℉)
Compound Pressure: 10-18 mpa
Compound Speed: 10-60m/min
Product Benefits
Thermal lamination film is used to laminate printings pursuing effect of more luster, elegant, visually comfortable sense, and comfortable touch sense.
It prevents lamination from being pressed, bubbled and desquamated.
It also protects laminated printings from harmful substances and is moisture-proof, ensuring a long life storage.
The matte finishing is usually double corona treated with the value up to 42 dynes, excellent performance to UV varnishing and hot stamping.
It is used to enhance the elegance of printed paper by heating lamination, especially when a brand is looking for a more impressive effect on the end-user consumptions.
Matte finish lamination film sees thickness from 18micron to 30micron, with the combination like 12BOPP+6EVA (18micron) or 15BOPP+10EVA (25micron).
Applications
- Leaflets
- Brochures
- Documents
- School paper
- Shopping bags
- Textbook covers
- Cosmetics boxes
- Sweet boxes and diaries

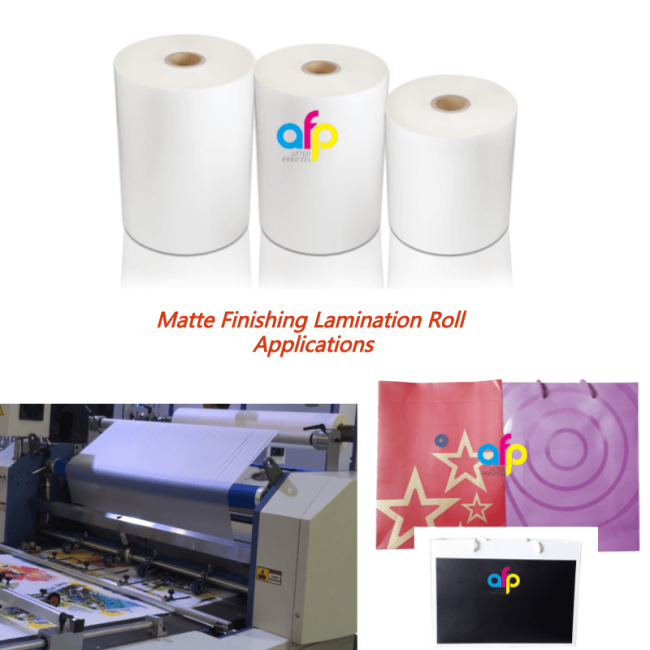

Matte Finish Applications
Manufacturing Process
Raw Material Inspection
BOPP Film, EVA (TOTAL E182L, DUPONT)
Adhesion Coating
Corona treatment, Strong surface tension
Quality Testing
Corona treatment, Peel strength
Splitting & Rewinding
Precise roll measure, Smooth surface
Packaging & Shipping
Roll Body Overlayer
Clear plastic bubble film, Label outside
Carton Packaging
Five layers corrugated box, Protective plastic cap
Pallet Packaging
Corner protection, Strongly stretched
Container Loading
Dunnage bag used, No dropping
Documentation
Download Product Data
Download Certificates
CERTIFICATE of REACH SVHC.pdfCERTIFICATE of FDA n CPSIA.pdfCERTIFICATE of EN 71-3.pdf
Product Video
