Medical Lithium Batteries INR18650 22.2V 8.8Ah Battery pack
Price:
$39/units >=10 units
MOQ:
5units
Delivery Time:
7-15 Working Days
Brand:
THLB
Product Description

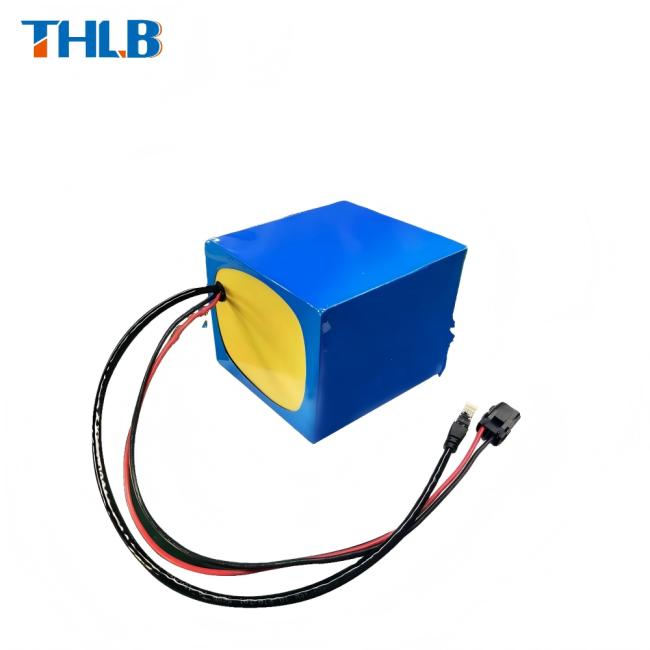

INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries
BMS Included 22.2V 8.8Ah Lithium Ion Battery Pack - Perfect Solution for Portable Medical and Monitoring Devices
Product Specifications
| Nominal Voltage | 22.2V |
| Typical Capacity | 8.8Ah |
| Discharge | Normal Current: ≤5A |
| Cut-off Voltage: about 16.5V | |
| Charge | Charging Voltage: 25.2V |
| Charging Current: <5A | |
| Charging Method: CC/CV | |
| Cut-off Current: 0.18A | |
| Inner Resistance | Discharging Inner Resistance: ≤80mΩ |
| Operation Temperature/Humidity Range | Charge: 0℃～+45℃ |
| Discharge: -20℃～+60℃ | |
| When environment temperature is higher than 45℃, please ensure proper ventilation and heat dissipation | |
| Humidity: RH<85% (protect when humidity exceeds 85%) | |
| Storage Temperature/Humidity Range | Temperature: 0℃～+40℃ (80% capacity), recommended long-term storage: 15-25℃ |
| Humidity: RH<50% (seal easily oxidized components) | |
| Protection Functions | Overcharge protection, over discharge protection, temperature protection, balanced function |
| Material of Battery Case | PVC |
| Dimensions | (120±2)mm × (75±2)mm × (70±2)mm |
| Cycle Life |
Standard charge at 0.2C, rest 0.5-1h, discharge at 0.2C to cut-off voltage, rest 0.5-1h, repeat for 1000 cycles (capacity retention rate >80%) |

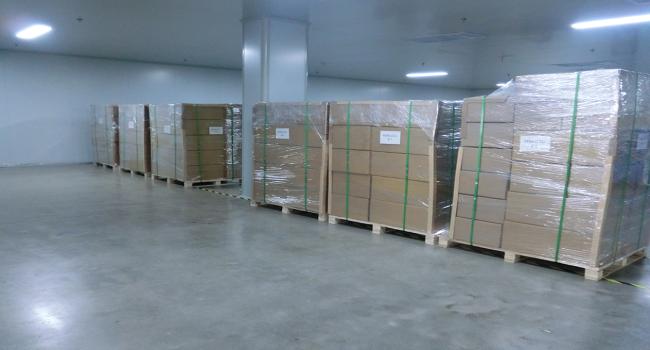

Packing & Delivery
Our Company
Shandong TianHan New Energy Technology Co., Ltd specializes in R&D, manufacturing, sales and service of lithium batteries, power lithium batteries, battery packs, and BMS. Our products are widely used in intelligent manufacturing, new energy electric vehicles, starting batteries, communication station batteries, e-bikes, solar-wind energy storage systems, and home-use energy storage system solutions.
Frequently Asked Questions
Q1. Can I have few free samples for evaluation?
A: Yes, free samples are available, but shipping cost is not covered
Q2. What about the lead time?
A: Samples require 3-5 days
B: Mass production time is approximately 2-3 weeks
Q3. Do you have any MOQ limit for bulk order?
A: MOQ = 100 pieces
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples and small quantity trial orders: Courier shipping with door-to-door delivery; normally 6-10 days
B: Large quantity bulk orders: Air shipping or Sea shipping
Q5. How to proceed an order for Lithium ion cell?
A: Please confirm the cell models you are interested in
B: We send cell specifications and best quotation for your reference
C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly
D: After deposit or full payment is confirmed, production begins
Q6. Is it OK to print my logo on lithium ion cell product?
A: Yes, OEM services are welcomed
Q7: Do you offer guarantee for the products?
A: Yes, 2-5 Years Warranty
