NCM 18650 Lithium Ion Battery 2500mAh 2600mAh Cylindrical Battery Cell
Price:
$1.5/units 10-9999 units
MOQ:
10 units
Delivery Time:
7-15 Working Days
Brand:
THLB
Product Description
NCM 18650 Lithium Ion Battery 2500mAh 2600mAh Cylindrical Electric Vehicle Battery Cell
High-performance NCM 18650 lithium-ion battery cell designed for electric vehicles, featuring wide operating temperature range (-20°C to 60°C discharge) and excellent capacity options of 2500mAh or 2600mAh.
Product Specifications
| No. | Specification | Value |
|---|---|---|
| 1 | Capacity | Nominal: 2600mAh, Minimum: 2550mAh |
| 2 | Internal Resistance | 15-18mΩ |
| 3 | Nominal Voltage | 3.6V |
| 4 | Charging Voltage | 4.2V |
| 5 | Standard Charge Conditions | Current: 0.5C, Voltage: 4.2V, Cut-off: 0.02C |
| 6 | Max. Charging Current | 1C |
| 7 | Standard Discharge Conditions | Current: 0.5C, Cut-off Voltage: 2.75V |
| 8 | Max. Continuous Discharge Current | 3C |
| 9 | Working Temperature | Charge: 0°C to +55°C, Discharge: -20°C to +60°C |
| 10 | Storage Temperature | -20°C to +60°C |
| 11 | Weight | 43g |
| 12 | Dimension | Diameter: 18.3mm, Height: 65.2mm |
Key Advantages
- Lower Internal Resistance: Double electrode design ensures very low internal resistance of 15-19mΩ
- Advanced Manufacturing: State-of-the-art automatic production line guarantees higher consistency
- Superior Matching: Strict matching requirements with variations under 5mV, 3mΩ, and 20mAh
- High Performance: Excellent 3C max continuous discharge rate and long cycle life exceeding 2000 cycles at 80% depth of discharge
Electrical Performance Curves

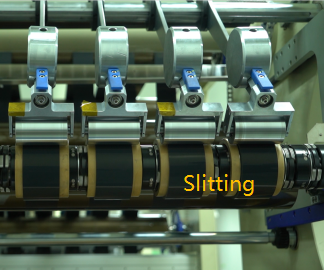

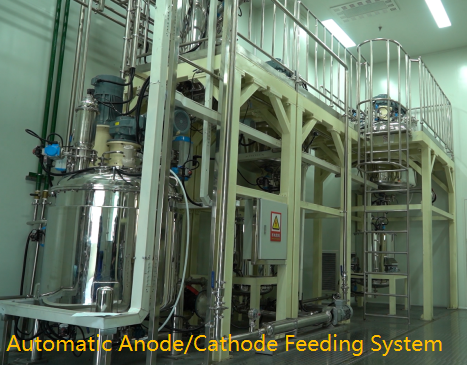

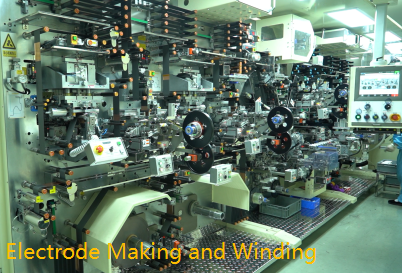

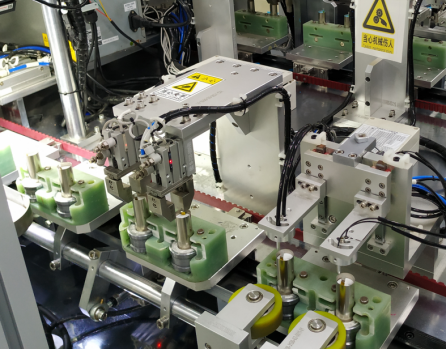

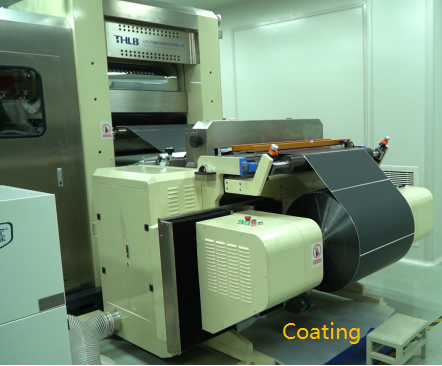

Automated Production Line
Packaging & Delivery
Our Company
Shandong TianHan New Energy Technology Co., Ltd specializes in research & development, manufacturing, sales, and service of lithium batteries, power lithium batteries, battery packs, and BMS systems. Our products are widely used in intelligent manufacturing, new energy electric vehicles, starting batteries, communication station batteries, e-bikes, solar-wind energy storage systems, and home-use energy storage solutions.
