Lead acid replacement battery 12V 100AH with BMS Lifepo4 high efficiency THLB Battery
Price:
$190/piece
MOQ:
2pcs
Delivery Time:
7-15 Working Days
Brand:
THLB
Product Description

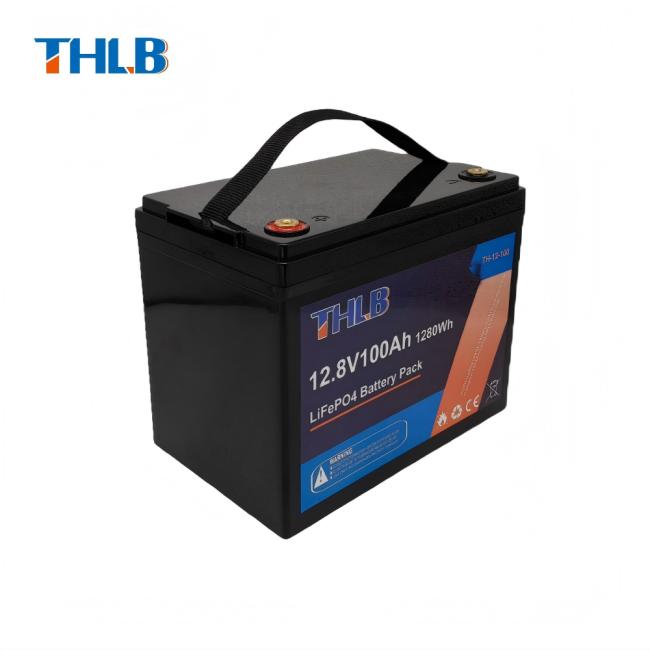

12V 100AH Lithium Ion Battery Pack with BMS
This high-performance 12V 100AH Lithium Ion Battery Pack features LiFePO4 chemistry with an internal resistance below 60 milliohms and delivers up to 1000+ cycles. As a direct manufacturer, we provide reliable power solutions with comprehensive BMS protection.
Customization Note: The following parameters are presented as reference examples. We specialize in designing, developing, and producing fully customized battery solutions tailored to your specific requirements.
Product Gallery
| Normal Voltage | 12.8V |
| Rated Capacity | 100±3Ah (0.2C) |
| Energy | Approximately 1290Wh |
| Cycle Life | ≥1500 cycles at 0.5C (80% DOD) |
| Charge Voltage | 14.4±0.1V |
| Charge Current | 50A |
| Max. Charge Current | 100A |
| Charge Temperature | 0℃ to 45℃ |
| Discharge Temperature | -20℃ to 60℃ |
| Storage Temperature | 0℃ to 40℃ |
| Material System | LiFePO4 |
| Material of Case | ABS |
| Dimensions | (330±1)mm × (172±1)mm × (215±2)mm |
| Weight | 12.7±0.3Kg |
| Terminal | M8 |
| Passive Protection Functions | Over charge protection, Over discharge protection, Temperature protection, Balanced function |
LiFePO4 Battery Features
- Reliable Quality: Comprehensive quality control from material selection through battery cell production to final assembly ensures full product traceability
- Long Cycle Life: Up to 10 times longer cycle life than lead acid batteries, minimizing replacement costs and reducing total cost of ownership
- Higher Power: Delivers twice the power of lead acid batteries with higher discharge rates and supports faster charging with higher charge currents
- Lighter Weight: Approximately 50% lighter than comparable lead acid batteries with wider operating temperature range (-20℃ to 60℃)
- Enhanced Safety: Eliminates risk of explosion or combustion due to high impact, overcharging, or short circuit situations
- Environmentally Friendly: Contains no poisonous or harmful substances in production or use, widely accepted globally
Manufacturer Profile
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A1: We are a professional rechargeable lithium-ion battery and LiFePO4 battery manufacturer located in Shandong, certified with ISO9001:2008 quality system.
Q2: Can I have samples to test? And what is lead time for sample order?
A2: Yes, we can supply samples with a lead time of 7-10 days. Buyer pays for sample cost and shipping cost.
Q3: Do you provide after-sales service?
A3: Yes, we offer a 3-year warranty. If any quality problems occur on our side during this period, we will send a replacement.
Q4: What is your company's advantage?
A4: We supply only high-quality lithium batteries, guarantee on-time shipment, and provide excellent after-sales service.
Q5: Do you accept OEM/ODM?
A5: Yes, OEM/ODM services are available.
Q6: What information do you need to make a customized battery pack?
A6: We need: 1. Battery pack dimensions (mm), 2. Capacity, 3. Voltage, 4. Max discharge current, 5. Cable and connector types, 6. Casing and terminals if required, 7. Any protection circuits needed.
Q7: Are your batteries real capacity?
A7: All our battery cells are Grade A, 100% new with real capacity.
Q8: What kind of certificates do you have?
A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3 certifications.
Q9: What is your lead time for mass production?
A9: Typically 25-30 days depending on the item after receiving down payment and sample confirmation.
