LiFePO4 Battery Pack 12 Volt 12 Amp lead Acid replacement batteries
Price:
$50/units 10-999 units
MOQ:
10 units
Delivery Time:
7-15 Working Days
Brand:
THLB
Product Description
6000 Cycles LiFePO4 Battery Pack 12 Volt 12 Amp 3.2 Volt 1800mAh 4S6P Battery
Internal Resistance below 40 milliohms 12 volt 12 amp hour LiFePO4 18650 3.2 volt 1800mAh 4S6P Lithium Ion Battery Pack
Factory Sale LiFePO4 battery pack lithium ion 12v 12ah
Advantages Over Lead Acid Batteries
- Longer cycle lifespan
- Smaller and lighter design
- Higher energy density for greater current output
- Superior temperature adaptability
- More environmentally friendly
- Extended warranty coverage
Note: The following parameters are customized for presentation purposes. We can design, develop, and produce any customized battery according to your specific requirements.

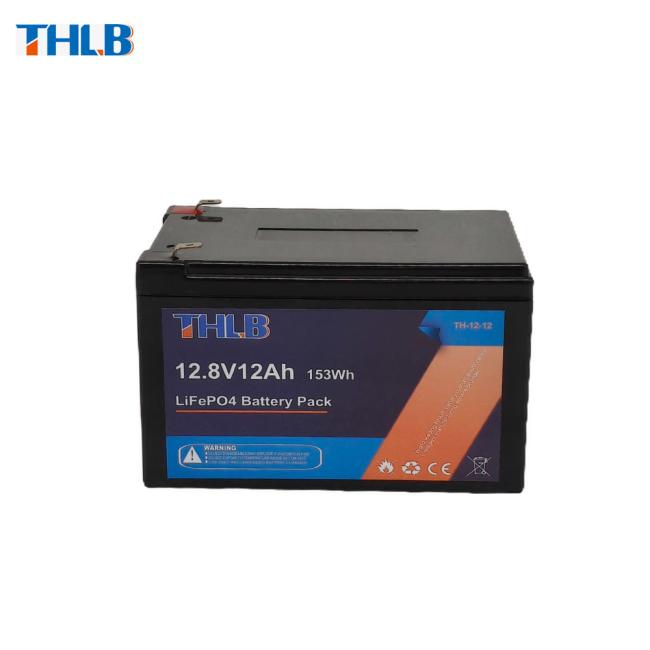

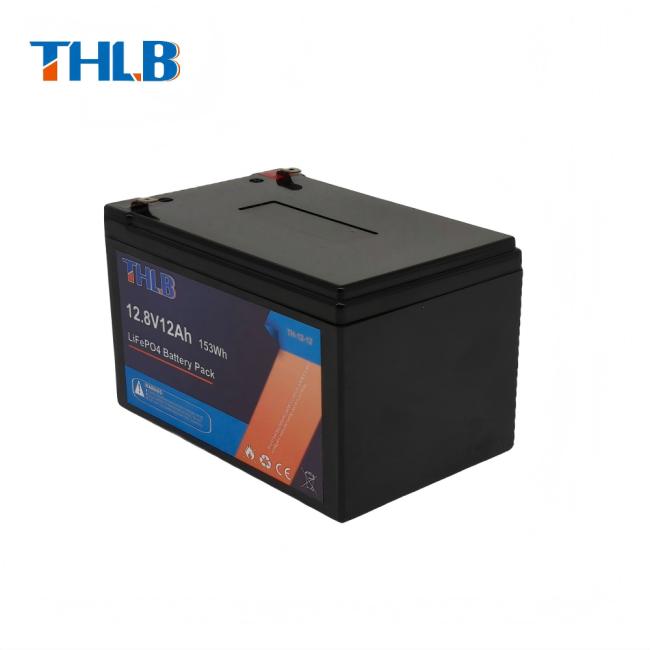

Product Images
Technical Specifications
| MAIN KIT INCLUDES | 1 x 12V12Ah LiFePO4 Battery Module 1 x 4S-15A PCM 1 x Plastic Battery Case 2 x F2 Terminals |
|---|---|
| Normal Voltage | 12.8V |
| Normal Capacity | 12Ah |
| Battery Energy | 153.6Wh |
| Battery Cycle Life | 1500 Times @80%DOD |
| Cell Configuration | LiFePO4 18650 3.2V 1800mAh-4S6P |
| Reference Battery Size | 151*99*99mm |
| Reference Battery Weight | 1.4kg |
| Battery Encapsulation | Plastic Case |
| Charge Voltage | 14.4V |
| Charge Mode | CC/CV |
| Normal Charge Current | <=10A |
| Normal Discharge Current | 6A |
| Max. Continuous Output Current | 12A |
| Passive Protection Function | Over charge protection; Over discharge protection; Over current protection, Charge balance function, etc |
| Operation Temperature Range | Charge: 0°C---45°C Discharge: -20°C---60°C |
| Battery Storage Temperature | -20°C---25°C |
| Individual Cell Approval | CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS |
Packing & Delivery
Company Profile
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A1: We are a professional rechargeable lithium-ion battery and LiFePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.
Q2: Can I have samples to test? And what is lead time for sample order?
A2: Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.
Q3: Do you provide after-sales service?
A3: Yes, the warranty is 3 years. If any quality problems occur on our side during this period, we can send a new one as replacement.
Q4: What is your company's advantage?
A4: We only supply high quality lithium batteries and guarantee on-time shipment. We also provide excellent after-sales service.
Q5: Do you accept OEM/ODM?
A5: Yes, it is available.
Q6: What information do you need to make a customized battery pack?
A6: We need the details below: Size of the battery pack in mm, Capacity of the Battery pack, Voltage of the battery pack, Max discharge current, Cable and connector types needed, Casing and Terminals if required, Any protection circuits you may need.
Q7: Are your battery real capacity?
A7: All of our battery cells are Grade A, 100% new with real capacity.
Q8: What kind of certificates do you have?
A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3.
Q9: What is your lead time for the mass production?
A9: Generally, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
