LiFePO4 THLB Battery 12.8V 16Ah Lithium Battery Pack For Golf Cart
Price:
$64/pieces 10-99 pieces
MOQ:
5 pieces
Delivery Time:
15-20 Working Days
Brand:
THLB
Product Description

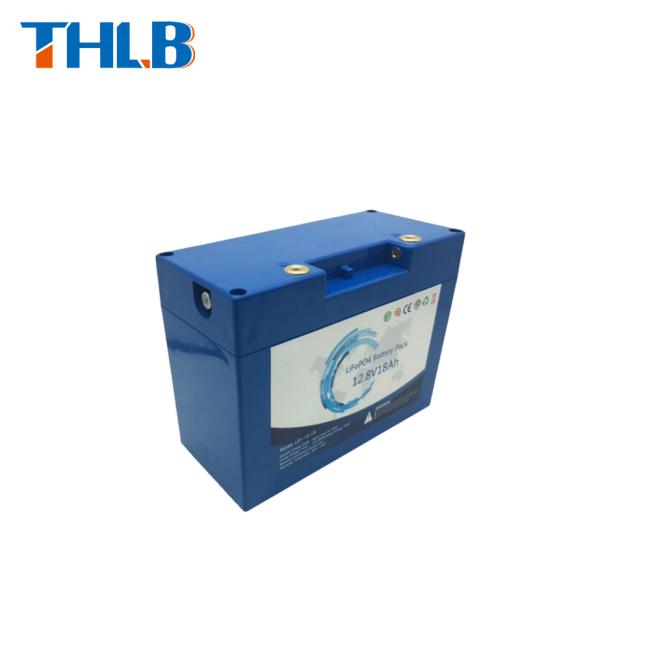

LiFePO4 THLB Battery 12.8V 16Ah Lithium Battery Pack For Golf Cart
LiFePO4 Cathode Materials 2.2 Kilogram 12.8V 16Ah Lithium Ion Battery Pack with 800 cycles, specifically designed for golf trolley operation.

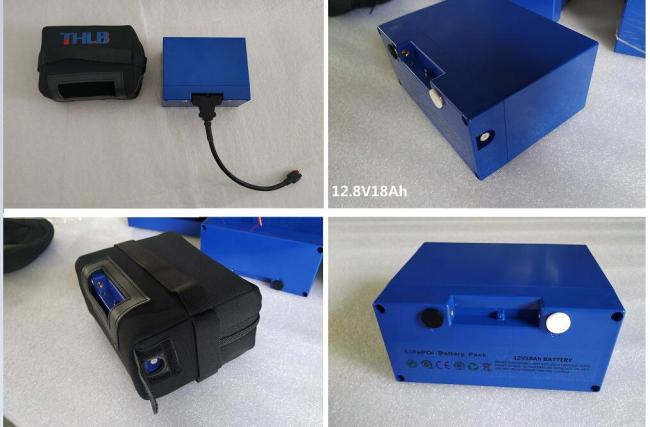

Main Kit Includes
| 1x 12.8V16Ah LiFePO4 Battery Module | 1x 4S-30A PCM | 1x Standard Golf Trolley ABS Battery Case | 1x T-bar + Anderson Connector |
Product Specification
| Nominal voltage | 12.8V |
| Normal Capacity | 16±0.5Ah (At 0.2C discharge rate) |
| Max discharge continuous current | ≤25A |
| Discharge cut-off voltage | About 10V |
| Charge voltage | 14.4±0.15V |
| Charge current | ≤3A |
| Charge mode | CC/CV, please use special lithium charger |
| Discharging Inner resistance | ≤70mΩ |
| Charge temperature | 0℃～+45℃ |
| Discharge temperature | When environment temperature is higher than 45℃, please ensure proper ventilation and heat dissipation |
| Operating humidity | RH≤85%, protect when humidity exceeds 85% |
| Storage temperature | 0℃～40℃ (Capacity 80%), recommended long-term storage: 15~25℃ |
| Storage humidity | RH≤50%, ensure sealed protection for oxidizable components |
| Protection functions | Over charge protection, Over discharge protection, Temperature protection, Balanced function |
| Shell material | ABS |
| Weight | 2.2±0.1kg |
| Size (L*W*H) | (168±1)mm × (128±1)mm × (75±2)mm |
| Cycle life | 800 cycles (capacity retention rate ≥80%) with standard charge/discharge at 0.2C rate |
| Individual Cell Approvals | CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS |
Our Company
Packing & Delivery
Frequently Asked Questions
Q1. Can I have few free samples for evaluation?
A: Yes, free samples are available, but shipping costs are not covered.
Q2. What about the lead time?
A: Samples require 3-5 days. Mass production time is approximately 2-3 weeks.
Q3. Do you have any MOQ limit for bulk order?
A: MOQ = 100 pieces.
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples and small trial orders: Courier shipping with door-to-door delivery (6-10 days). Bulk orders: Air or Sea shipping.
Q5. How to proceed an order for Lithium ion cell?
A:
- Confirm the cell models you're interested in
- We provide specifications and quotation
- Confirm quotation and quantity, issue PO
- After payment confirmation, production begins
Q6. Is it OK to print my logo on lithium ion cell product?
A: Yes, OEM services are welcome.
Q7: Do you offer guarantee for the products?
A: Yes, we provide 3-5 years warranty.
