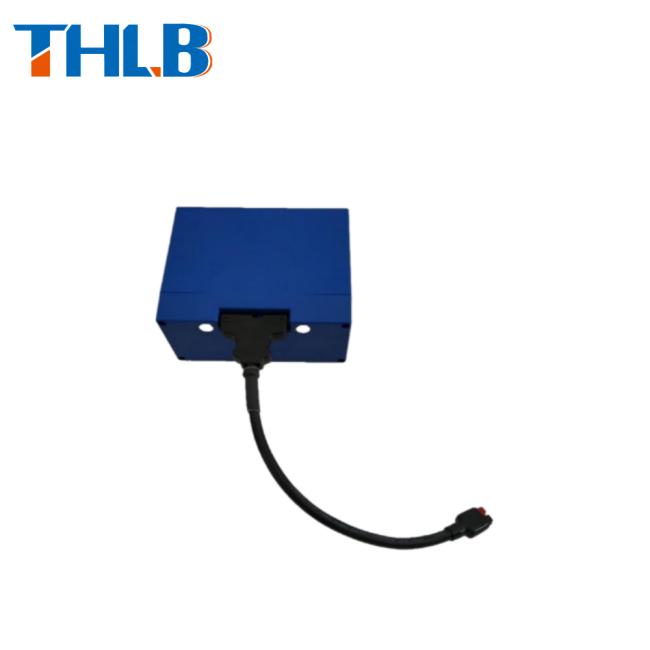

Customized 10Ah 24v Golf Cart Battery LiFePO4 24v Golf trolley Battery pack
Price:
$85/units 10-999 units
MOQ:
10 units
Delivery Time:
7-15 Working Days
Brand:
THLB
Product Description
Customized 10Ah 24V Golf Cart Battery LiFePO4 24V Golf Trolley Battery
High-performance 12.8V 22Ah LiFePO4 battery pack designed for electric golf trolleys, featuring internal resistance ≤40mΩ and 1000+ cycles long cycle life.
Product Specifications
| MAIN KIT INCLUDES | 1 x 12V22Ah LiFePO4 Battery Module 1 x 4S-25A PCM 1 x Plastic Battery Case |
|---|---|
| Normal Voltage | 12.8V |
| Normal Capacity | 22Ah |
| Battery Energy | 768Wh |
| Inner Resistance | < 40mΩ |
| Battery Cycle Life | 2000 Times @100%DOD 6000 Times @80%DOD |
| Cell Configuration | LiFePO4 26650 3.2V 3600mAh-4S6P |
| Reference Battery Size | (260±1)*(168±1)*(212±1) mm |
| Reference Battery Weight | 2.5±0.1 kg |
| Battery Encapsulation | Plastic Case |
| Charge Voltage | 14.4V |
| Charge Mode | CC/CV |
| Normal Charge Current | <=20A |
| Normal Discharge Current | 20A |
| Max. Continuous Output Current | 20A |
| Max. Continuous Output Power | 288W |
| Passive Protection Function | Over charge protection; Over discharge protection; Over current protection, Charge balance function |
| Operation Temperature Range | Charge: 0°C---45°C Discharge: -20°C---60°C |
| Battery Storage Temperature | -20°C---25°C |
Additional Product Models
Packing & Delivery
Company Profile
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A1: We are a professional rechargeable lithium-ion battery and LiFePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.
Q2: Can I have samples to test? And what is lead time for sample order?
A2: Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.
Q3: Do you provide after-sales service?
A3: Yes, the warranty is 3 years. If any quality problems on our side in this period, we can send new one as replacement.
Q4: What is your company's advantage?
A4: We only supply high level quality of lithium battery and we guarantee on-time shipment. We also provide excellent after sales service.
Q5: Do you accept OEM/ODM?
A5: Yes, it is available.
Q6: What information do you need to make a customized battery pack?
A6: We need the details below:
- Size of the battery pack you need in mm
- Capacity of the Battery pack
- Voltage of the battery pack
- Max discharge current
- Cable and connector types you need
- Casing and Terminals if required
- Any protection circuits you may need
Q7: Are your battery real capacity?
A7: All of our battery cells with Grade A, 100% new and real capacity.
Q8: What kind of certificates do you have?
A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3.
Q9: What is your lead time for the mass production?
A9: Generally speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
