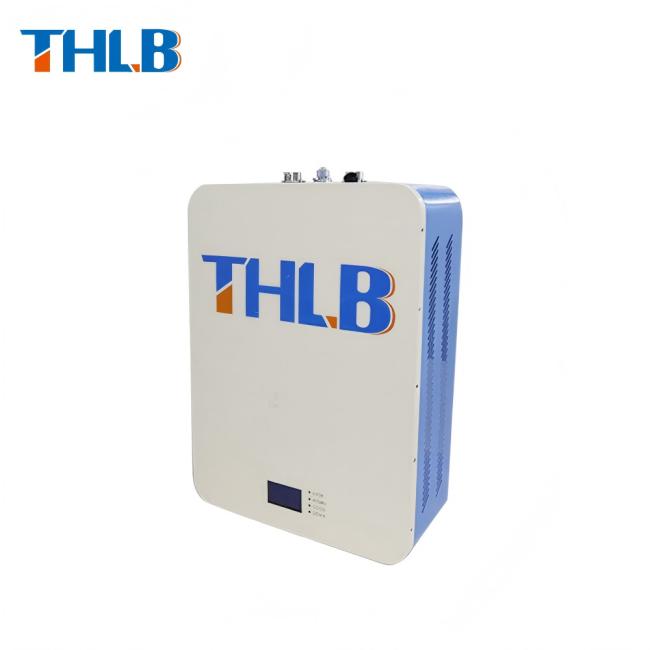

100Ah 48V Lifepo4 Battery Pack 5kwh 7kwh 10kwh Solar energy Storage Battery
Price:
price in negotiation
MOQ:
1piece
Delivery Time:
25-30 Working Days
Brand:
THLB
Product Description
48V Li-Ion Solar Storage Battery Pack
High-performance 100A discharge current 48V Li-Ion battery pack with 200Ah capacity, designed for home solar storage systems. Available in 5kWh, 7kWh, and 10kWh configurations with stackable power wall capability.
Customization Available: These parameters are designed as examples for our customers. We specialize in producing fully customized battery solutions according to your specific requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Normal Voltage | 51.2V |
| Rated Capacity | 200Ah |
| Energy | About 10KWh |
| Factory Voltage | 51V-53V (40-60%) |
| Voltage at End of Discharge | 40-44V |
| Charging Voltage | 56-58V |
| Internal Impedance | ≤60mΩ |
| Standard Charge | Constant Current 40A, Constant Voltage (see No.5), 0.02CA cut-off, Charge time: Approx 6h |
| Limiting Current | 20A |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Operation Temperature Range | Charge: 0~45℃, Discharge: -20~55℃ |
| Storage Temperature Range | Less than 12 months: -10~35℃ Less than 3 months: -10~45℃ Less than 7 days: -20~65℃ |
| Dimensions | 680*485*180 (220)mm |
| Weight | Approx: 107kg |
| Communication | RS485 |
Packaging & Delivery
Manufacturer Profile
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A1: We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.
Q2: Can I have samples to test? And what is lead time for sample order?
A2: Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.
Q3: Do you provide after-sales service?
A3: Yes, the warranty is 3 years. If any quality problems occur on our side during this period, we can send a new one as replacement.
Q4: What is your company's advantage?
A4: We only supply high level quality lithium batteries, guarantee on-time shipment, and provide excellent after-sales service.
Q5: Do you accept OEM/ODM?
A5: Yes, OEM/ODM services are available.
Q6: What information do you need to make a customized battery pack?
A6: We need the following details: 1. Size of the battery pack in mm, 2. Capacity of the battery pack, 3. Voltage of the battery pack, 4. Max discharge current, 5. Cable and connector types, 6. Casing and terminals if required, 7. Any protection circuits you may need.
Q7: Are your batteries real capacity?
A7: All of our battery cells are Grade A, 100% new with real capacity.
Q8: What kind of certificates do you have?
A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3 certifications.
Q9: What is your lead time for mass production?
A9: Generally, about 25-30 days depending on different items after receiving down payment and confirmation about the samples.
