14Ah 18Ah 20Ah Electric Bicycle Lithium Battery 32V 36V 48V Lithium Battery
Price:
$78/pieces 10-499 pieces
MOQ:
10 pieces
Delivery Time:
7-15 Working Days
Brand:
THLB
Product Description
High-Capacity Electric Bicycle Lithium Batteries

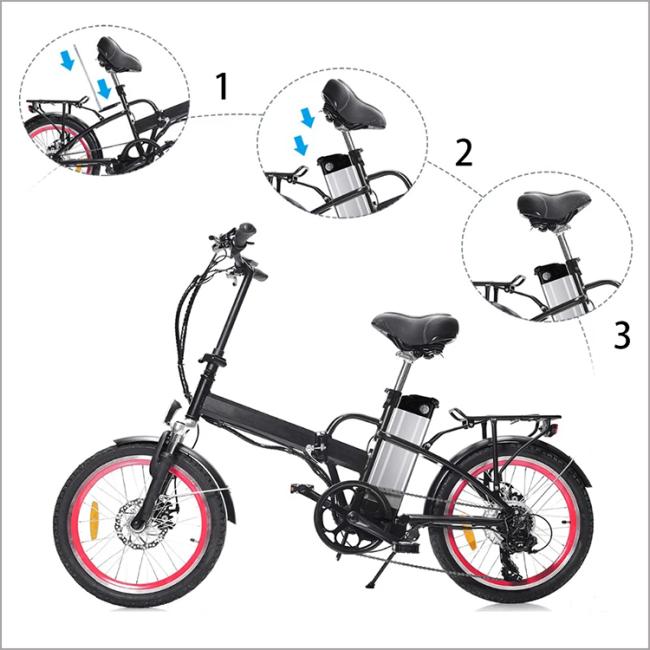

14Ah, 18Ah, and 20Ah electric bike mountain lithium batteries available in 32V, 36V, and 48V configurations. Removable design with approximate weight of 3.5kg and 800 to 1000 charge cycles.
About THLB Enterprise
THLB specializes in research, design, manufacturing, sales, and service of lithium-ion batteries, power batteries, battery packs, and BMS battery management systems. Our products serve various applications including intelligent manufacturing, new energy automotive power batteries, automotive starting power supply, communication base station backup power supply, electric bicycles, wind and solar energy storage, and home energy storage battery system solutions.
THLB has implemented leading R&D systems and test equipment with established process flows and strict quality management systems. Our advanced automated lithium battery production lines and PACK automatic production lines ensure high safety, reliability, and stability for all products.
Technical Specifications
| Parameter | Specifications | Note |
|---|---|---|
| Capacity | Nominal: 3600 mAh Minimum: 3500 mAh |
0.5C |
| Alternating Internal Resistance | Max 18mΩ | AC 1 kHZ |
| Nominal Voltage | 3.2 V | |
| Charging Voltage | 3.65±0.05 V | |
| Standard Charge Conditions | Current: 0.5C (1800 mA) Voltage: 3.65V Cut-off Current: 72±5mA |
25°C±2°C 0.02C |
| Max Charging Current | 0°C≤T≤5°C: 0.2C (720 mA) 5°C≤T≤15°C: 0.5C (1800mA) 15°C≤T≤55°C: 1C (3600 mA) |
|
| Standard Discharge Conditions | Current: 0.5C (1800 mA) Cut-off Voltage: 2.5±0.05V |
25°C±2°C |
| Max Continuous Discharge Current | -20°C≤T≤5°C: 0.5C (1800 mA) 5°C≤T≤45°C: 3C (10800mA) 45°C≤T≤75°C: 1C (3600 mA) |
|
| Max Pulse Discharge Current | 20A (5s) | |
| Working Temperature | Charge: 0～55°C Discharge: -20~75°C |
|
| Storage Temperature | 1 month: -20~60°C 3 months: -20~40°C 12 months: -20~20°C |
|
| Weight | ≤87g | |
| Dimension | Height: ≤65.2mm Diameter: 26.2±0.2mm |
Figure 1 |
| Appearance | No rupture, no scratch, no deformation, no stain, no electrolyte leakage |
