10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery
Price:
$90/pieces 2-29 pieces
MOQ:
2 pieces
Delivery Time:
15-20 Working Days
Brand:
THLB
Product Description
36V 10Ah NCM Electric Bicycle Lithium Battery
High-performance NCM 3.7V battery cell electric bicycle conversion kit with 36V 14.5Ah lithium battery capacity. Premium e-bike battery solution for reliable power and extended range.
Available Configurations
THLB 36V, 48V, 52V, 72V batteries available in 7.8Ah, 10Ah, 13Ah, 15.6Ah, 18.2Ah, and 20.8Ah capacities
Key Advantages
- No memory effect - charging interruptions do not harm the battery
- Comprehensive short circuit protection
- Overcharge and over discharge protection
- Excellent low temperature resistance
- Advanced overvoltage protection
- Reliable overcurrent protection
- Extended service life
- Easy installation and setup

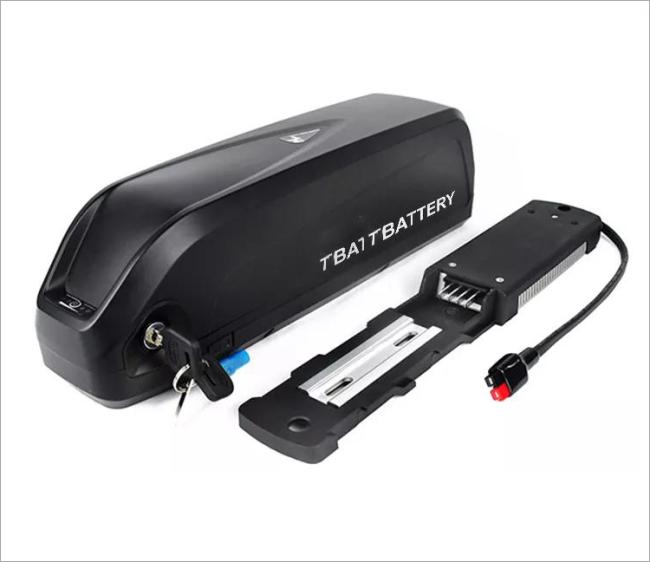

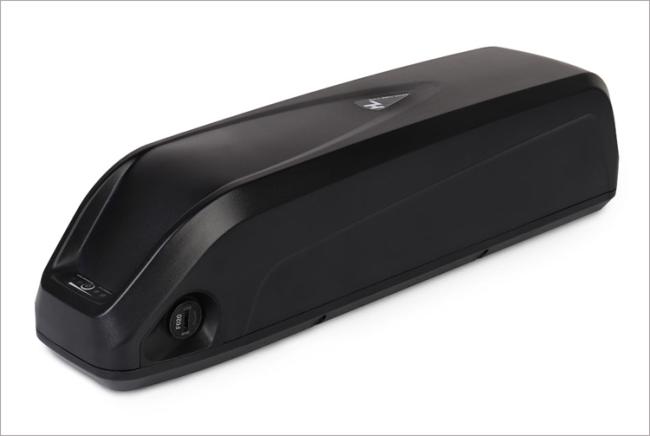

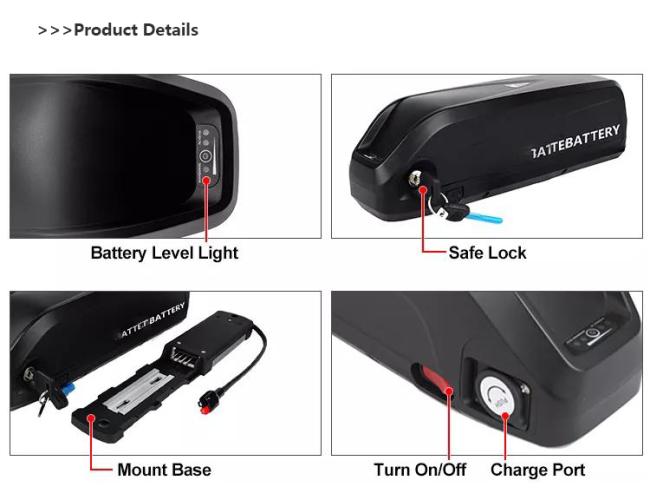

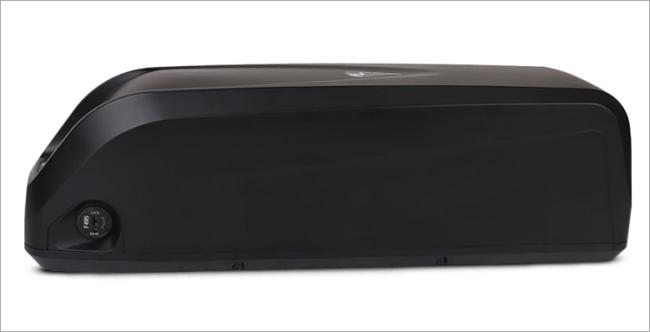

Product Images
Technical Specifications
| Parameter | Details |
|---|---|
| Nominal Voltage | 36V |
| Typical Capacity | 10Ah |
| Array Mode | 10S4P |
| Typical Capacity | 10±0.2Ah (At 0.2C discharge rate) |
| Discharge | |
| Working Current | ≤ 10A |
| Over Current Protection Current | 20±3A |
| Cut-off Voltage | About 35V |
| Terminal | 14AWG, length 300mm |
| Charge | |
| Voltage | 42.0±0.5V |
| Max Charging Current | ≤10A |
| Charge Mode | CC/CV, please use a special lithium charger |
| Charging Cut-off Current | About 0.5A |
| Terminal | DC2.1 |
| Operation Temperature | |
| Charge | 0℃～+45℃ |
| Discharge | -20℃～+60℃ |
| Storage Temperature | -20℃～60℃ |
| Discharging Inner Resistance | ≤ 150mΩ |
| Protection Function | Overcharge protection, over discharge protection, temperature protection and short circuit protection |
| Shell Material | SSE-046/ABS |
| Weight | 2±0.5Kg |
| Size (L*W*H) | (368±2)mm *(91±2)mm*(111±2)mm |
| Cycle Life | Not less than 500 cycles with capacity retention rate ≥80% |
Packaging & Delivery
Manufacturer Profile
Professional manufacturer of rechargeable lithium-ion and LifePO4 batteries located in Shandong, certified with ISO9001:2008 quality system.
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A1: We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.
Q2: Can I have samples to test? And what is lead time for sample order?
A2: Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.
Q3: Do you provide after-sales service?
A3: Yes, the warranty is 3 years. If any quality problems occur on our side during this period, we can send a new one as replacement.
Q4: What is your company's advantage?
A4: We only supply high quality lithium batteries and guarantee on-time shipment. We also provide excellent after-sales service.
Q5: Do you accept OEM/ODM?
A5: Yes, OEM/ODM services are available.
Q6: What information do you need to make a customized battery pack?
A6: We need: 1. Battery pack size in mm, 2. Capacity, 3. Voltage, 4. Max discharge current, 5. Cable and connector types, 6. Casing and terminals if required, 7. Any protection circuits needed.
Q7: Are your batteries real capacity?
A7: All of our battery cells are Grade A, 100% new with real capacity.
Q8: What kind of certificates do you have?
A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3 certifications.
Q9: What is your lead time for the mass production?
A9: Generally about 25-30 days depending on different items after receiving down payment and sample confirmation.
