THLB Deep Cycle Solar Battery 12v 24v 100ah 200ah 600ah Lifepo4 Battery Pack
Price:
$98/pieces 10-49 pieces
MOQ:
2 pieces
Delivery Time:
7-15 Working Days
Brand:
THLB
Product Description

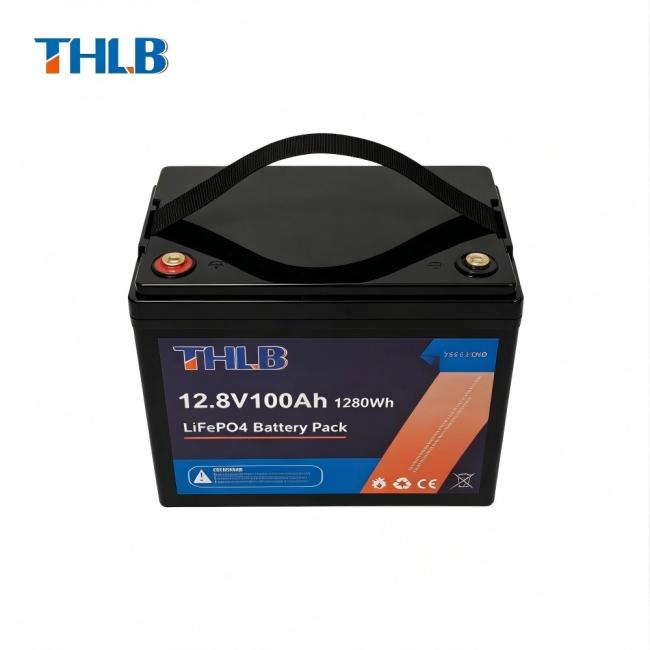

THLB Deep Cycle Solar Battery 12V 24V 100Ah 200Ah 600Ah LiFePO4 Battery Pack
2000+ cycle rechargeable deep cycle solar energy storage lithium iron phosphate battery pack designed for reliable power in solar applications.
Main Kit Components
| 1 x 24V20Ah LiFePO4 Battery Module | 1 x 4S-20A PCM |
| 1 x Plastic Battery Case | 2 x M8 Terminals |
Product Specifications
| Normal Voltage | 24V |
| Normal Capacity | 20Ah |
| Battery Energy | 480Wh |
| Inner Resistance | < 60mΩ |
| Battery Cycle Life | 2000 Times @100%DOD 6000 Times @80%DOD |
| Cell Configuration | LiFePO4 26650 3.2V 3200mAh-8S7P |
| Reference Battery Size | (168±1)*(128±1)*(102±1) mm |
| Reference Battery Weight | 2.9±0.2 kg |
| Battery Encapsulation | Plastic Case |
| Charge Voltage | 28.8V |
| Charge Mode | CC/CV |
| Normal Charge Current | <=50A |
| Normal Discharge Current | 10A |
| Max. Continuous Output Current | 20A |
| Max. Continuous Output Power | 480W |
| Passive Protection Function | Over charge protection; Over discharge protection; Over current protection, etc |
| Operation Temperature Range | Charge: 0°C---45°C Discharge: -20°C---60°C |
| Battery Storage Temperature | -20°C---25°C |
| Individual Cell Approval | CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS |
Safety Performance Classification
- Resistance to heavy loads - tested to not ignite or explode
- Resistance to thermal shock - tested to not ignite or explode
- Anti-overcharge - tested to not ignite or explode
- Resistance to overdischarge - tested to not ignite or explode
- Resistance to short circuit - tested to not ignite or explode
- High temperature storage - tested to not leak, smoke, catch fire or explode
- Anti-heating - tested with no explosion battery penetration
- Anti-puncture - tested to not ignite or explode
- Anti-extrusion - tested to not ignite or explode
- Resistance to low pressure - tested to not leak, smoke, catch fire or explode
- Constant damp heat - maintains capacity and appearance integrity
- Anti-vibration - maintains functionality and appearance
- Anti-collision - maintains functionality and appearance
- Temperature cycling - maintains capacity and structural integrity
- Flame retardant properties - meets GB/T2408-2008 standards
- Insulation resistance - meets safety requirements for metal cases
Our Company
Packing & Delivery
Frequently Asked Questions
Q1. Can I have few free samples for evaluation?
A: Yes, free samples are ok, but not covering shipping cost
Q2. What about the lead time?
A: Samples needs 3-5 days
B: Mass production time is approx 2-3 weeks
B: Mass production time is approx 2-3 weeks
Q3. Do you have any MOQ limit for bulk order?
A: MOQ=100pcs
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days
B: Big quantity bulk order: Air shipping or Sea shipping
B: Big quantity bulk order: Air shipping or Sea shipping
Q5. How to proceed an order for Lithium ion cell?
A: Pls confirm the cell models that you are interested in
B: We send cell specifications and best quotation to you for reference
C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly
D: After deposit or full payment confirmed, production started
B: We send cell specifications and best quotation to you for reference
C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly
D: After deposit or full payment confirmed, production started
Q6. Is it OK to print my logo on lithium ion cell product?
A: Yes. OEM is welcomed
Q7: Do you offer guarantee for the products?
A: Yes, 3-5 Years Warranty
