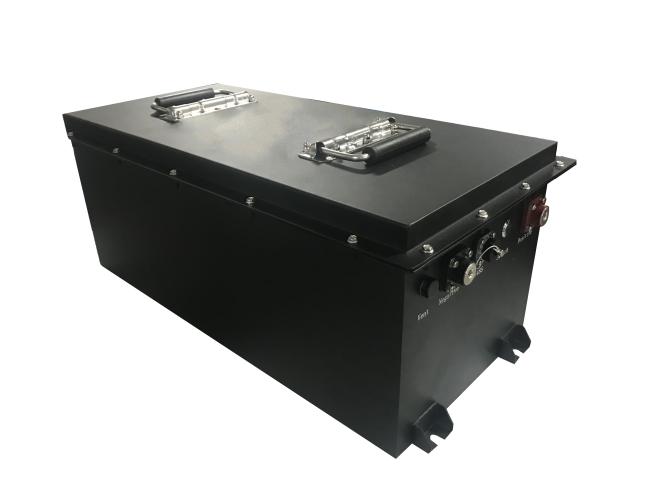

THLB Factory Supply 51.2V 100Ah High-Efficiency LiFePO4 Deep Cycle Golf Cart Lithium Ion Battery Pack
Price:
$695/pieces 10-49 pieces
MOQ:
2pieces
Delivery Time:
20-25 Working Days
Brand:
THLB
Product Description
THLB Factory Supply 51.2V 100Ah High-Efficiency LiFePO4 Deep Cycle Golf Cart Lithium Ion Battery Pack
High-performance 51.2V LiFePO4 rechargeable lithium ion battery available in 50Ah, 80Ah, and 100Ah capacities. Engineered specifically for electric vehicle applications and golf cart solutions.
Main Kit Components
- 1 x 51.2V 100Ah LiFePO4 Battery Module
- 1 x 16S100A PCM
- 1 x Metal Battery Case
Product Specifications
| Specification | Value |
|---|---|
| Normal Voltage | 51.2V |
| Normal Capacity | 100Ah |
| Battery Energy | 5120Wh |
| Inner Resistance | < 50mΩ |
| Battery Cycle Life | 2000 Times @100%DOD 4000 Times @80%DOD |
| Reference Battery Weight | 46±0.1 kg |
| Battery Encapsulation | Metal Case |
| Charge Voltage | 57.6V |
| Charge Mode | CC/CV |
| Normal Charge Current | 50A |
| Normal Discharge Current | 100A |
| Passive Protection Function | Over charge protection; Over discharge protection; Over current protection, etc |
| Operation Temperature Range | Charge: 0°C---45°C Discharge: -20°C---60°C |
| Battery Storage Temperature | -20°C---25°C |
Safety Performance Classification
- Resistance to heavy loads - tested according to regulations, no ignition or explosion
- Resistance to thermal shock - tested according to regulations, no ignition or explosion
- Anti-overcharge - tested according to regulations, no ignition or explosion
- Resistance to overdischarge - tested according to regulations, no ignition or explosion
- Resistance to short circuit - tested according to regulations, no ignition or explosion
- High temperature storage - tested according to regulations, no leakage, smoke, fire or explosion
- Anti-heating - tested according to regulations, no battery penetration through screen
- Anti-puncture - tested according to regulations, no ignition or explosion
- Anti-extrusion - tested according to regulations, no ignition or explosion
- Resistance to low pressure - tested according to regulations, no leakage, smoke, fire or explosion
- Constant damp heat - tested according to regulations, no deformation, rust, smoke or explosion
- Anti-vibration - tested according to regulations, no damage, leakage, smoke or explosion
- Anti-collision - tested according to regulations, no damage, leakage, smoke or explosion
- Temperature cycling - tested according to regulations, no leakage, smoke, ignition or explosion
- Flame retardant properties - complies with GB/T2408-2008 FH-1 and FV-0 requirements
- Insulation resistance - metal case insulation resistance not less than 2 MΩ
Additional Product Images
Our Company
Frequently Asked Questions
Q1. Can I have few free samples for evaluation?
Yes, free samples are ok, but not covering shipping cost
Q2. What about the lead time?
Samples need 3-5 days. Mass production time is approximately 2-3 weeks.
Q3. Do you have any MOQ limit for bulk order?
MOQ = 100pcs
Q4. How do you ship the goods and how long does it take to arrive?
Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days. Big quantity bulk order: Air shipping or Sea shipping.
Q5. How to proceed an order for Lithium ion cell?
Please confirm the cell models that you are interested in. We send cell specifications and best quotation to you for reference. You confirm the quotation and inform quantity or issue PO, we will send PI accordingly. After deposit or full payment confirmed, production started.
Q6. Is it OK to print my logo on lithium ion cell product?
Yes. OEM is welcomed.
Q7: Do you offer guarantee for the products?
Yes, 3-5 Years Warranty.
