THLB 12.8V 12AH Lifepo4 Battery Pack

Price Negotiable

Price: $28/pieces 10-49 pieces

MOQ: 5 pieces

Delivery Time: 7-15 Working Days

Brand: THLB

Product Description

Rechargeable THLB Battery 12.8V 7.5AH 8AH 12AH Lifepo4 Battery Pack

High-capacity rechargeable 12.8V LiFePO4 lithium ion battery pack with extended cycle life and professional-grade performance characteristics.

THLB Battery product specifications diagram

THLB Battery technical specifications chart

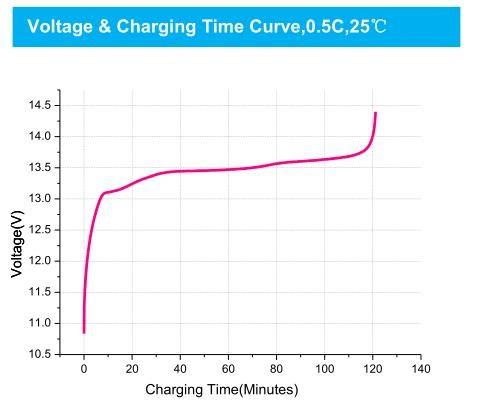

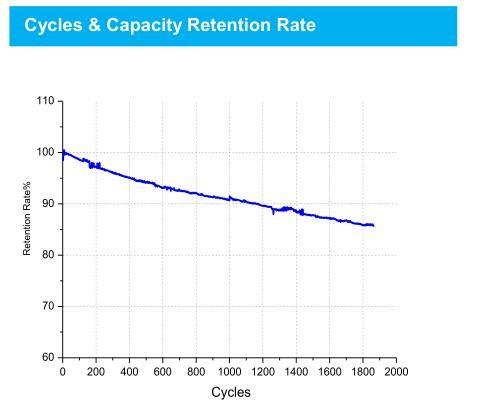

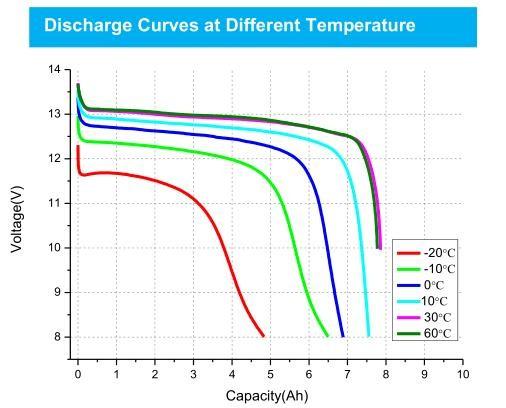

THLB Battery performance characteristics

Package Contents

Item	Quantity
12.8V 12Ah LiFePO4 Battery Module	1
PCM (Protection Circuit Module)	1
Plastic Battery Case	1
T2 Terminals	2

Product Specifications

Normal Voltage	12.8V
Normal Capacity	12Ah
Battery Energy	153Wh
Inner Resistance	< 90mΩ

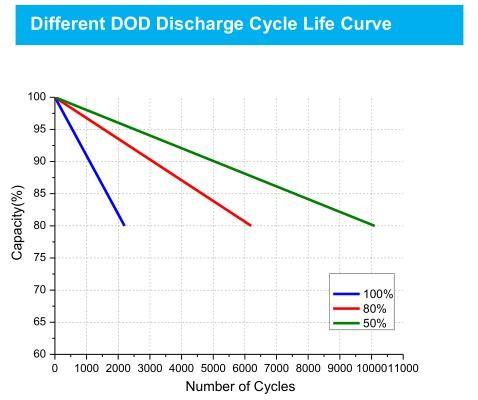

Battery Cycle Life	2000 Times @100%DOD 6000 Times @80%DOD
Cell Configuration	LiFePO4 32700 3.2V 6000mAh-4S2P
Reference Battery Size	(151.5±1)(99±1)(100±1) mm
Reference Battery Weight	1.4±0.1 kg
Battery Encapsulation	Plastic Case
Charge Voltage	14.4V
Charge Mode	CC/CV
Normal Charge Current	1.5A
Normal Discharge Current	4A
Max. Continuous Output Current	12A
Passive Protection Function	Over charge protection; Over discharge protection; Over current protection, etc
Operation Temperature Range	Charge: 0°C - 45°C Discharge: -20°C - 60°C
Battery Storage Temperature	-20°C - 25°C
Individual Cell Approval	CE / RoHS / UN38.3

Safety Performance Classification

Resistance to heavy loads - tested according to regulations, no ignition or explosion
Resistance to thermal shock - tested according to regulations, no ignition or explosion
Anti-overcharge - tested according to regulations, no ignition or explosion
Resistance to overdischarge - tested according to regulations, no ignition or explosion
Resistance to short circuit - tested according to regulations, no ignition or explosion
High temperature storage - tested according to regulations, no leakage, smoke, fire or explosion
Anti-heating - tested according to regulations, no battery penetration through screen
Anti-puncture - tested according to regulations, no ignition or explosion
Anti-extrusion - tested according to regulations, no ignition or explosion
Resistance to low pressure - tested according to regulations, no leakage, smoke, fire or explosion
Constant damp heat - tested according to regulations, no deformation, rust, smoke or explosion
Anti-vibration - tested according to regulations, no damage, leakage, smoke or explosion
Anti-collision - tested according to regulations, no damage, leakage, smoke or explosion
Temperature cycling - tested according to regulations, no leakage, smoke, ignition or explosion
Flame retardant properties - meets GB/T2408-2008 FH-1 and FV-0 requirements
Insulation resistance - metal case insulation resistance not less than 2 MΩ

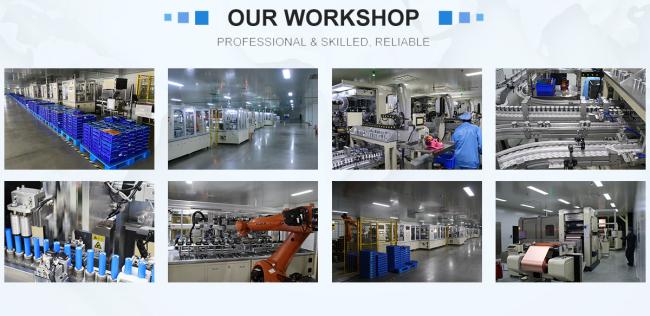

Our Company

Packing & Delivery

Frequently Asked Questions

Q1. Can I have few free samples for evaluation?

A: Yes, free samples are available, but shipping costs are not covered.

Q2. What about the lead time?

A: Samples require 3-5 days. Mass production time is approximately 2-3 weeks.

Q3. Do you have any MOQ limit for bulk order?

A: Minimum order quantity is 100 pieces.

Q4. How do you ship the goods and how long does it take to arrive?

A: Samples and small trial orders: Courier shipping with door-to-door delivery (6-10 days). Bulk orders: Air or sea shipping.

Q5. How to proceed an order for Lithium ion cell?

A: Confirm cell models of interest, receive specifications and quotation, confirm order quantity, issue purchase order, and production begins after deposit or full payment confirmation.

Q6. Is it OK to print my logo on lithium ion cell product?

A: Yes, OEM services are welcomed.

Q7: Do you offer guarantee for the products?

A: Yes, 3-5 Years Warranty included.
