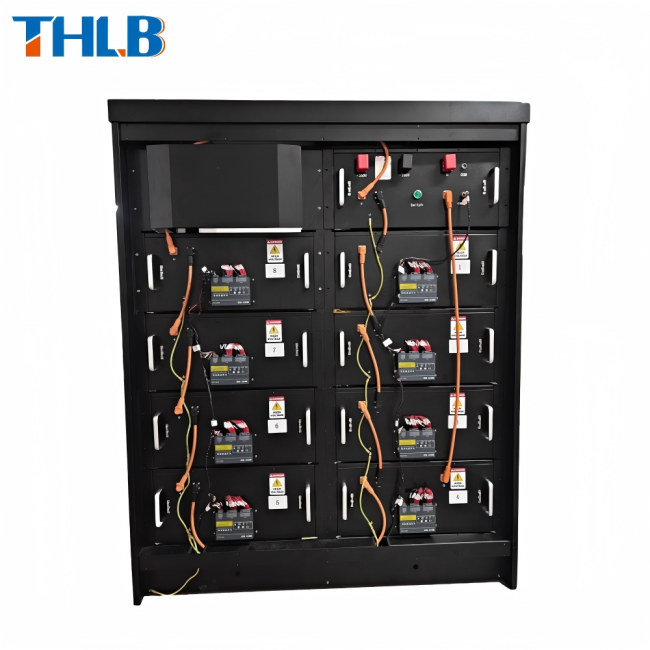

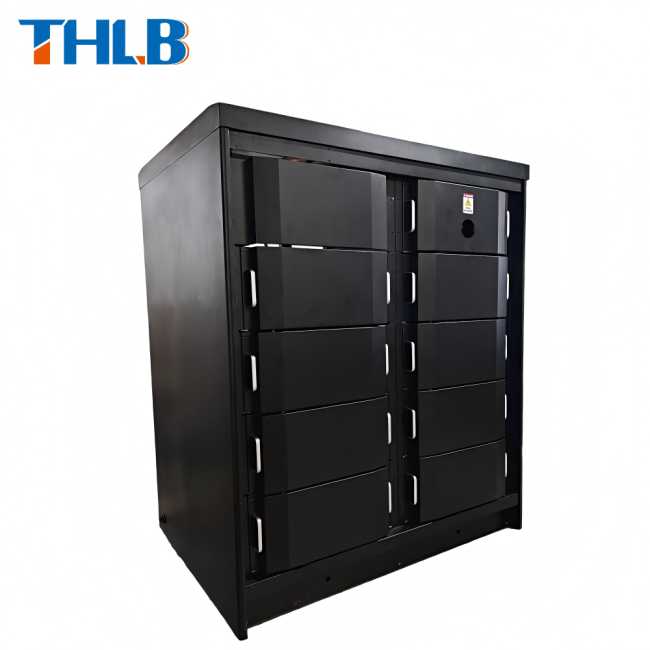

New Lithium Battery 723.2V 300Ah (216.96kWh) high-voltage modular energy-storage cabinet
The battery system consists of two high-voltage battery strings, providing a nominal voltage of ±361.6 V and a nominal capacity of 300 Ah. It is suitable for dual-bus high-voltage DC UPS applications, offering long cycle life, high safety, and fast charge/discharge capability. The system can continuously support a 80 kVA UPS at full load for over 2.5 hours.
The complete high-voltage battery system (723.2 V / 300 Ah) adopts a dual-string architecture composed of two independent 361.6 V / 300 Ah battery assemblies. The corresponding bus voltages are:
Positive bus: +361.6 V
Negative bus: –361.6 V
|
|
Project parameters |
Unit |
Specification |
Note |
|
|
Cell |
Battery Type |
/ |
li- iron phosphate(LFP) |
|
|
|
Nominal capacity |
Ah |
300 |
25℃/0.2C |
||
|
Nominal voltage |
V |
3.2 |
|
||
|
Nominal energy |
kWh |
0.96 |
|
||
|
Voltage range |
V |
2.5~3.65 |
|
||
|
Module |
Series-parallel connection |
/ |
28S1P |
29S1P |
6 28S 2 29S |
|
Nominal capacity |
Ah |
300 |
|||
|
Nominal voltage |
V |
89.6 |
92.8 |
||
|
Nominal energy |
kWh |
26.88 |
27.84 |
||
|
Voltage range |
V |
70~102.2 |
72.5~105.85 |
||
|
Size(L*W*H) |
mm |
600*950*280 |
|
||
|
Weight |
Kg |
190 |
|
||
|
Battery system |
Series-parallel connection |
/ |
226S cell |
|
|
|
|
Nominal capacity |
Ah |
300 |
|
|
|
|
Nominal voltage |
V |
723.2 |
±361.6V neutral point N |
|
|
|
Nominal energy |
kWh |
217 |
|
|
|
|
Voltage range |
V |
565~824.9 |
282.5~412.45 neutral point N |
|
|
|
Max. Charge/Discharge Current |
A |
125 |
|
|
|
|
Communication Protocol |
/ |
CAN |
|
|
|
|
Protection |
/ |
Overcurrent/ overvoltage/short circuit/ balanced, etc. |
|
|
|
|
Monitoring |
/ |
Display/PC |
|
|
|
|
Cycle Life |
times |
4000 |
25℃,0.2C 100%DOD,80%EOL |
|
|
|
Ingress Protection Grade |
/ |
IP54 |
|
|
|
|
Charging temperature range |
℃ |
0~55 |
|
|
|
|
Discharging temperature range |
℃ |
-20~60 |
|
|
|
|
Weight |
Kg |
1550 |
8 modules+1 high voltage box |
|
