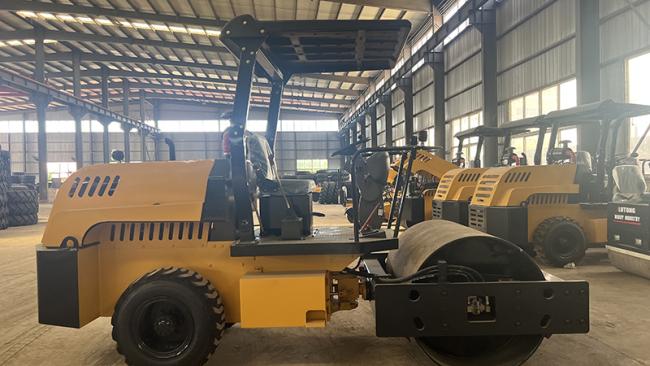

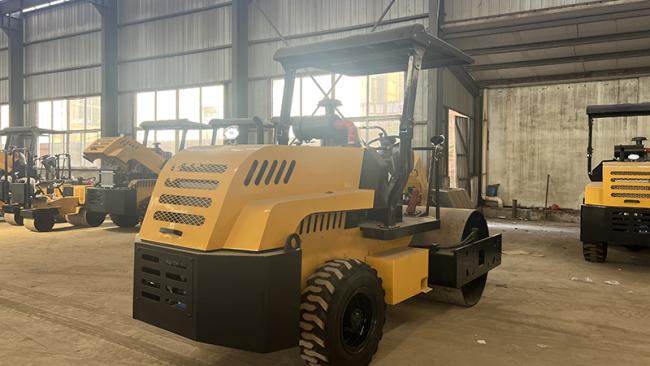

LT304 Tire-Driven Single Drum Vibratory Roller
The LT304 Tire-Driven Single Drum Vibratory Roller is suitable for foundation and pavement compaction tasks in municipal roads, highway maintenance, construction, stadiums, and other industrial sites. It features mechanical drive, hydraulic vibration, and articulated steering. It is equipped with the Sida SD4 National IV engine.
Main Features:
▲ Mechanically driven rear tires, stable performance, safe and reliable
▲ Hydraulic vibration, high excitation force, high compaction
▲ Articulated steering, flexible maneuverability
▲ High work efficiency, good economic performance
▲ Large opening engine hood, easy maintenance and servicing

Main Parameters:
Model: LT304
Operating Weight: 4000 kg
Compaction Width: 1280 mm
Vibration Force: 45 kN
Vibration Frequency: 46 Hz
Theoretical Amplitude: 0.5 mm
Travel Speed (1st/2nd gear): 2.4/6.0 km/h
Climbing Ability: 30%
Diesel Engine Model: SD4DW3D
Diesel Engine Rated Speed: 2400 r/min
Diesel Engine Power: 36.8 kW
Overall Dimensions (L×W×H): 4040×1500×2560 mm
Wheelbase: 2200 mm
