High Precision Sealing Ring Glass Disc Visual Inspection Machine 100-400Pcs/Min Customizable
High-precision Sealing Ring Glass Disc Screening Machine,detection Speed:100-400Pcs/min,compatible With Various Specifications Of Sealing Rings, Customizable
This automatic glass disk sorter is specially designed for appearance and dimension detection of various seal rings, O-rings, gaskets and other elastic sealing parts. Adopting high-precision glass disk conveying structure, it realizes stable and smooth feeding, avoids damage to fragile seal rings, and integrates automatic sorting function to separate qualified products from defective ones efficiently. It is widely used in auto parts, electronic appliances, battery, machinery and other industries, helping enterprises improve detection efficiency and product qualification rate.
Key Detection Items
-
Surface defects: scratches, burrs, flash, stains, impurities
-
Shape defects: deformation, breakage, missing material, uneven thickness
-
Dimension detection: inner diameter, outer diameter, section size deviation
-
Other defects: oil stain, aging, uneven color
Product Features
-

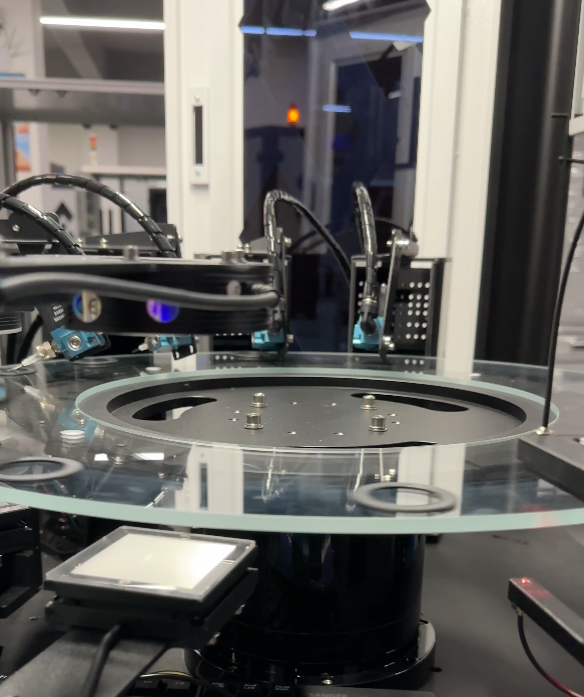

Glass disk conveying: Smooth and stable, no damage to seal rings, suitable for various soft elastic parts.
-

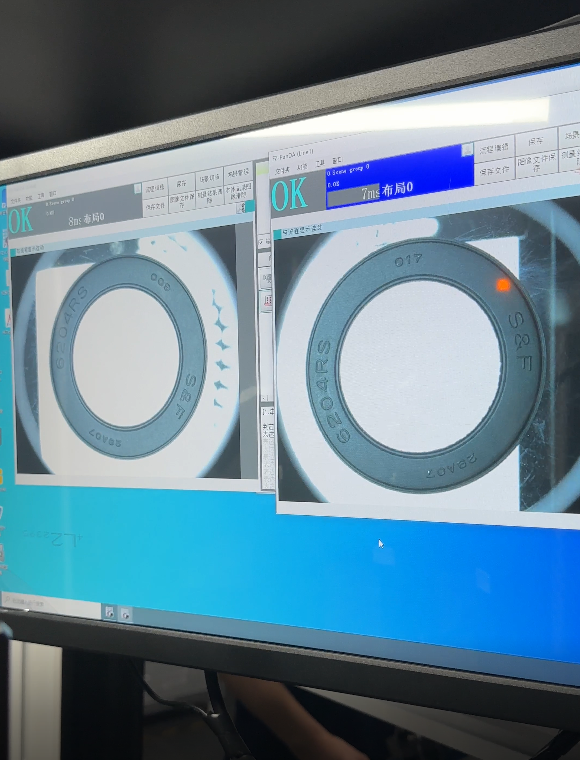

High-precision detection: Equipped with industrial vision system, accurate identification of tiny defects, detection accuracy up to 0.001-0.1mm.
-
Automatic sorting: Fast separation of good and defective products, improving production efficiency.
-
Easy operation: Touch screen interface, simple parameter setting, support data statistics and export.
-
Customizable: Adjustable glass disk size and detection parameters according to seal ring specifications and detection requirements.
-
Stable and durable: Sheet metal frame, Strong stability, dustproof, waterproof, and oil-resistant.
Technical Parameters
-
Detection Accuracy: 0.001-0.1mm (customizable)
-
Detection Speed: 100-400 pcs/min (adjustable)
-
Camera: 2MP-8MP (customizable )
-
Glass Disk Size: Customizable according to product size
-
Power Supply: 220V
-
Machine Material: Sheet metal frame
Application Scenarios
