China Pneumatic H Frame Press Machine 110ton For Metal Sheet Stamping for sale

Pneumatic H Frame Press Machine 110ton For Metal Sheet Stamping

Price Negotiable

Price: $160,000/pieces 1-4 pieces

MOQ: 1

Delivery Time: 30-90

Brand: QIAOSEN

Product Description

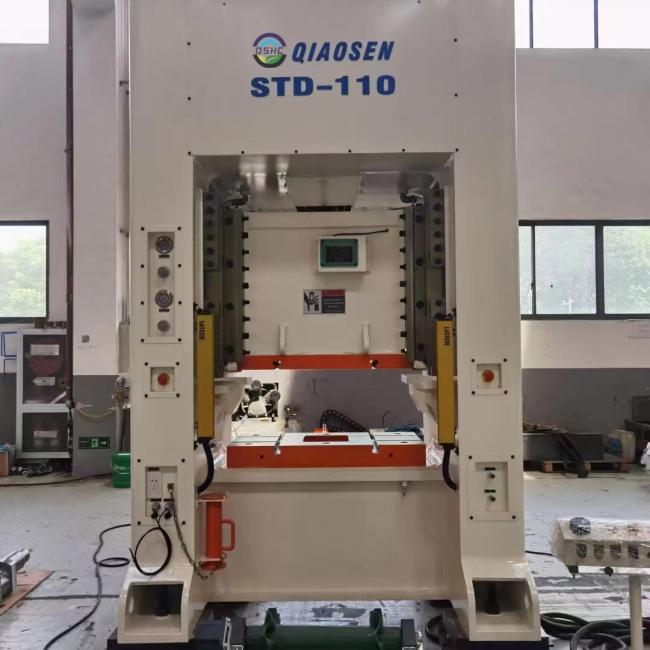

STD-110ton H type punching machine

This is 500ton closed single point crank punching machine, meet Japanese JIS 1 class standard--Safety, Engery saving, Stable, Automation, High precision.

PERFORMANCE FEATURE

1. The high-strength fuselage structure has small deformation and high precision.
2.OMPI pneumatic wet clutch brake , low noice, environmentally friendly, non polluting.
3.The slider adopts 4corner and 8sided guides, can carry large eccentric loads.
4.The slider guide adopts"high-frequency quenching" and "rail grinding process",which has small wear, high precision,long precision maintenance time and improve service life.
5. Crankshaft is made of high strength alloy 42CrMo, which is 1.3 times stronger than 45 steel
6. The copper sleeve is made of tin phosphor bronze ZQSn10-1,which is 1.5 times stronger than ordinary BC6 brass.
7. Highly sensitive hydraulic overload protection device protects the press and die service life
8. The forced thin oil circulation lubrication device is energy saving, has automatic alarm function which can increase the the number of punching times with more oil.

PRODUCT SPECIFICATIONS

No	Item	Unit	STD-110
	Mode		S type	H type
1	punching capability	ton	110
2	Impact force location	mm	10	5
3	Slider stokes per minute	SPM	30-60	60-90
4	Slider length	mm	180	80
5	Max die shut height	mm	350	300
6	Slider adjustment amount	mm	80
7	Up platform area	kN	650*500
8	Down platform area	ml	850*600
9	Main motor power	kw*p	11*4
10	Air pressure	kg/cm^2	6
12	Punch accuracy grade		JIS 1

PRODUCT CONFIGURATION

Company Profile

Certification

Customer Case

Warranty And Service

1. One year warranty for whole pressmachine.
2. All spare parts are available as most of the parts produced by our factory.
3. It is easy to get the electric parts as all are international famous brands.
4. We can provide technical training and consulting via email, phone or video.
5. We can send out engineers for service, installation or training with reasonable additional cost.
6. English operation and maintenance manual is provided with the press.
7. Certificate of conformity will be sent with press

FAQ

who are we?
A: Our factory is located in Wuxi, China with a branch company in Dongguan , start from 2016 sell to Southeast Asia(50.00%), Mid East(30.00%), Africa(10.00%),South Asia(5.00%),Northern Europe(4.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.
why select us?
A: We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.
How about your delivery time?
A: Usually it takes about 25 to 40 working days after receiving your advance payment.
Do you provide after-sale service?
A: Our technical and quality team will support you any time if you need us.
Can i do different color machine?
A: Yes, we can customize your own colors to match your production line
Can the touch screen board language change to others
A: Yes, we can do it according to your requirement like Spanish, French ect...
