NCF Series Yaskawa NC Servo Feeder 16m/min for Press Stamping Automation
Price:
$4,186/cases 1-2 cases
MOQ:
1
Delivery Time:
25-60
Brand:
QIAOSEN
Product Description
NCF Series NC Servo Feeder Roller Mechanism
Product Overview
QIAOSEN NCF series NC servo feeder is a high precision independent roller type servo feeder for metal coil stamping. Equipped with Japan Yaskawa servo system, 7-inch touch screen, pneumatic relaxation device and hard chrome plated feeding rollers. Provides accurate feeding (±0.1mm) and high speed (16m/min), compatible with all QIAOSEN press series (ST/STB/STD).
Application Industries
- Electronic: Terminal, connector, shrapnel, LED bracket
- Home appliance: Small hardware, heat sink, electrical accessories
- Automotive: Medium & small precision stamping parts, progressive die mass production
Core Features
- Japan Yaskawa Servo Control System - Closed-loop control, fast response and high positioning accuracy with 20 groups of multi-stage programming
- High Rigidity Hard Chrome Plated Rollers - HRC60° hard chrome plating, wear-resistant, scratch-proof with pneumatic relaxation device
- High Feeding Precision & Speed - Accuracy: ±0.1mm (≤700mm), ±0.2mm (>700mm); Max speed: 16m/min
- Wide Material Compatibility - Suitable for cold rolled steel, galvanized steel, stainless steel, aluminum, copper coil (0.1-3.2mm thickness)
- User-Friendly Operation - One-touch setting on touch screen with inching/single/continuous mode support
Technical Specifications
| Item | Unit | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-800 |
|---|---|---|---|---|---|---|---|
| Material Width | mm | 200 | 300 | 400 | 500 | 600 | 800 |
| Material Thickness | mm | 0.1-2.5 | 0.1-2.5 | 0.1-3.0 | 0.1-3.0 | 0.1-3.2 | 0.1-3.2 |
| Feeding Length | mm | 0.1-9999.99 | |||||
| Feeding Precision | mm | ±0.1/±0.2 | |||||
| Max Feeding Speed | m/min | 16 | |||||
| Motor Power | kW | 1.5 | 1.5 | 2.2 | 2.2 | 3.0 | 3.0 |
| Air Pressure | MPa | 0.6 | |||||
| Control System | - | Yaskawa Servo + PLC + Touch Screen | |||||
Additional Specifications
| No | Item | Data |
|---|---|---|
| 1 | Width of material | AC380V/3phase |
| 2 | Thickness of material | MAX3.2 |
| 3 | Feeding Capacity | 300W*2.3T, 80*3.2T |
| 4 | Feeding length | 0.01-9999.99 |
| 5 | Roll pressure | Spring type |
| 6 | Releasing system | Pneumatic type |
| 7 | Pass line adjustment | 50mm |
Standard Configuration
- NCF main frame with heavy duty steel structure
- Japan Yaskawa servo motor & driver
- PLC + 7-inch color touch screen
- Pneumatic relaxation device
- Hard chrome plated feeding rollers
- Independent electric control box
- Emergency stop button & safety protection
Optional Accessories
- Hydraulic relaxation device
- Coil guiding device
- Material straightening mechanism
- Customized roller surface (non-slip, oiling)
Company Profile

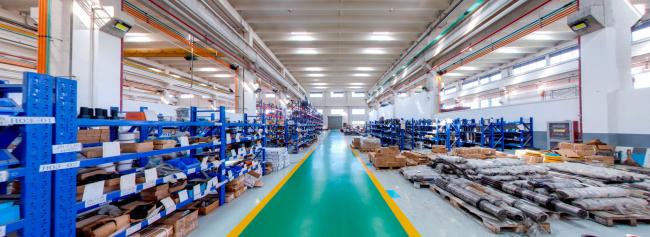

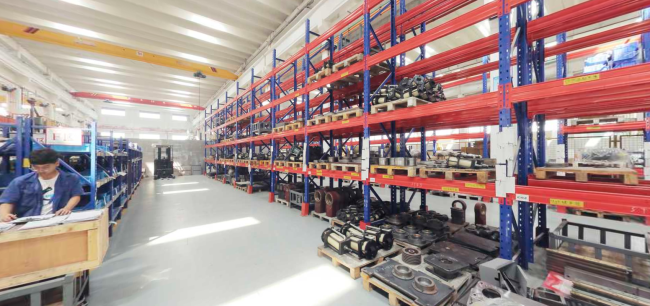

Dongguan Qiaosen Machinery Co., Ltd, with our own factory located in Jiangsu province, was established in 2016. Conveniently located close to Shanghai city with excellent transportation access. Our factory was among the first to pass authentication of the ISO9001:2008 quality management system. We specialize in the production of hydraulic press machines, offering products from 10 tons to 2000 tons with 8 series and over 100 types.
Warranty & Service
- One year warranty for whole press machine
- All spare parts available as most parts produced by our factory
- Easy access to electric parts as all are international famous brands
- Technical training and consulting via email, phone or video
- Engineer dispatch for service, installation or training with reasonable additional cost
- English operation and maintenance manual provided with the press
- Certificate of conformity included with press
Frequently Asked Questions
Are you the manufacturer? Can we visit your factory?
We are the manufacturer located in Wuxi city. We welcome you to visit our factory and check our machine quality on site. Any questions will be solved immediately.
What are your main products and main foreign markets?
Our main products include punching machines, metal straightening machines, and servo feeders. Our main foreign markets are Asia, North America, Europe, and Africa.
What are the advantages of your machines and how can I trust the quality?

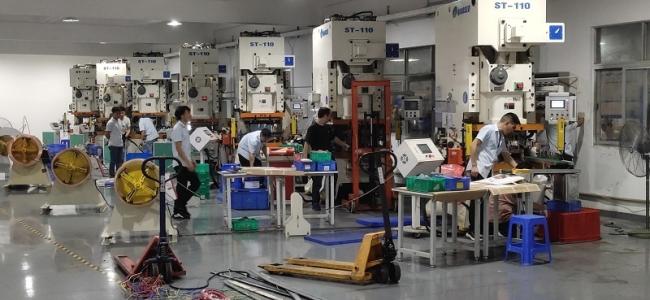

Our machines feature imported quality components and are backed by a professional quality inspection team. Each machine undergoes rigorous testing before shipment, ensuring stable and reliable performance.
Will you update production process information after placing an order?
After order confirmation, we provide regular updates on production details via email and photos.
Can we be your agent?
Yes, we are seeking global agents. We provide comprehensive support including technical assistance and after-sales service, along with competitive discounts and commissions.
What are your payment terms?
We accept T/T, L/C, Western Union, PayPal, and other secure payment methods.
How long is your warranty?
We offer 12 months free warranty with lifelong maintenance support.
Do you accept customer logos and customization?
Yes, we accept various customizations including logos and machine modifications according to customer requirements.
