160ton Double Crank Power Press High Accuracy Pneumatic for Metal Shaping
Price:
$54,286/cases 1-2 cases
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
QIAOSEN
Product Description

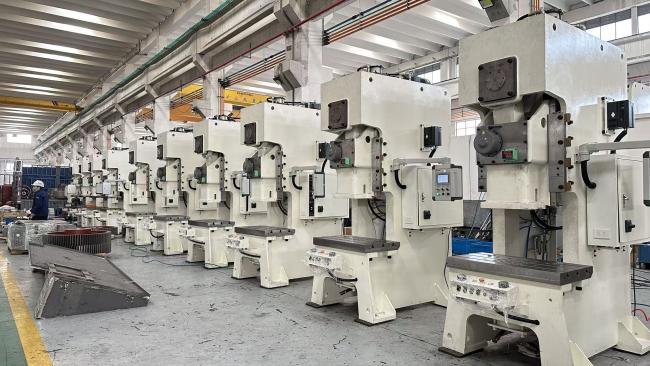

STC-160 Ton V-Type Double Crank Power Press
Heavy duty double crank power press machinery built to handle complex metal shaping with superior accuracy.
Product Overview
STC-160ton V type punching machine is a 160-ton open double point crank punching machine that meets Japanese JIS 1 class standards for safety, energy saving, stability, automation, and high precision.
Performance Features
- High-strength fuselage structure with minimal deformation and high precision
- OMPI pneumatic dry clutch brake system
- Slider with two corner and six-sided guides featuring high-frequency quenching and rail grinding process for minimal wear and extended service life
- Crankshaft made of high-strength alloy 42CrMo, 1.3 times stronger than 45 steel
- Copper sleeve made of tin phosphor bronze ZQSn10-1, 1.5 times stronger than ordinary BC6 brass
- Highly sensitive hydraulic overload protection device to protect press and die life
- Standard SMC pressure regulator, oil mister, and air filter
- Optional mat (air cushion) available
Key Advantages
- Japanese standard design and JIS 1 grade inspection
- High precision and stability with 0-0.02mm deviation on left and right crankshaft to avoid unilateral stress and broken shaft
- Energy efficient operation with low operating costs
- Comprehensive safety features including photoelectric protection and double drop multiple protection devices
- Material utilization improved to 105%-108%
- Energy savings of 25%-35%, saving approximately 4004 kWh per year per machine
- All electric and pneumatic parts from internationally recognized brands for quality and longevity
Technical Specifications
| No | Item | Unit | STC-160 |
|---|---|---|---|
| 1 | Punching Capability | ton | 160 |
| 2 | Impact Force Location | mm | 6 (V type) | 3 (H type) |
| 3 | Slider Strokes Per Minute | SPM | 30-55 (V type) | 40-85 (H type) |
| 4 | Long Slider Length | mm | 200 (V type) | 130 (H type) |
| 5 | Maximum Mode Height | mm | 450 (V type) | 485 (H type) |
| 6 | Slider Adjustment Amount | mm | 100 |
| 7 | Up Platform Area | mm | 1600×550×70 |
| 8 | Down Platform Area | mm | 2000×760×150 |
| 9 | Platform to Floor Distance | mm | 990 |
| 10 | Capacity | Ton | 6.3×2 |
| 11 | Main Motor Power | kw×p | 15×4 |
| 12 | Air Pressure | kg/cm² | 6 |
| 13 | Punch Accuracy Grade | JIS 1 | |
| 14 | Punch Dimension (L×W×H) | mm | 1940×2200×3709 |
| 15 | Punch Weight | ton | 22 |
| 16 | Crown Sheet Area | mm | 410×260×2 |
Product Configuration
Similar Products
Warranty and Service
- One year warranty for entire press machine
- All spare parts available with most components produced in-house
- Easy access to electric parts from international famous brands
- Technical training and consulting via email, phone, or video
- Engineer dispatch available for service, installation, or training at reasonable additional cost
- English operation and maintenance manual provided
- Certificate of conformity included with press delivery
Frequently Asked Questions
Who are we?
Our factory is located in Wuxi, China with a branch company in Dongguan. Established in 2016, we serve Southeast Asia (50%), Middle East (30%), Africa (10%), South Asia (5%), Northern Europe (4%), and Eastern Europe (1%). Our organization employs 51-100 people.
Why select us?
We are a high-end quality punching machine manufacturer and guarantee customer satisfaction with our brand.
How about your delivery time?
Typically 25 to 40 working days after receiving advance payment.
Do you provide after-sale service?
Our technical and quality team provides continuous support whenever needed.
Can I customize machine colors?
Yes, we can customize colors to match your production line requirements.
Can the touch screen language be changed?
Yes, we can configure the interface in languages including Spanish, French, and others according to your requirements.
