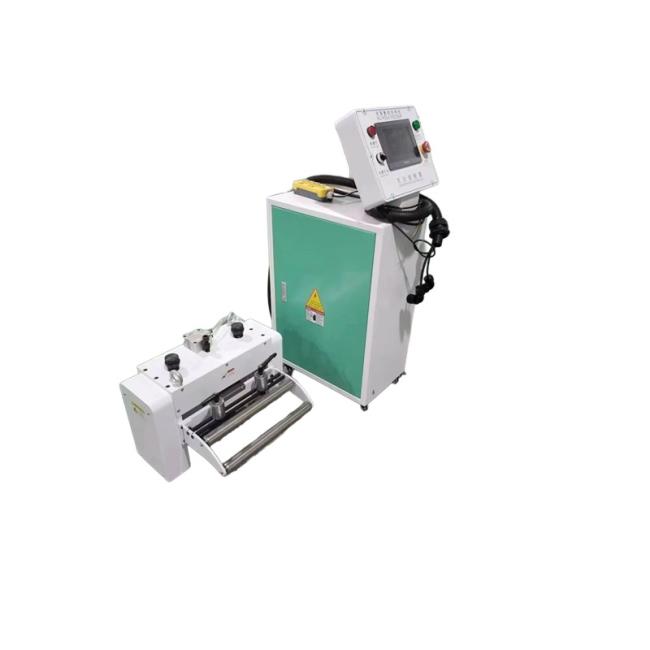

Automatic Sheet Metal Straightening Machine 0.6-6mm Thick with AC22kw Servo Motor
| Model | HCK4-600 | HCK4-800 | HCK4-1000 | HCK4-1300 |
|---|---|---|---|---|
| Coil width (mm) | 70-600 | 70-800 | 70-1000 | 70-1300 |
| Coil thickness (mm) | 0.6-6.0 | |||
| Max coil weight (kg) | 5000 | 7000 | 7000 | 10000 |
| Coil I.D (mm) | 508 | |||
| Coil O.D (mm) | 1400 | |||
| Max speed (mm) | 24 | |||
| Feeding accuracy (mm) | ± 0.15 | |||
| Correction roll (mm) | Upper 4/lower 3 | |||
| Feeding roll (set) | 1 | |||
| Back pressure roll (set) | provided | |||
| Feeding line height (mm) | 1200 ±100 | |||
| Power supply | AC220V 50HZ/AC380V 50HZ | |||
| Uncoiler expansion method (mm) | hydraulic | |||
| Air pressure (kg/cm²) | 5 | |||
| Servo motor (kw) | AC22 | |||
| Uncoiler motor (kw) | 2.2 | 3.7 | 3.7 | 7.5 |
- Flexible operation: All functions are centered on PLC and a hand-held knob, allowing operators to implement all motion functions from one location, saving time.
- High efficiency, strong security: Maximizes mechanical action to replace manual operation, reduces auxiliary time, improves work efficiency, and keeps operators safely away from the uncoiler.
- Easy to operate: Can switch between press or device control according to user needs, improving equipment adaptability and saving customer costs.

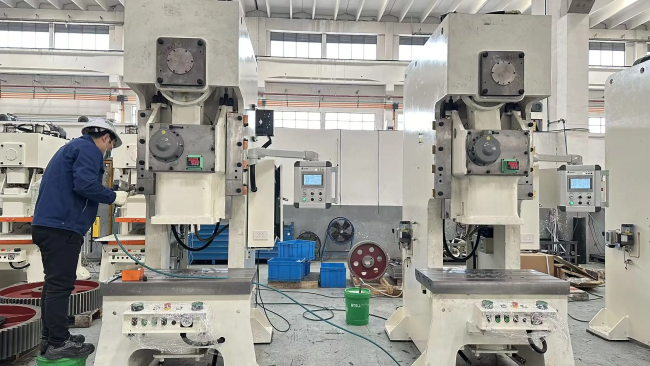

Dongguan Qiaosen Machinery Co., Ltd operates its own factory located in Jiangsu province, established in 2016. Conveniently located near Shanghai city with excellent transportation access, our facility is a hub of creative minds and gifted talents.
Our factory was among the first to achieve ISO9001:2008 quality management system certification. We specialize in the production of pneumatic press machines, offering 25-ton to 1600-ton press machines across 8 series with more than 100 types. Our product range includes single column, four column, C-frame, H-frame, and various press machines, punching machines, folding machines, and cutting machines.
Our equipment serves diverse industries including aviation, aerospace, automobile, shipbuilding, light appliances, and daily hardware. With exquisite design, competitive pricing, excellent quality, and efficient after-sales service and technical support, our products have gained recognition from customers worldwide. We distribute to over 20 domestic provinces and export to the United States, Japan, Russia, European Union, Southeast Asia, the Middle East, and other countries.
