Automatic Electric Steel Coil Uncoiler Machine 15m/min Feeding Speed Max 1.6mm Thick

Price Negotiable
Price: $1,530/cases 1-2 cases
MOQ: Negotiable
Delivery Time: Negotiable
Brand: QIAOSEN
Product Description
MT Heavy Rack Decoiler Uncoiler Machine
Automatic electric steel coil uncoiling and sheet metal straightening machinery with motor drive system.

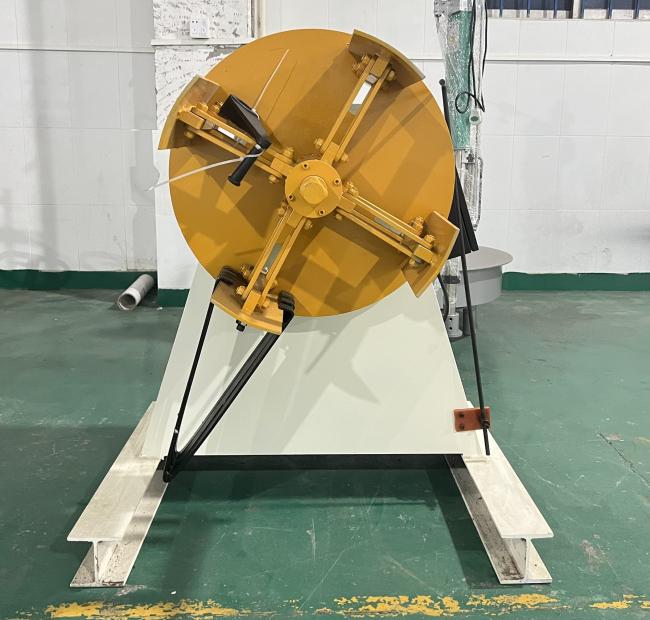

MT Heavy Rack Decoiler Uncoiler Machine front view MT Heavy Rack Decoiler Uncoiler Machine side view
Technical Specifications
Item Data
Width of material 400mm
Thickness of material 0-3.0mm
Speed reducer 1/60
Motor HP 1
Coil outside diameter 1200mm
Coil inside diameter 450/530mm
Max material weight 400mm
Machine weight 450kg
Key Features
  • Suitable for collection and delivery of various coil materials, including thin metal and non-metal materials
  • Motor power can be added to match feeding device requirements
  • Adjustable tension brake device with reinforced main shaft for smoother material reel rotation and increased load capacity
  • Essential component for fully automatic press production, saving manpower and resources while reducing costs
  • Utilizes imported parts for reduced failures and extended service life
Similar Products

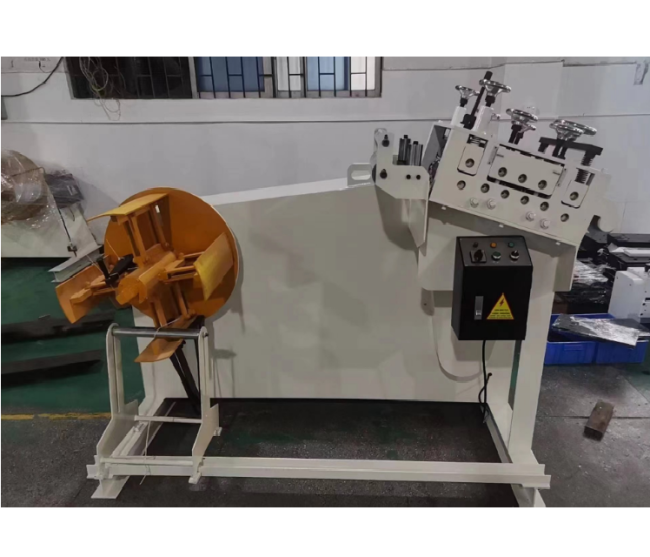

Similar decoiler machine model 1 Similar decoiler machine model 2 Similar decoiler machine model 3
Manufacturer Profile
Dongguan Qiaosen Machinery Company profile
Dongguan Qiaosen Machinery Co., Ltd operates its own factory in Jiangsu province, established in 2016. Strategically located near Shanghai city with convenient transportation access, our facility specializes in hydraulic press machine production. We offer 10-ton to 2000-ton press machines across 8 series with over 100 types, including single column, four column, C-frame, H-frame presses, punching machines, folding machines, and cutting machines. Our products serve aviation, aerospace, automotive, shipbuilding, light appliances, and daily hardware industries. Certified with ISO9001:2008 quality management system, our machines are known for exquisite design, competitive pricing, excellent quality, and efficient after-sales service, exporting to over 20 countries worldwide including United States, Japan, Russia, European Union, Southeast Asia, and the Middle East.

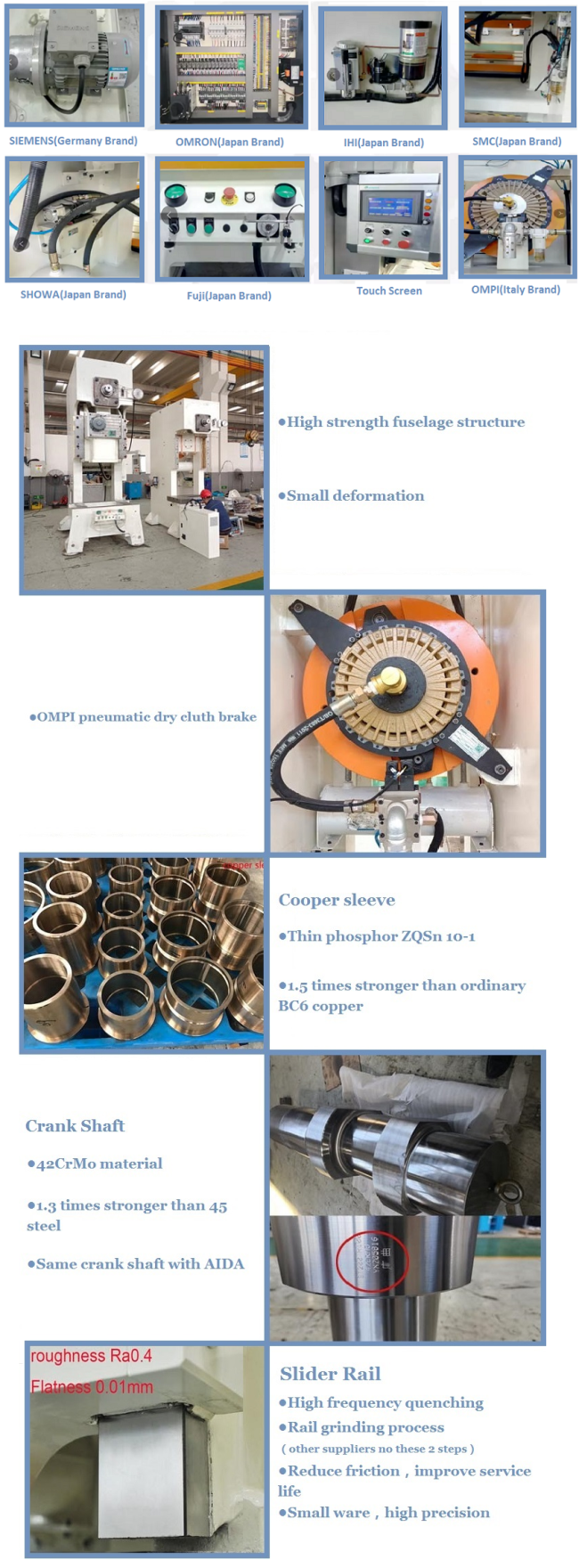

Manufacturing facility interior view 1 Manufacturing facility interior view 2 Quality control process
Product Packaging
Secure product packaging for shipping
