ST-60V 60 Ton Pneumatic Punching Machine JIS 1 Grade With High Strength Alloy Crankshaft
| No | Item | Unit | ST-60V |
|---|---|---|---|
| 1 | Punching Capability | ton | 60 |
| 2 | Impact Force Location | mm | 4 (V type) / 2 (H type) |
| 3 | Slider Strokes Per Minute | SPM | 35-90 (V type) / 80-120 (H type) |
| 4 | Slider Length | mm | 120 (V type) / 60 (H type) |
| 5 | Max Die Shut Height | mm | 310 (V type) / 340 (H type) |
| 6 | Slider Adjustment Amount | mm | 75 |
| 7 | Up Platform Area | mm | 700*400*70 |
| 8 | Down Platform Area | mm | 900*500*80 |
| 9 | Shank Hole | mm | Ø50 |
| 10 | Main Motor Power | kw*p | 5.5*4 |
| 11 | Air Pressure | kg/cm² | 6 |
| 12 | Punch Accuracy Grade | JIS 1 | |
| 13 | Slider Adjustment Device | Manual Operation | |
| 14 | Slider Center to Machine Distance | mm | 225 |
| 15 | Platform to Floor Distance | mm | 785 |
| 16 | Punch Weight | ton | 5.6 |
| 17 | Punch Dimension (L*W*H) | mm | 1595*1000*2800 |
| 18 | Die Cushion Capacity | ton | 3.6 |
| 19 | Stroke | mm | 70 |
| 20 | Active Area | mm² | 350*300 |
- The high-strength fuselage structure has small deformation and high precision

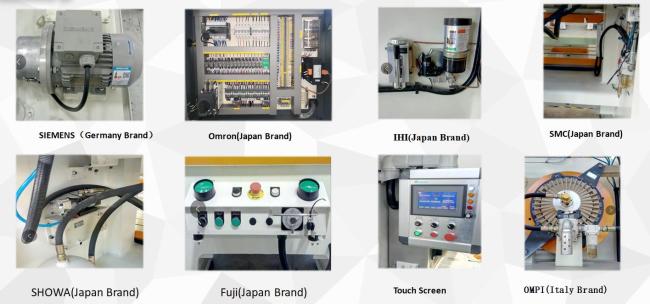

- OMPI pneumatic dry clutch brake
- The slider adopts 2-corner and 6-sided guides
- The slider guide adopts "high-frequency quenching" and "rail grinding process", which has small wear, high precision, long precision maintenance time and improved service life
- Crankshaft is made of high strength alloy 42CrMo, which is 1.3 times stronger than 45 steel
- The copper sleeve is made of tin phosphor bronze ZQSn10-1, which is 1.5 times stronger than ordinary BC6 brass
- Highly sensitive hydraulic overload protection device protects the press and die service life
- Optional mat (air cushion)

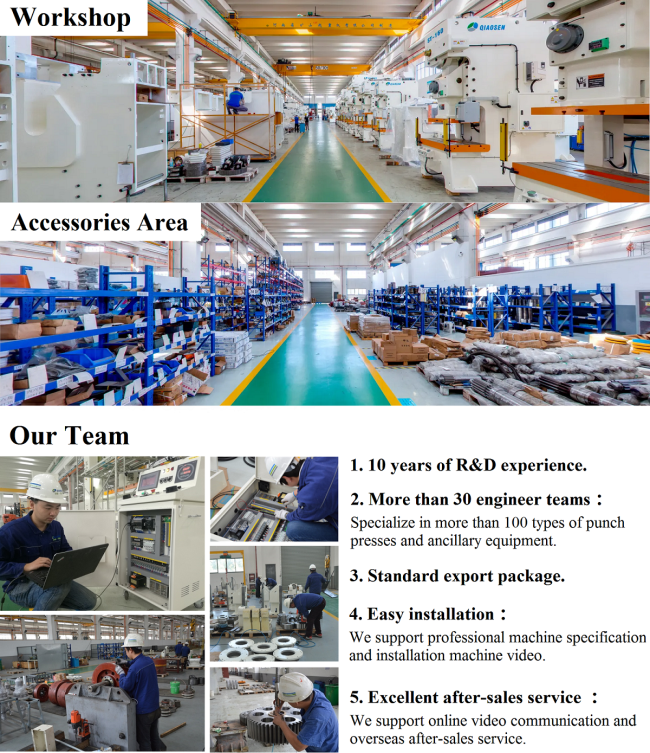

Dongguan Qiaosen Machinery Co., Ltd, which has our own factory located in Jiangsu province, was established in 2016. Located close to Shanghai city with convenient transportation, we are a birthplace of creative minds and gifted talents.
Our factory took the lead in passing authentication of the ISO9001:2008 quality management system. We specialize in the production of hydraulic press machines, mainly producing 10 tons to 2000 tons press machines with 8 series and more than 100 types, including single column, four column, C frame, H frame and all kinds of press machines, punching machines, folding machines, and cutting machines. Our products are used in aviation, space flight, automobile, shipbuilding, light appliances, daily used hardware and more.
Our company products feature exquisite design, reasonable pricing, excellent quality and efficient after-sales service and technical support. We have received affirmation from customers at home and abroad, selling well in more than 20 domestic provinces, cities and districts, and exporting to United States, Japan, Russia, European Union, Southeast Asia, the Middle East and other countries.
- One year warranty for whole press machine
- All spare parts are available as most of the parts are produced by our factory
- Easy to get electric parts as all are international famous brands
- We provide technical training and consulting via email, phone or video
- We can send out engineers for service, installation or training with reasonable additional cost
- English operation and maintenance manual provided with the press
- Certificate of conformity will be sent with press
