110ton Deep Throat Hole Punch Press JIS Class 1 for Large Mesh Plates / Drawn Parts
The QIAOSEN ST-110 Deep Throat Punch Press is a 110-ton C-type single crank deep throat precision stamping equipment, specially engineered for stamping large-size and large-span workpieces. Featuring deep throat structure, high rigidity, JIS Class 1 precision, and exceptional stability, this machine is ideal for automatic stamping production lines handling large sheet metal, mesh plates, and drawn parts.
| Specification | Details |
|---|---|
| Nominal Force | 110 tons |
| Throat Depth | Standard deepened (customizable), suitable for large-size workpieces |
| Slide Stroke | 180mm |
| Stroke Rate | 35-65 times/min |
| Die Height | 360mm |
| Workbench Size | Approximately 1000×600mm |
| Precision Grade | JIS B 6402 Class 1 |
| Total Machine Weight | Approximately 9.6 tons |
| Control System | PLC + Touch Screen |
High-strength steel plate welding, high-temperature annealing to eliminate internal stress, strong rigidity and small deformation
Forged from 42CrMo alloy steel, 1.3 times stronger than 45 steel, wear-resistant and fatigue-resistant
Two-corner six-face guideway, guideway with high-frequency quenching + precision grinding, excellent precision retention
Tin-phosphorus bronze ZQSn10-1, 1.5 times stronger than ordinary brass
Dry pneumatic clutch + brake, fast response and long service life
PLC, touch screen, imported solenoid valve, hydraulic overload protection
- Deep Throat Design: Larger distance from slider center to machine body, capable of processing large, wide and long-span parts
- High Precision: Repeat positioning accuracy ±0.01mm, stable bottom dead center, less burrs and low scrap rate
- Strong Rigidity: High-rigidity body + symmetric balancer, low vibration and stable stamping
- Safety Protection: Hydraulic overload protection, emergency stop, photoelectric protection, dual solenoid valve
- Automation Compatibility: Can be equipped with NC servo feeder, material rack and leveler for fully automatic production lines
- Easy Operation: Touch screen parameter setting, mold fine adjustment accuracy 0.1mm, parameter storage, fault diagnosis
Industries: Home appliances, automotive sheet metal, hardware, mesh plates, large drawn parts, electrical enclosures
Processes: Punching, blanking, bending, shallow drawing, forming, precision progressive die stamping
Pre-Startup Checklist: Check air pressure (0.5-0.6MPa), lubrication, hydraulic oil level and safety devices
Safety Protocols: Strictly prohibited to use beyond load, stroke and closing height. Feeding and stamping must be synchronized; do not put hands into the mold, and confirm safety door/photoelectric device is normal before starting
Regular Maintenance: Guide rail lubrication, clutch clearance, hydraulic oil replacement, bolt tightening
Emergency Procedures: Stop immediately in case of abnormalities (abnormal noise, oil leakage, overload alarm), and use after troubleshooting
Key parts are processed by CNC precision machining + heat treatment, with 72-hour full-load testing before delivery. Standard configuration includes imported bearings, seals and pneumatic components.
- 1-year warranty with lifelong maintenance support
- Professional installation, commissioning and training
- All spare parts available with international brand components
- Technical support via email, phone or video
- English operation and maintenance manual provided
- Certificate of conformity included with each machine

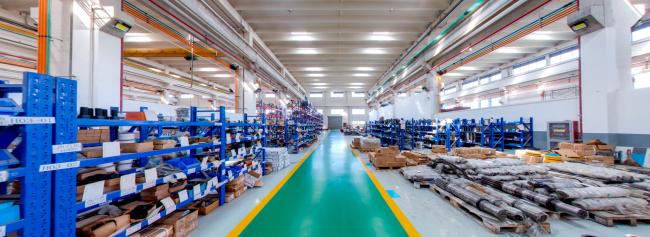

We are the manufacturer located in Wuxi city. We welcome you to visit our factory and check our machine quality on site.
Our main products include punching machines, metal straightening machines, and servo feeders. Our main foreign markets are Asia, North America, Europe, and Africa.
Our machines feature imported quality components and are backed by professional quality inspection. Each machine undergoes rigorous testing before shipment.
Yes, we accept various customizations including logos and machine modifications according to customer requirements.
We accept T/T, L/C, Western Union, PayPal, and other secure payment methods.
We offer 12 months free warranty with lifelong maintenance support.
Dongguan Qiaosen Machinery Co., Ltd - Established in 2016, ISO9001:2008 certified manufacturer specializing in hydraulic press machines from 10 tons to 2000 tons capacity.
