STE-400 Mechanical Power Press 400T Symmetrical Double Crank Drive for Metal Stamping
STE series is a unitized closed straight-side two-point double crank precision press featuring an integrated heavy welded frame with stress relief annealing treatment. Adopting symmetrical double crank & double linkage driving structure, it meets JIS B 6402 Class 1 precision standard, featuring ultra-high rigidity, minimal deformation, excellent anti-offset load capacity, stable stamping, and long mold service life. Widely applied in automobile parts, motor stator & rotor, hardware, home appliance deep drawing and large-scale continuous stamping production lines. Tonnage range: 110T, 160T, 200T, 250T, 315T, 400T customizable.
- Ultra-Rigid Integrated Frame: Unitized closed H-type straight-side frame made of thick steel plate integral welding with overall stress relief annealing. Great structural rigidity, tiny elastic deformation, strong resistance to eccentric load, ensures long-term precision stability for heavy-duty stamping.
- Symmetrical Double Crank Drive Structure: Dual crankshafts & double connecting rods symmetric driving with well-balanced force distribution. Perfect for large working table, wide mold, thick plate stamping and deep drawing processes. Four-corner eight-face long guideway of slider ensures high verticality, parallelism and repeated positioning accuracy.
- High-Grade Core Components & Durability: Crankshaft & gear shaft made of forged 42CrMo alloy steel, quenched & tempered, hard oxidation and precision grinding for superior strength and wear resistance. Bushing: ZQSn10-1 phosphor bronze with low friction and excellent wear resistance. Slider height adjustment precision: ±0.1mm with digital display adjustment.
- Reliable Safety Transmission System: Equipped with dry pneumatic clutch & brake unit, imported dual solenoid valve for fast response and accurate engagement. Built-in hydraulic overload protection with automatic unloading and reset function. Balancing cylinders stabilize slider operation and reduce vibration and noise.
- Advanced Electric Control System: Standard PLC with large-size human-machine touch screen for intuitive parameter setting. Supports multiple operation modes and highly compatible with automatic production lines.
- Efficient Centralized Lubrication & Energy Saving: Forced circulating thin-oil centralized automatic lubrication system with timing quantitative oil supply and alarm functions. Low energy consumption, low noise and environmental protection design.
| Product Name | Mechanical Power Press Punching Machine |
|---|---|
| Model | STE-400S |
| Punching Capability | 400 Ton |
| Force Location | 3mm |
| Slider Length | 180mm |
| Slider Strokes Per Minute | 30-60 SPM |
| Die Shut Height | 450mm |
| Slider Adjustment Amount | 120mm |
| Up Platform Area | 2200×900mm |
| Down Platform Area | 2500×1000mm |
| Side Opening | 900×650mm |
| Main Motor Power | 37×4 |
| Air Pressure | 6kg/cm² |
| Punch Precision Level | JIS 1 |
- High-strength fuselage structure with small deformation and high precision
- Pneumatic wet clutch brake (integrated): environmentally friendly, non-polluting, low noise and long service life
- Slider adopts four-corner eight-sided guides to carry large eccentric loads
- Slider guide features high-frequency quenching and rail grinding process for minimal wear and extended precision
- Forced thin oil circulation lubrication device with automatic alarm function
- Crankshaft made of high-strength alloy 42CrMo for extended service life
- Copper sleeve made of tin phosphor bronze ZQSn10-1 with high-sensitivity hydraulic overload protection
- Standard Japanese SMC pressure regulator, oil mister, and air filter
- Standard touch screen and famous brand motor
- Optional mat (air cushion) available

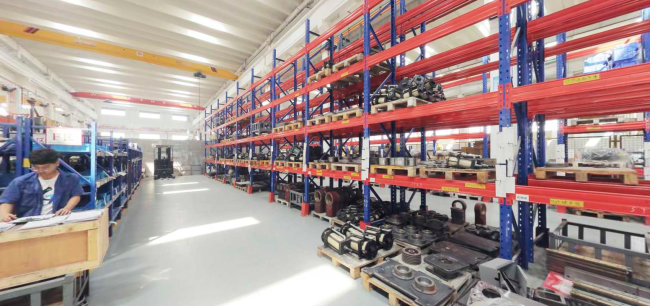

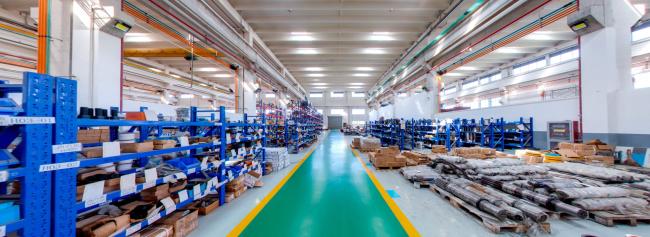

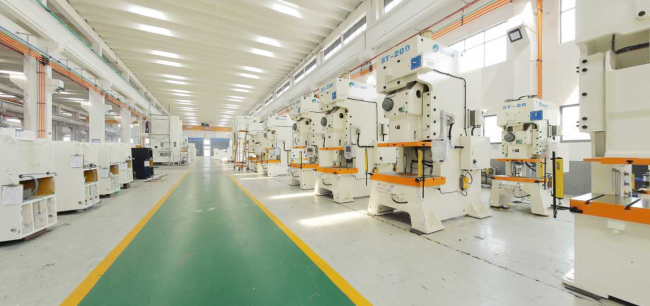

Dongguan Qiaosen Machinery Co., Ltd, established in 2016, operates its own factory in Jiangsu province near Shanghai with convenient transportation access. The company holds ISO9001:2008 quality management system certification and specializes in hydraulic press machine production. Product range includes 10-ton to 2000-ton press machines across 8 series with over 100 types, including single column, four column, C-frame, H-frame presses, punching machines, folding machines, and cutting machines. Applications span aviation, aerospace, automotive, shipbuilding, light appliances, and daily hardware. Products are recognized for excellent design, competitive pricing, superior quality, and efficient after-sales service, serving domestic markets across 20+ provinces and international markets including United States, Japan, Russia, European Union, Southeast Asia, and Middle East.
- One year warranty for whole press machine
- All spare parts available as most parts produced by our factory
- Easy access to electric parts as all are international famous brands
- Technical training and consulting via email, phone or video
- Engineer dispatch for service, installation or training with reasonable additional cost
- English operation and maintenance manual provided with the press
- Certificate of conformity included with press
