Customized Plastic Film Faced Plywood Green Concrete Formwork Board 2440x1220mm

Price Negotiable
Price: US $55.00 - 70.00/ Square Meter
MOQ: US $7.50 - 10.80/ Piece
Delivery Time: 10-30 workday
Brand: WKS
Product Description
Concrete Formwork Panel Green Plastic Film Faced Plywood 2440x1220mm
Product Overview

Green Plastic Film Faced Plywood is a high-performance construction formwork panel designed for demanding concrete projects. It combines a robust hardwood or poplar core with a durable green PP (Polypropylene) or phenolic film surface, delivering superior waterproofing and abrasion resistance. This solution is engineered for high-rise buildings, bridges, and tunnels where smooth concrete finishes and high reusability are critical.

Features & Functions
  • Premium Concrete Finish: The ultra-smooth film surface ensures easy demolding and produces a uniform, fair-faced concrete appearance, significantly reducing or eliminating the need for secondary plastering and saving on finishing costs.
  • Enhanced Durability & Waterproofing: Utilizes WBP (Water Boil Proof) phenolic glue and a tight film seal, offering excellent resistance to moisture, chemicals, and abrasion. This construction prevents delamination and extends the panel's service life under harsh site conditions.
  • High Strength-to-Weight Ratio: Provides substantial structural strength for heavy concrete loads while remaining lighter than steel formwork, facilitating easier handling, faster assembly, and reduced labor fatigue on-site.
  • Versatile On-Site Workability: Panels can be easily sawn, drilled, and nailed to accommodate complex formwork layouts, curved surfaces, and custom project requirements without compromising the film's protective properties.
Key Specifications
  • Material: Hardwood/Poplar Core with Green PP/Phenolic Film
  • Standard Size: 1220×2440mm (4'x8'), 1250×2500mm (Customizable)
  • Thickness: 12mm, 15mm, 18mm, 21mm
  • Glue Type: WBP Phenolic (High Water Resistance)
  • Reuse Cycles: 30 - 50+ times (Depending on core grade and film thickness)
  • Certifications: CE, ISO, FSC (Available)
Competitive Advantages
  • Superior Cost Efficiency: Offers a significantly lower cost-per-use compared to traditional plywood and steel due to its high turnover rate (30+ cycles) and minimal maintenance needs, providing excellent Return on Investment (ROI).
  • All-Weather Reliability: The waterproof film and phenolic-bonded core perform consistently in wet and variable weather conditions, preventing swelling and warping that commonly affect standard plywood.
  • Project Flexibility: Serves as a versatile middle-ground solution between basic plywood and rigid plastic systems, suitable for a wide range of applications from standard walls to complex architectural concrete structures.
Detailed Specifications
Item Specification & Features
Product Name Green Plastic Film Faced Plywood
Core Material Poplar/Birch/Eucalyptus/Combine
Color of film faced paper Brown/Red/Black/Customized Pattern
Glue WBP, Melamine, Phenolic
Size(mm) 1200×1800, 1200×2400, 1220×2440, 1250×2500, etc.
Length (width) Tolerance +/-2mm
Thickness(mm) 8-30mm
Thickness tolerance +/-0.5mm
Density 550-770kg/m³
Number of Layers from 5 up to 21 depending on thickness
Processing of edge waterproof paint in different color
Moisture Content 6-12%
Manufacturing Process a. First or second level veneer formed by one-time hot pressing. b. First or second level veneer formed by two-times pressing, one-time cold press and one-time hot press. c. First grade veneer formed by three-times pressing, one-time cold press, one-time burnishing&press and one-time hot press. d. Recycling film faced plywood insertion/finger connection for one-time hot pressing molding.
Application Scope
  • Construction Industry: As one of the molds for concrete pouring, film faced plywood is widely used in various construction buildings, such as high-floor apartments, commercial buildings, villas, bridges, hospitals, schools, and so on.
  • Outdoor Stage: The film paper on the surface of the Film Faced Plywood can be customized to press and stick the anti slip facial mask paper, which is used for various types of outdoor stage construction.
  • Goods Shelves and Box Type Vehicle Flooring: Due to the waterproof, wear-resistant, and pressure resistant properties of Film Faced Plywood, they are also widely used in warehouses (shelves), railway freight cars, and truck floors and sidewalls.
Frequently Asked Questions
  • How to get a sample? Is the sample chargeable or free? Please contact us via WhatsApp, WeChat, or email and let us know your real needs. We will promptly contact you and confirm the accurate requirements before mailing you the samples.
  • Are you a trading company or a manufacturer? Firstly, we are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products for the group company. Secondly, our group company has two major production bases, specializing in the production and processing of formwork and scaffolding products for over 20 years.
  • How to get quotation? Please provide us the required list with the details of production's quality, specifications, and quantity, and we will provide you with an accounting quotation.
  • How long is your delivery cycle? Under normal circumstances, the delivery cycle is around 5 days. If you require fully customized production of the product, the delivery cycle is generally around 10-15 days.
  • What is the payment method you require? T/T 30% deposit payment before manufacture, and 70% balanced payment against B/L Copy. Or L/C.
  • What's your quality guarantee? We have 100% quality guarantee to customers. We will be responsible for any quality problem.

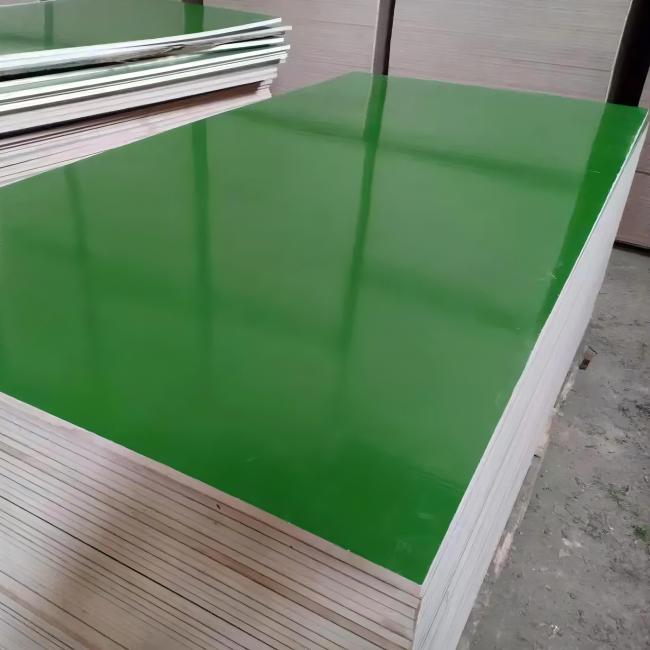

Green Plastic Film Faced Plywood concrete formwork panel
