Robust Adjustable Steel Prop 2.0m - 3.5m Heavy Duty Acrow Props With 2.0t Load Capacity
Price:
US $6.00 - 11.00/ Piece
MOQ:
200/Piece
Delivery Time:
10-30 workday
Brand:
WKS
Product Description
Heavy Duty Adjustable Steel Prop 2.0m to 3.5m with 2.0t Load Capacity
-

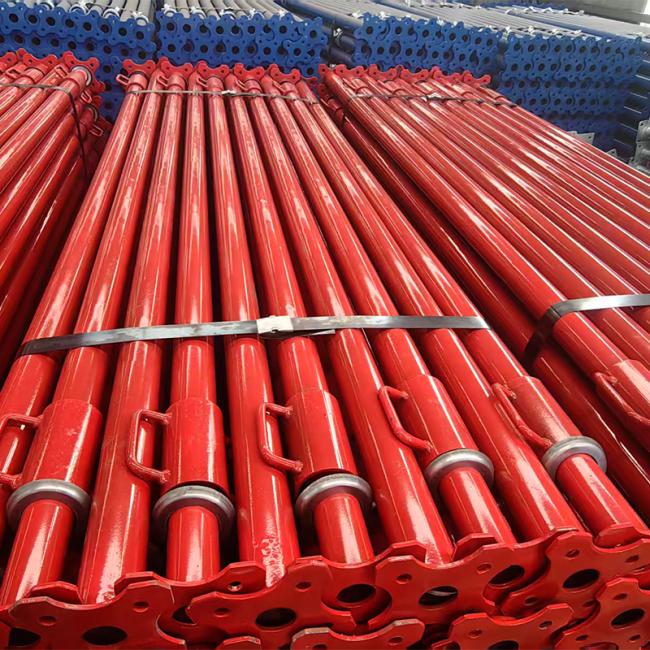

Overview:Adjustable Steel Prop (also known as Acrow Prop or Scaffolding Prop) is a heavy-duty telescopic support system made from high-strength steel. It is the go-to solution for providing temporary vertical shoring in concrete slab formwork, beam support, and scaffolding reinforcement, ensuring structural stability during the curing process.Features & Functions:
-
Telescopic Height Adjustment: Features a dual-tube design with a threaded collar or pin system, allowing for quick and precise height adjustments to accommodate varying floor heights and uneven surfaces.
-
High Load-Bearing Capacity: Engineered to withstand significant axial loads from wet concrete and construction live loads, providing a critical safety margin for slab and beam shoring.
-
Robust Construction: Built from Q235 or Q345 steel with reinforced base plates and U-heads, ensuring maximum stability and resistance to buckling under pressure.
-
Easy Deployment: Requires no special tools for setup or dismantling, enabling rapid installation and strike by general labor, which accelerates project timelines.
Key Specifications:-
Material: Q235B / Q345B Carbon Steel
-
Surface Treatment: Hot-Dip Galvanized / Powder Coated
-
Outer Tube Diameter: 48mm / 60mm (Heavy Duty)
-
Standard Sizes: 1.7m - 3.5m (Closed: 1.7m-2.0m, Extended: 3.0m-4.0m)
-
Safe Working Load (SWL): 10kN - 35kN (depending on extension)
-
Standards: EN 1065, BS 4074, ISO9001
Competitive Advantages:-
Cost-Efficiency: Offers a lower total cost of ownership compared to timber or proprietary systems due to its high reusability (100+ cycles) and minimal maintenance requirements.
-
Jobsite Versatility: A universal component that seamlessly integrates with all major formwork systems (flying tables, slab panels) and scaffolding, making it indispensable for contractors.
-
All-Weather Durability: The galvanized finish provides superior corrosion resistance, making it suitable for long-term outdoor projects and harsh site conditions without performance degradation.
-
Heavy Duty Prop Specifications
| Code | Adjustable Height | Inner Tube | Outer Tube | Tube Thickness |
|---|---|---|---|---|
| WKS-HDP601730 | 1.7 - 3.0 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-HDP601830 | 1.8 - 3.0 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-HDP601832 | 1.8 - 3.2 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-HDP602035 | 2.0 - 3.5 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-HDP602036 | 2.0 - 3.6 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-HDP602240 | 2.2 - 4.0 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-HDP602545 | 2.5 - 4.5 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-HDP602750 | 2.7 - 5.0 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-HDP603050 | 3.0 - 5.0 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
Light Duty Prop - Spanish Specifications
| Code | Adjustable Height | Inner Tube | Outer Tube | Tube Thickness |
|---|---|---|---|---|
| WKS-LDPS480611 | 0.6 - 1.1 m | 40 mm | 48 mm | 1.4 - 2.5 mm |
| WKS-LDPS480814 | 0.8 - 1.4 m | 40 mm | 48 mm | 1.4 - 2.5 mm |
| WKS-LDPS481629 | 1.6 - 2.9 m | 40 mm | 48 mm | 1.4 - 2.5 mm |
| WKS-LDPS481832 | 1.8 - 3.2 m | 40 mm | 48 mm | 1.4 - 2.5 mm |
| WKS-LDPS482036 | 2.0 - 3.6 m | 40 mm | 48 mm | 1.4 - 2.5 mm |
| WKS-LDPS482240 | 2.2 - 4.0 m | 40 mm | 48 mm | 1.4 - 2.5 mm |
Light Duty Prop - Italian Specifications
| Code | Adjustable Height | Inner Tube | Outer Tube | Tube Thickness |
|---|---|---|---|---|
| WKS-LDPI481629 | 1.6 - 2.9 m | 48 mm | 56 mm | 1.4 - 2.5 mm |
| WKS-LDPI481832 | 1.8 - 3.2 m | 48 mm | 56 mm | 1.4 - 2.5 mm |
| WKS-LDPI481832 | 2.0 - 3.5 m | 48 mm | 56 mm | 1.4 - 2.5 mm |
| WKS-LDPI482036 | 2.0 - 3.6 m | 48 mm | 56 mm | 1.4 - 2.5 mm |
| WKS-LDPI482240 | 2.2 - 4.0 m | 48 mm | 56 mm | 1.4 - 2.5 mm |
Push-Pull Prop Specifications
| Code | Adjustable Height | Inner Tube | Outer Tube | Tube Thickness |
|---|---|---|---|---|
| WKS-PPP561730 | 1.7 - 3.0 m | 48 mm | 56 mm | 1.4 - 4.0 mm |
| WKS-PPP562035 | 2.0 - 3.5 m | 48 mm | 56 mm | 1.4 - 4.0 mm |
| WKS-PPP562240 | 2.2 - 4.0 m | 48 mm | 56 mm | 1.4 - 4.0 mm |
| WKS-PPP562545 | 2.5 - 4.5 m | 48 mm | 56 mm | 1.4 - 4.0 mm |
| WKS-PPP562750 | 2.7 - 5.0 m | 48 mm | 56 mm | 1.4 - 4.0 mm |
| WKS-PPP601730 | 1.7 - 3.0 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-PPP602035 | 2.0 - 3.5 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-PPP602240 | 2.2 - 4.0 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-PPP602545 | 2.5 - 4.5 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
| WKS-PPP602750 | 2.7 - 5.0 m | 48 mm | 60 mm | 1.4 - 4.0 mm |
Aluminum Prop Specifications
| Code | Adjustable Height | Inner Tube | Outer Tube | Weight | Load-Bearing Range |
|---|---|---|---|---|---|
| WKS-ALP800120 | 0.8 - 1.2 m | 715 mm | 421 mm | 10.47 kg | 70 - 90 kN |
| WKS-ALP145250 | 1.45 - 2.5 m | 1365 mm | 1071 mm | 15.75 kg | 60 - 70 kN |
| WKS-ALP198350 | 1.98 - 3.5 m | 1865 mm | 1571 mm | 19.45 kg | 42 - 88 kN |
| WKS-ALP260480 | 2.6 - 4.8 m | 2515 mm | 2221 mm | 24.6 kg | 25 - 85 kN |
| WKS-ALP430625 | 4.3 - 6.25 m | 4211 mm | 1975 mm | 30.48 kg | 20 - 56 kN |
Our Services
- Customized Production Services: Assist in completing customized product configurations based on architectural and structural drawings. Professional engineering team provides detailed product application solutions.
- Timely Response Service: Professional engineers available before, during, and after sales to promptly solve and meet your needs. Provide reasonable suggestions for engineering application plans.
- Worry-Free After-Sales Service: One-on-one service teams to help complete implementation and landing of engineering projects. Independent service teams ensure product production matches demand perfectly.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products. Our group company has two major production bases specializing in production and processing for over 20 years.
We are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products. Our group company has two major production bases specializing in production and processing for over 20 years.
How can I get a quotation?
For simple concrete pouring projects with your own engineer, provide a bill of materials for quotation. For complex projects requiring plastic formwork, our consultants will communicate with you and develop application plans based on engineering drawings.
For simple concrete pouring projects with your own engineer, provide a bill of materials for quotation. For complex projects requiring plastic formwork, our consultants will communicate with you and develop application plans based on engineering drawings.
How long does it take to complete the plan and quotation?
Generally takes about 5-8 days to complete specific plans and detailed quotations after receiving engineering drawings.
Generally takes about 5-8 days to complete specific plans and detailed quotations after receiving engineering drawings.
Can you provide free samples?
Yes, we can provide samples. You will need to pay for the shipping cost.
Yes, we can provide samples. You will need to pay for the shipping cost.
How long is the estimated delivery time?
According to project complexity, usually takes 30-60 days to complete stocking. More accurate delivery times are estimated during planning and quotation.
According to project complexity, usually takes 30-60 days to complete stocking. More accurate delivery times are estimated during planning and quotation.
Is the plastic template prone to deformation?
In long-term high temperature environments, concrete pouring may cause slight deformation. We recommend using aluminum alloy formwork or steel frame wood formwork systems in high temperature areas.
In long-term high temperature environments, concrete pouring may cause slight deformation. We recommend using aluminum alloy formwork or steel frame wood formwork systems in high temperature areas.
What are the defects of the plastic template system?
Limited load capacity for large-sized concrete structures and poor high temperature resistance with potential deformation in high-temperature areas.
Limited load capacity for large-sized concrete structures and poor high temperature resistance with potential deformation in high-temperature areas.
What is the payment method you require?
Payment ≤1,000 USD: 100% in advance. Payment ≥10,000 USD: 30% T/T in advance, balance before shipment. Or L/C.
Payment ≤1,000 USD: 100% in advance. Payment ≥10,000 USD: 30% T/T in advance, balance before shipment. Or L/C.
