5.12kWh Wall-Mounted Residential Energy Storage Battery | CBLV 5120-C
CBLV 5120-C is a 51.2V 100Ah wall-mounted LiFePO4 battery designed for residential solar energy storage systems.
With 5.12kWh usable energy capacity, slim wall-mounted installation, CAN/RS485 communication and expandable storage up to 20.48kWh, it is ideal for apartments, villas, balcony PV systems and small off-grid homes.
| Item | Parameter |
|---|---|
| Model | CBLV 5120-C |
| Nominal Energy | 5.12kWh |
| Cell Chemistry | LiFePO4 (LFP) |
| Structure | 1P16S |
| Nominal Voltage | 51.2V |
| Operating Voltage Range | 44.8V–57.6V |
| Rated Charge/Discharge Current | 50A |
| Max Continuous Charge/Discharge Current | 100A |
| Parallel Quantity | Up to 4 units |
| Protection Class | IP20 (Indoor Only) |
| Dimension (WHD) | 500*440*167 mm |
| Net Weight | 44kg |
| Discharge Temp Range | -20℃ ~ 60℃ |
| Charge Temp Range | 0℃ ~ 55℃ |
| Storage Recommended Temp | 10℃–35℃ |
| Humidity | 5%–95% RH |
| Altitude | ≤4000m (Derate above 2000m) |
| Communication Port | CAN / RS485 / WIFI |
| Safety Protection | Overcharge, overdischarge, overcurrent, short circuit, over temperature |
| Certifications | UN38.3, IEC 62619, CE |
| Mounting Method | Wall-mounted with matched expansion bracket |
- 5.12kWh residential energy storage
- Space-saving wall-mounted design
- Supports up to 4 batteries in parallel
- Compatible with most 48V hybrid inverters
- Remote monitoring via WIFI
- LiFePO4 chemistry for long service life
- Suitable for solar self-consumption and backup power
Space-Saving Wall-Mounted Design
Unlike stackable floor batteries, CBLV 5120-C utilizes vertical wall space, making it ideal for apartments and compact utility rooms.
Flexible Capacity Expansion
Start with a single 5.12kWh battery and expand up to 20.48kWh as energy demand grows.
Fast Installation
Supplied with dedicated wall-mounting accessories, enabling quick deployment and reduced installation labor costs.
Smart Monitoring
Integrated WIFI communication allows users to monitor battery status, energy flow and system performance remotely.
Reliable LiFePO4 Technology
LiFePO4 chemistry offers enhanced thermal stability, safety and long service life compared with conventional lead-acid batteries.

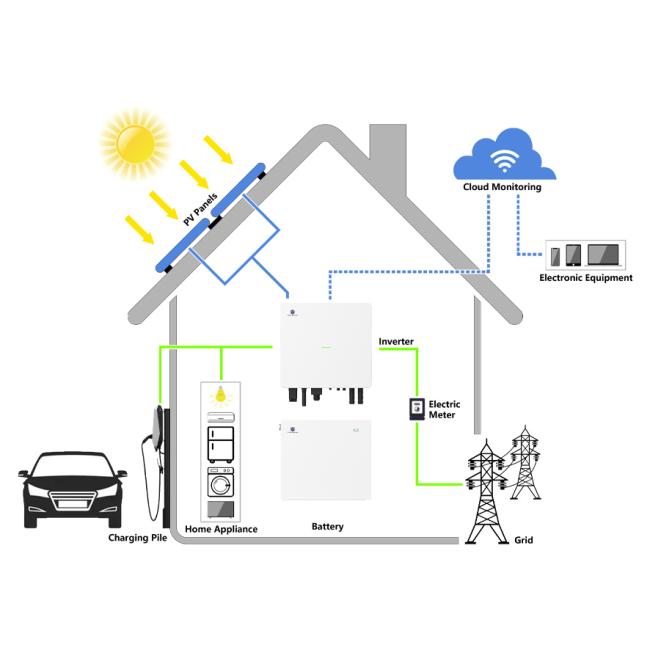

Apartment Solar Energy Storage
Store excess solar energy generated during the day and use it at night to increase self-consumption.
Balcony Solar Systems
Ideal for European balcony PV projects where installation space is limited.
Residential Backup Power
Provides emergency power for lighting, routers, refrigerators and security systems.
Small Off-Grid Homes
Supports remote residences that require stable daily energy storage.
Energy Cost Reduction
Store low-cost electricity during off-peak hours and use it during peak-rate periods.
Choose CBLV 5120-C if you need:
✅ Wall-mounted installation
✅ Limited installation space
✅ 5–20kWh expandable storage
✅ Residential solar energy storage
✅ Lightweight battery for easier installation
Camel Energy provides flexible OEM and ODM services for residential energy storage distributors, solar installers and energy storage brands.
Available customization options include:
- Private label branding
- Customized housing color
- User manual localization
- Communication protocol adaptation
- Packaging customization
- Regional certification support
Q1: Can CBLV 5120-C be installed outdoor?
A: No. Its IP20 protection grade only supports dry indoor installation; avoid rain, snow and direct sunlight exposure.
Q2: How many batteries can be connected in parallel?
A: Max 4 units parallel, total capacity up to 20.48kWh to meet large family power demand.
Q3: What’s the maintenance cycle for long storage?
A: Need supplementary charge every 6 months. If stored above 45°C, recharge within 7 days when SOC drops to 0%; below 35°C within 30 days.
Q4: Is the battery compatible with other brand inverters besides Camel ALSES?
A: Yes, CAN/RS485 universal communication interface supports most mainstream low-voltage hybrid inverters on the market.
