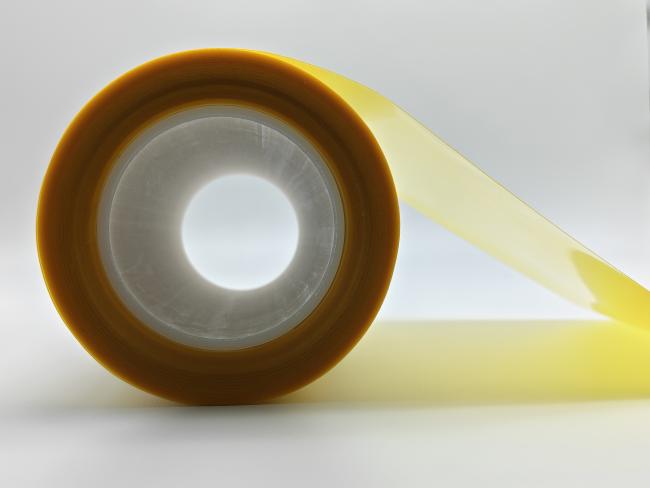

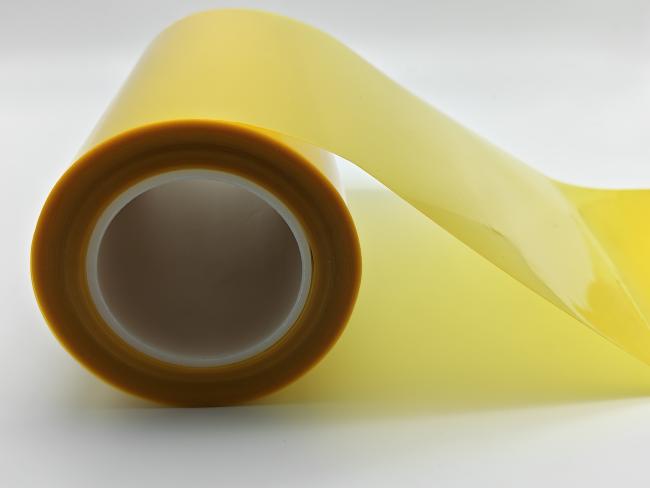

Yellow PET Tape with Residue-Free Removal for High-Temperature Applications
TX2530YR+6 is a 60µm high-temperature yellow bonding tape with PET backing and silicone adhesive. It features strong initial adhesion, reusability, and residue-free peeling, enduring 180°C for 30 minutes, ideal for electronic panel protection and industrial masking.
- Surface protection for LCD and PDA panels during manufacturing and assembly
- Masking for shell spray coating and surface finishing processes
- High-temperature bonding and fixing of silicone rubber components
- Temporary protection of electronic components in high-heat procedures
- Adhesion and masking in automotive electronic part production
- Precision bonding for optical device components and lens protection
| Item | Specification | Standard |
|---|---|---|
| Total Thickness | 60±10µm | GB/T7125-2014 |
| Dry Coating Thickness | 30±10µm | GB/T7125-2014 |
| Adhesion Strength | 400–600g/25mm (180° peel) | GB-T2792-2014 |
| Temperature Resistance | 180°C for 30 minutes | Oven test |
| Backing Material | PET (Polyester) film | Visual & Physical Test |
| Adhesive Type | Silicone adhesive | - |
| Release Liner | PET fluorine film | - |
| Color | Yellow | Visual inspection |
Sanfeng Win New Material (Jiangsu) Co., Ltd. (Sanfeng Win), founded in 2010, is a private enterprise integrating R&D, production, and sales of adhesive products. With industry-leading coating technology and a professional R&D team, we specialize in high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, and backsheets. Our products are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, and photovoltaic industries. Equipped with precision coating equipment, a high-purification clean workshop, and a multi-functional composite precision coating production line, we provide customers with R&D, design solutions, and market application feedback, enabling independent mass production services to ensure product quality.
- What is the total thickness of TX2530YR+6 tape?
It is 60±10µm, in compliance with GB/T7125-2014. - How high a temperature can this tape withstand?
It resists 180°C for 30 minutes, tested via oven method. - What is the dry coating thickness of the adhesive?
The dry coating thickness is 30±10µm (GB/T7125-2014). - What is the adhesion strength of TX2530YR+6?
400–600g/25mm (180° peel), per GB-T2792-2014. - Does this tape leave adhesive residue after removal?
No, it is designed for clean, residue-free peeling. - What materials make up the structure of this tape?
It consists of PET film (top), silicone adhesive (middle), and PET fluorine film liner (bottom).
