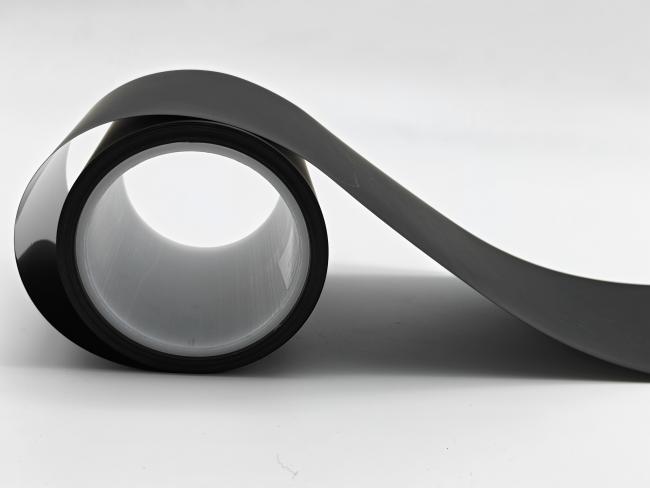

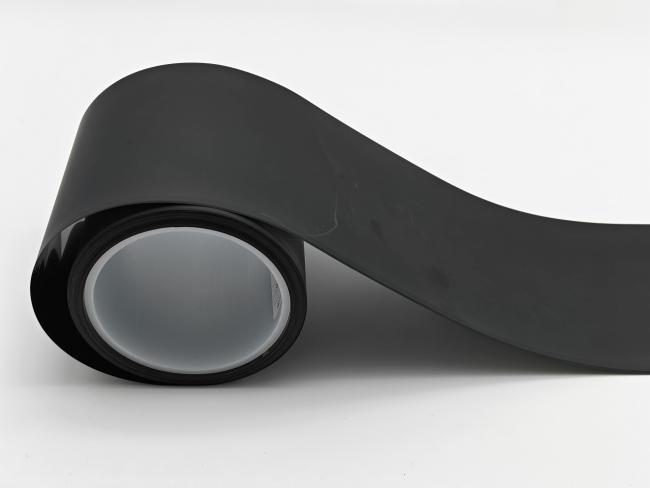

Matte Black PET Tape with 100μm Thickness and Acrylic Adhesive for High-Precision Lamination
DTTA100BW is a 100μm black grid single-sided tape with PET substrate. It features high surface tension, excellent deaeration properties, and strong adhesion. Ideal for high-precision lamination in electronics and home appliances.
- High-precision lamination of metal, plastic, and ABS surfaces
- Mobile phone and home appliance component bonding
- Display panel frame fixing and sealing
- 3C electronic structure assembly and reinforcement
- Special surface bonding for PMMA/PVC materials
- Precision component attachment and positioning
| Item | Specification | Standard |
|---|---|---|
| Total Thickness | 100±10μm | ASTM D3652 |
| Substrate Thickness | 50±5μm | ASTM D3652 |
| Adhesive Thickness | 45±5μm | ASTM D3652 |
| Steel Peel Strength | ≥700g/25mm | ASTM D3330 |
| Surface Resistance | 1.0*10⁸Ω/sq | ASTM D257 |
| Gloss (60°) | 0.0±1.0GU | ASTM D523 |
Sanfeng Win New Material (Jiangsu) Co., Ltd. (hereinafter referred to as Sanfeng Win) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.
To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.
The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.
It uses PET (polyester) film with a black grid adhesive layer.

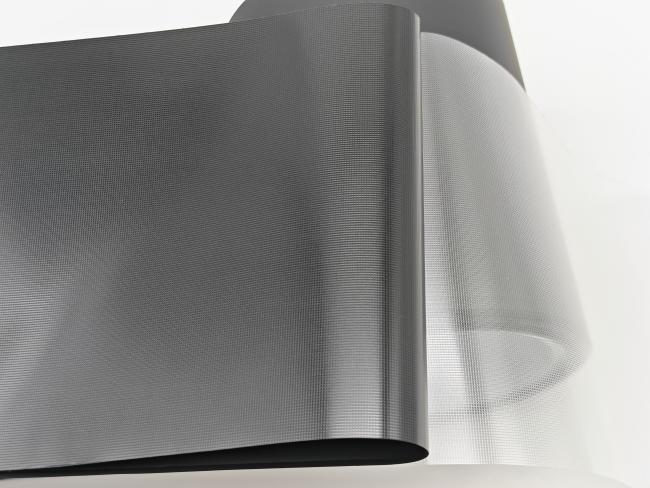

The grid design offers excellent deaeration properties, preventing bubbles during lamination.
It has high surface tension, ensuring strong adhesion and stable bonding for precision applications.
Yes, it is widely used for bonding components in mobile phones and home appliances.
The 180° peel strength is at least 700g/25mm.
Yes, we support custom widths up to 1000mm and various die-cut shapes.
