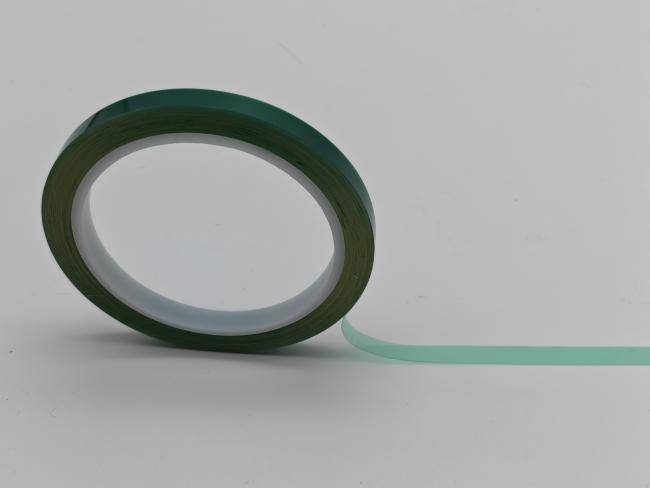

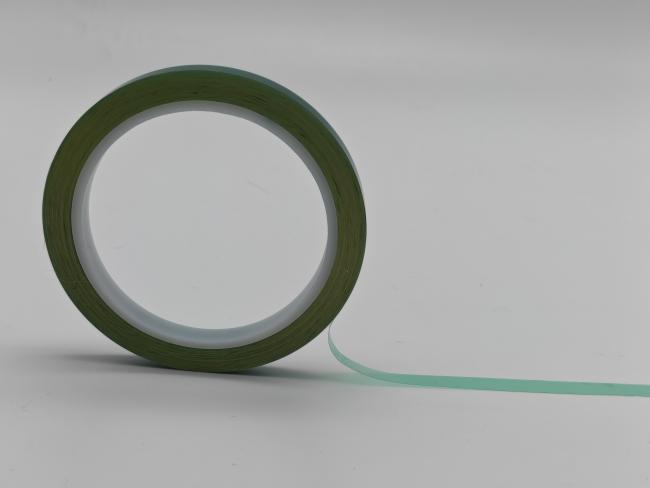

Green PET Silicone Tape with 50µm Thickness for Residue-Free Removal
TX3515RJ+6 is a 50μm high-temperature resistant green anti-static lamination tape with silicone adhesive. It offers strong initial adhesion, residue-free re-peelability, 180°C heat resistance, and anti-static properties, ideal for electronic component protection and masking.
- LCD and PDA panel glass surface protection
- Housing painting masking in high-temperature processes
- Silicone rubber material bonding and lamination
- Anti-static protection for precision electronic components
- PCB solder masking during reflow and wave soldering
- High-temperature insulation for automotive electronic parts
| Item | Specification | Standard |
|---|---|---|
| Total Thickness | 50±5μm | GB/T7125-2014 |
| Dry Coating Thickness | 12±5μm | GB/T7125-2014 |
| Adhesion Strength | 400-600g/25mm (180°) | GB/T2792-2014 |
| Temperature Resistance | 180°C/30mins | Oven Test |
| Anti-Static Property | Anti-static PET backing | - |
| Test Conditions | 23±1℃, 50±5%RH, steel plate, 300mm/min | - |
Sanfeng Win New Material (Jiangsu) Co., Ltd. (Sanfeng Win), founded in 2010, is a private enterprise integrating R&D, production, and sales of adhesive products. With industry-leading coating technology and a professional R&D team, we specialize in high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, and backsheets. Our products are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, and photovoltaic industries. Equipped with precision coating equipment, a high-purification clean workshop, and a multi-functional composite precision coating production line, we provide customers with R&D, design solutions, and market application feedback, enabling independent mass production services to ensure product quality.
1.What is the core structure of this tape?
It consists of anti-static PET backing, silicone adhesive, and PET fluoroplastic film.
2.What is the maximum temperature resistance?
It can withstand 180°C for 30 minutes, suitable for high-temperature electronic processes.
3.Does it leave residue after peeling?
No, it can be repeatedly peeled without leaving residue on the surface.
4.What is the adhesion strength range?
The 180° peel strength is 400-600g/25mm, ensuring stable bonding.
5.Does it have anti-static properties?
Yes, the PET backing is anti-static, protecting sensitive electronic components from static damage.
6.Is it suitable for silicone rubber bonding?
Yes, it is specially designed for bonding silicone rubber materials with reliable adhesion.
