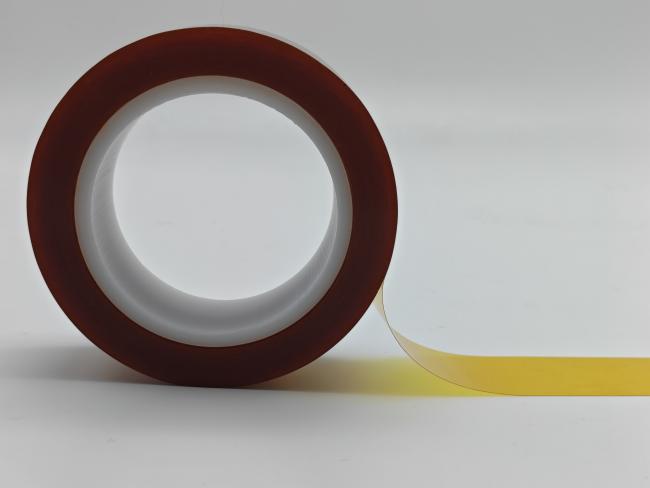

80µm Thickness Double-sided PET Tape with Residue-Free Removal and Heat Resistant
SP-PX80-36 is a high-temperature double-sided imitation PI tape with PET/anti-PI backing and silicone adhesive. It offers excellent initial tack, residue-free re-peelability, 180°C heat resistance, and good insulation, ideal for electronic protection and bonding.
- LCD panel and PDA glass surface protection
- High-temperature housing painting masking
- Silicone rubber material bonding and lamination
- Electronic component insulation and thermal shielding
- PCB solder masking during reflow soldering
- Double-sided fixation of imitation gold finger and precision electronic parts
| Item | Specification | Standard |
|---|---|---|
| Total Thickness | 0.08±0.005 mm | GB/T7125-2014 |
| Dry Coating Thickness | 0.044±0.005 mm | GB/T7125-2014 |
| Adhesion Strength | Side A: 800g↑; Side B: 800g↑ | GB-T2792-1998 |
| Tensile Strength | MD≥180MPa; TD≥160MPa | ASTM D-882 |
| Elongation | ≥35% | GB-13950-1992 |
| Temperature Resistance | 180°C/30mins | Oven Test |
| Size | 500mm±0.5mm (Width); 33m-100m±0.5% (Length) | National Standard Tape Measure |
| Structure | 36μm Double-sided PET Fluoroplastic Release Film + Silicone + 36μm Anti-PI Film + Silicone | - |
| Test Conditions | 18-25℃, 55±20%RH, steel plate, 300mm/min, 180°&90° peel | - |
Sanfeng Win New Material (Jiangsu) Co., Ltd. (Sanfeng Win), founded in 2010, is a private enterprise integrating R&D, production, and sales of adhesive products. With industry-leading coating technology and a professional R&D team, we specialize in high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, and backsheets. Our products are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, and photovoltaic industries. Equipped with precision coating equipment, a high-purification clean workshop, and a multi-functional composite precision coating production line, we provide customers with R&D, design solutions, and market application feedback, enabling independent mass production services to ensure product quality.
- What is the structure of this double-sided tape?
It consists of acrylic adhesive, PET core, silicone adhesive, and double-sided PET fluoroplastic release film. - What is the maximum temperature resistance?
It can withstand 180°C for 30 minutes, suitable for high-temperature processes. - Does it leave residue after peeling?
No, it can be repeatedly peeled without leaving residue on the surface. - What is the adhesion strength of each side?
Both A and B sides have peel strength over 1000g/25mm, ensuring stable double-sided bonding. - Is it suitable for electronic insulation?
Yes, it provides good electrical insulation for electronic components and PCBs. - Can it be used for silicone rubber bonding?
Yes, it is specially designed for bonding silicone rubber materials.
