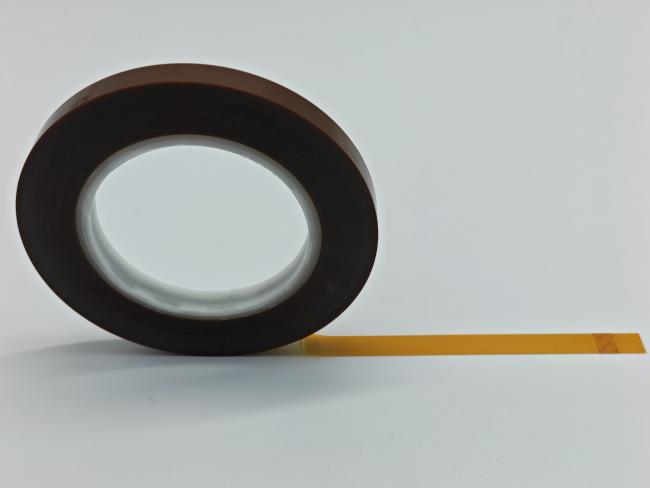

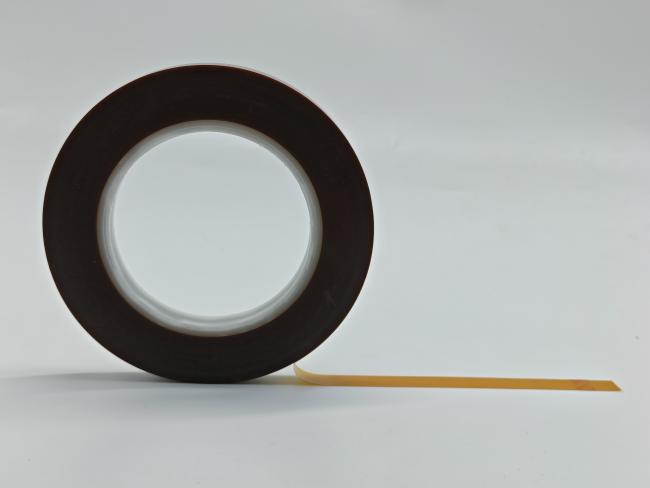

100 Micron Thickness Tape Polyimide With 260C Heat Resistance Residue Free Peeling
KX7525 is a high-temperature Kapton silicone tape with excellent adhesion, alcohol/acid/alkali resistance, residue-free re-peeling, low electrolysis, and friction resistance. It withstands 260℃ for 30 minutes, ideal for insulation and high-temperature protection.
- Insulation wrapping for magnet wires and cables
- Slot insulation for electrical motors and appliances
- High-temperature and solder-proof masking protection
- Bundling and fixing of mobile phone lithium batteries
- High-temperature shielding in electronic manufacturing
- Repetitive high-temperature bonding without residue
| Item | Specification | Standard |
|---|---|---|
| Total Thickness | 0.100±0.005 mm | GB/T7125-2014 |
| Dry Coating Thickness | 0.025±0.005 mm | GB/T7125-2014 |
| Adhesion Strength | 600±200 g | GB/T2792-1998 |
| Tensile Strength | MD≥160MPa; TD≥130MPa | ASTM D-882 |
| Elongation | MD≥60%; TD≥80% | GB/T13950-1992 |
| Temperature Resistance | 260℃/30min | Oven test |
| Width*Length | 500mm±0.5mm; 33–100m | Tape measure |
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (hereinafter referred to as Sanfeng Win) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.
To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.
The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.
- What is the max working temperature?
It withstands 260℃ for 30 minutes.
- Will it leave residue after peeling?
No, it is residue-free and re-peelable.
- What is the storage condition?
Store at 18–25℃, humidity 40–70%, avoid sunlight.
- How long is the shelf life?
Shelf life is 6 months under proper storage.
- Is it resistant to acid, alkali and alcohol?
Yes, it has good resistance to acid, alkali and alcohol.
- What is the standard width?
Standard width is 500mm±0.5mm.
